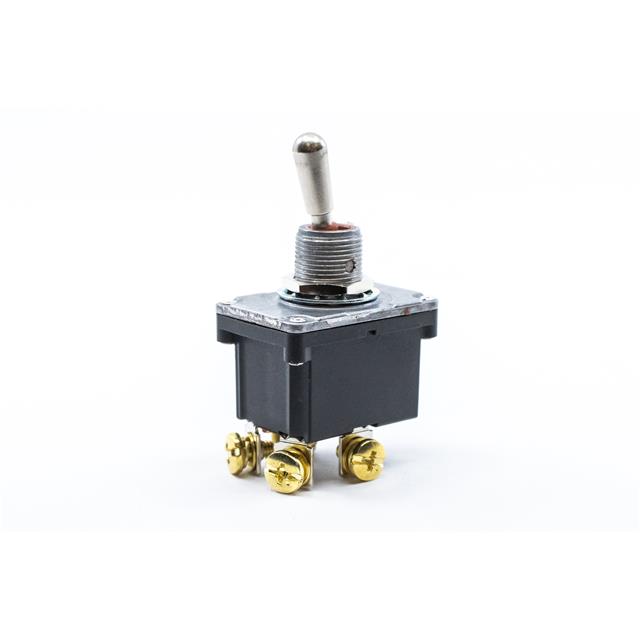

ST4DP Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TOGGLE DPDT 16A 125V
| Part | Electrical Life | Voltage Rating - DC | Bushing Thread | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Switch Function | Current Rating (Amps) | Termination Style | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Circuit | Ingress Protection | Mounting Type | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | 30 V | 15/32-32 | 125 V | 12 mm | Off-Mom | 16 A | Screw Terminal | 17 mm | 55 °C | -10 °C | Standard Round | DPDT | IP68 - Dust Tight Waterproof | Panel Mount | Non-Illuminated |
 E-Switch | 10000 Cycles | 30 V | 15/32-32 | 125 V | 12 mm | Off-Mom | 16 A | Screw Terminal | 17 mm | 55 °C | -10 °C | Standard Round | DPST-NO | IP68 - Dust Tight Waterproof | Panel Mount | Non-Illuminated |
