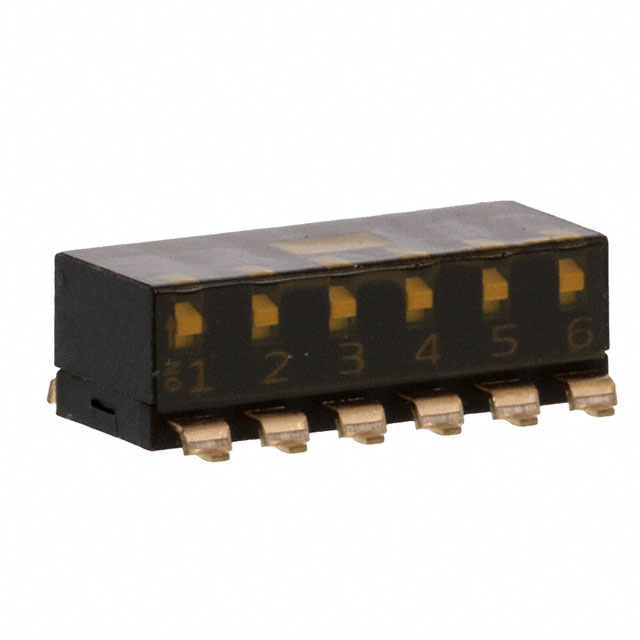

EDSP06 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH: DIP-SWITCH; POLES NUMBER: 6; OFF-ON; 0.025A/24VDC; POS: 2
| Part | Electrical Life | Body Material | Length | Length | Mechanical Life | Pitch | Pitch | Actuator Level | Actuator Type | Current Rating (Amps) | Height Above Board | Height Above Board | Mounting Type | Circuit | Number of Positions | Washable | Contact Finish | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2000 Steps | Polyamide (PA) Nylon | 15.14 mm | 0.596 in | 2000 Cycles | 2.54 mm | 0.1 " | Flush Recessed | Piano | 25 mA | 5 mm | 0.197 in | Right Angle Surface Mount | SPST | 6 | Gold | 24 VDC | 85 °C | -20 ░C | Gull Wing | Copper Alloy | |
TE Connectivity AMP Connectors | 2000 Steps | Polyamide (PA) Nylon | 15.14 mm | 0.596 in | 2000 Cycles | 2.54 mm | 0.1 " | Flush Recessed | Piano | 25 mA | 5 mm | 0.197 in | Right Angle Surface Mount | SPST | 6 | Gold | 24 VDC | 85 °C | -20 ░C | Gull Wing | Copper Alloy |
