307-033 Series
Manufacturer: EDAC Inc.
Beta
⌘K

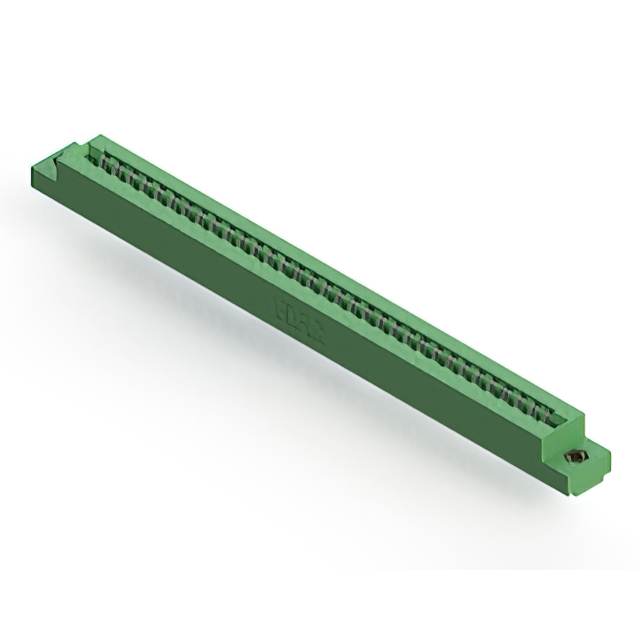

CONN EDGE DUAL FMALE 66POS 0.156
| Part | Material - Insulation | Termination Rows | Number of Rows [custom] | Number of Positions | Gender | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions/Bay/Row | Contact Type | Read Out | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Card Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Number of Positions [custom] | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 2 | 66 | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Green | Copper Alloy | -40 C | 105 ░C | Right Angle Through Hole | 33 | Semi Bellows | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Dual Edge | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Solder | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Green | Copper Alloy | -40 C | 105 ░C | Right Angle Through Hole | 33 | Semi Bellows | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | Solder | 33 | 1 | |||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Green | Copper Alloy | -40 C | 105 ░C | Through Hole | 33 | Semi Bellows | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Non Specified - Single Edge | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Solder | 33 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Green | Copper Alloy | -40 C | 105 ░C | Through Hole | 33 | Semi Bellows | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Non Specified - Single Edge | Wire Wrap | 33 | 1 | ||||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 2 | 66 | Female | 3.96 mm | 0.156 in | Green | Copper Alloy | -40 C | 105 ░C | Right Angle Through Hole | 33 | Semi Bellows | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Non Specified - Dual Edge | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Solder | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Green | Copper Alloy | -40 C | 105 ░C | Through Hole | 33 | Semi Bellows | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 33 | 1 | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Green | Copper Alloy | -40 C | 105 ░C | Through Hole | 33 | Semi Bellows | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | 33 | 1 | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Green | Copper Alloy | -40 C | 105 ░C | Through Hole | 33 | Semi Bellows | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 33 | 1 | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 3.96 mm | 0.156 in | Green | Copper Alloy | -40 C | 105 ░C | Through Hole | 33 | Semi Bellows | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | 33 | 1 | Card Guides | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 2 | 66 | Female | 3.96 mm | 0.156 in | Green | Copper Alloy | -40 C | 105 ░C | Right Angle Through Hole | 33 | Semi Bellows | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Tin | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Card Guides |
