C14610R024 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

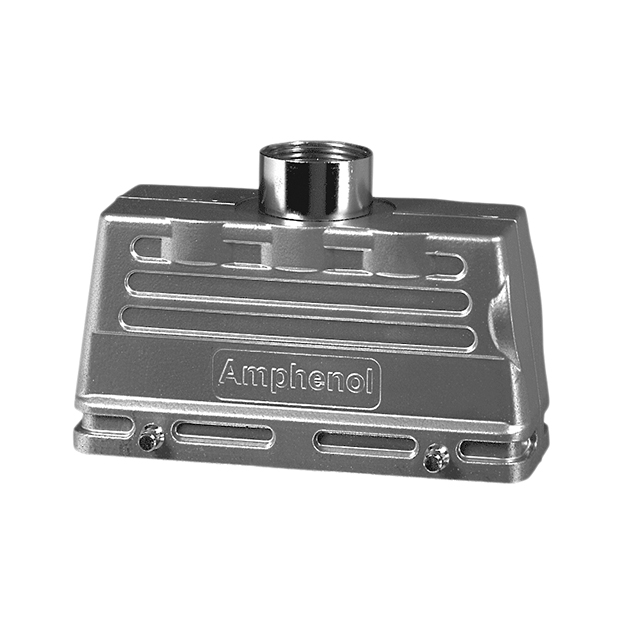

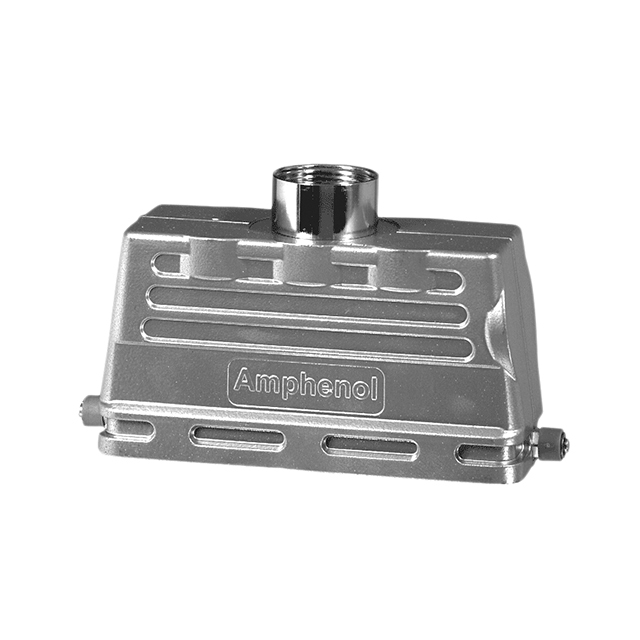

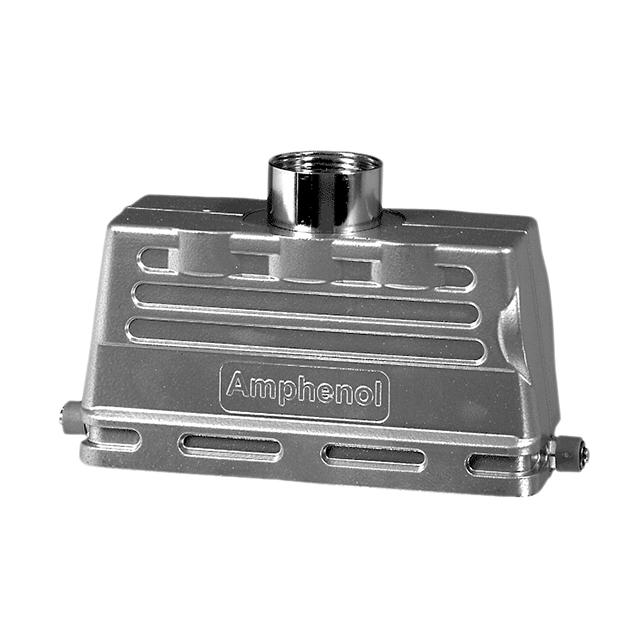

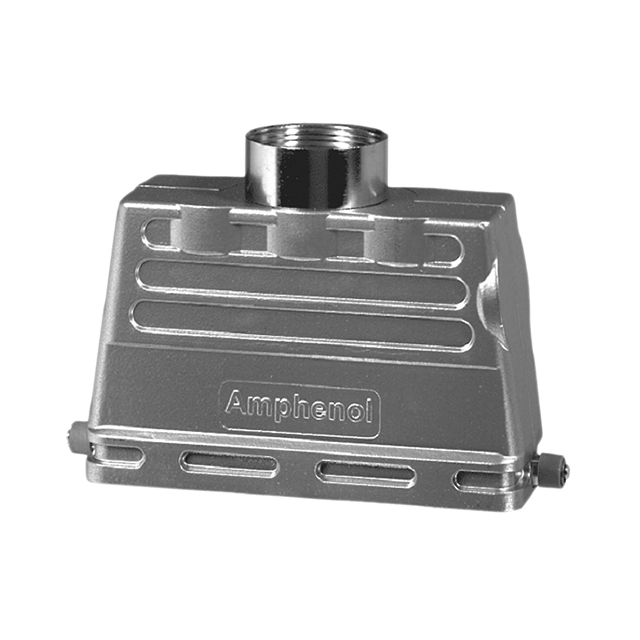

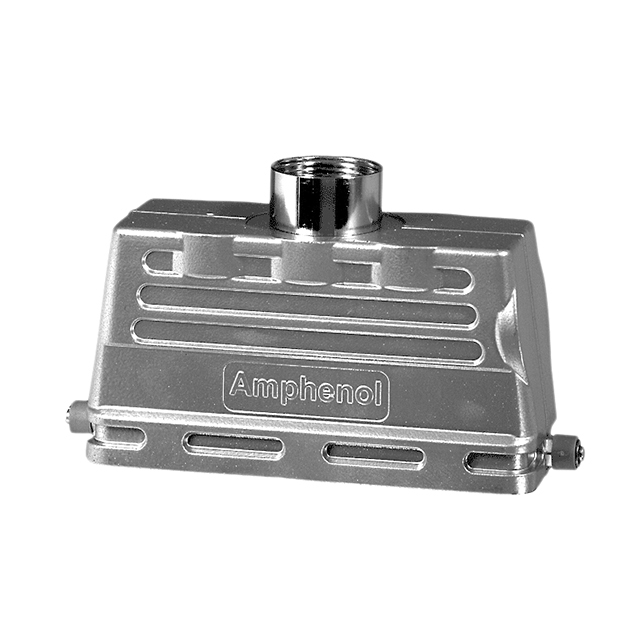

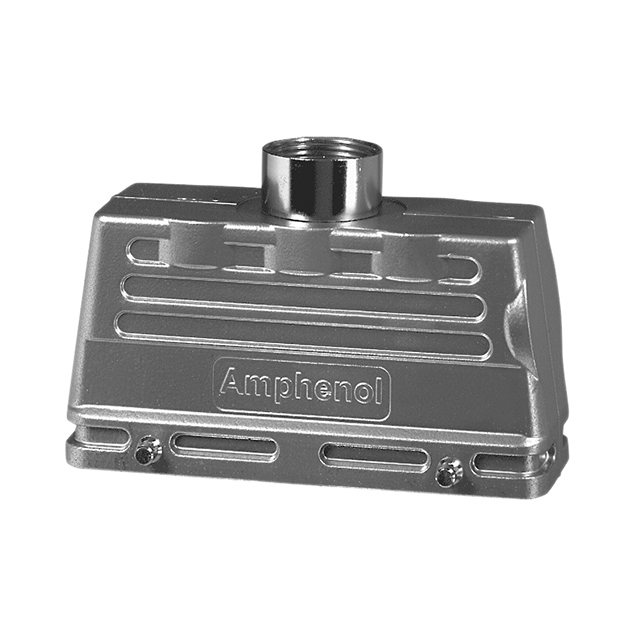

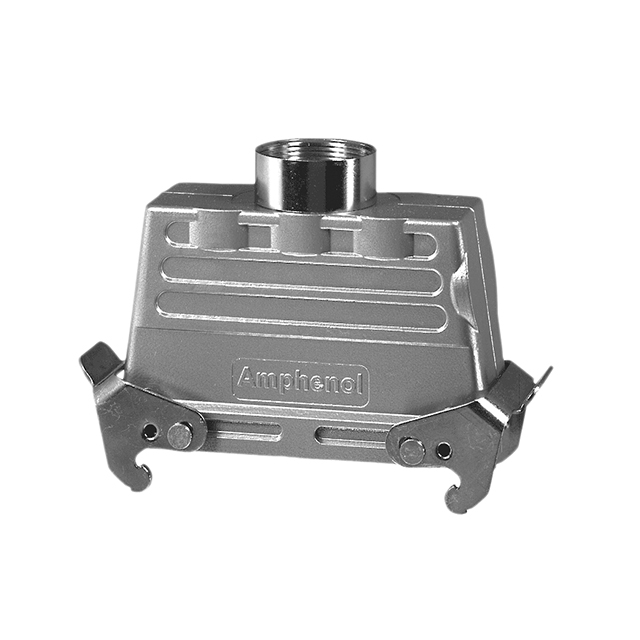

CONN HOOD TOP ENTRY SZE24 M40

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size	Housing Material	Style	Operating Temperature [Min]	Operating Temperature [Max]	Lock Location	Connector Type	Ingress Protection	Thread Size	Features

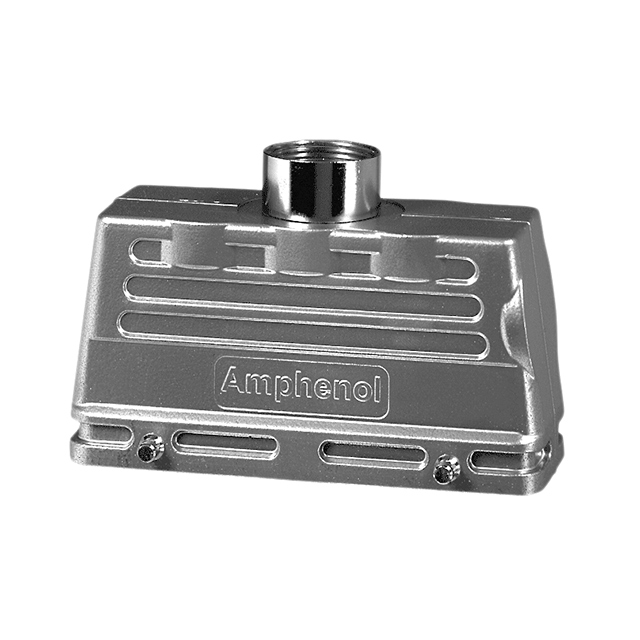

Amphenol Tuchel Industrial C14610R0246038	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	E24	Aluminum Die Cast	Top Entry	-40 C	100 °C	Locking Clip (2) on Hood	Hood	IP65 - Dust Tight Water Resistant
Amphenol Tuchel Industrial C14610R0246508	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	E24	Aluminum Die Cast	Top Entry	-40 C	100 °C	Locking Clip (2) on Base Bottom	Hood	IP65 - Dust Tight Water Resistant	M25

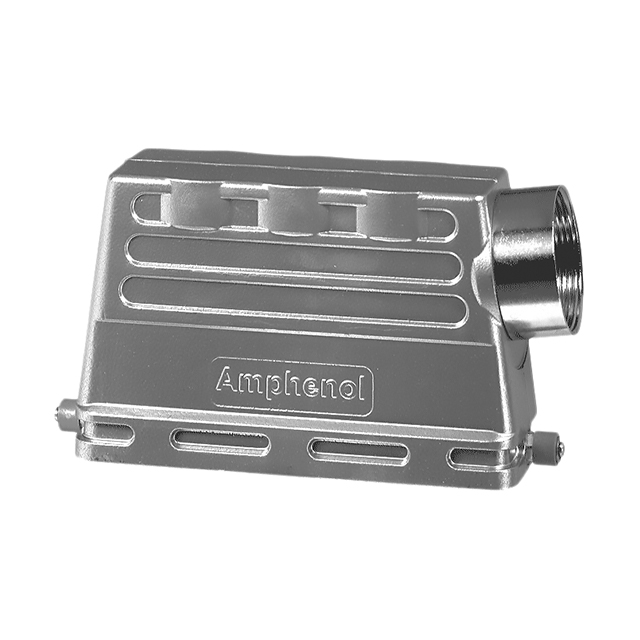

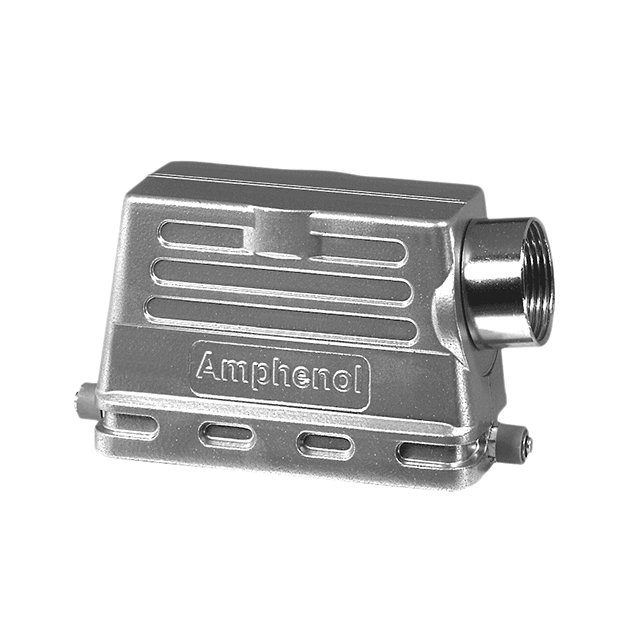

Amphenol Tuchel Industrial C14610R0245061	43 mm	62 mm	2.441 "	120 mm	4.724 in	1.693 "	E24	Aluminum Alloy Die Cast	Side Entry	-40 C	100 °C	Locking Clip (1) on Base Bottom	Hood	IP65 - Dust Tight Water Resistant	M32
Amphenol Tuchel Industrial C14610R0246068	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	E24	Aluminum Die Cast	Top Entry	-40 C	100 °C	Locking Clip (1) on Base Bottom	Hood	IP65 - Dust Tight Water Resistant	M32
Amphenol Tuchel Industrial C14610R0245568	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	E24	Aluminum Die Cast	Side Entry	-40 C	100 °C	Locking Clip (1) on Base Bottom	Hood	IP65 - Dust Tight Water Resistant	M25
Amphenol Tuchel Industrial C14610R0246008	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	E24	Aluminum Die Cast	Top Entry	-40 C	100 °C	Locking Clip (2) on Base Bottom	Hood	IP65 - Dust Tight Water Resistant	M32
Amphenol Tuchel Industrial C14610R0248523							E16	Aluminum Alloy Die Cast	Bottom Entry Top or Bottom Entry	-40 C	100 °C	Locking Clip (2) on Hood Top	Hood - Coupling	IP65 - Dust Tight Water Resistant	M25	Cable to Cable
Amphenol Tuchel Industrial C14610R0246001	43 mm	62 mm	2.441 "	120 mm	4.724 in	1.693 "	E24	Aluminum Alloy Die Cast	Top Entry	-40 C	100 °C	Locking Clip (2) on Base Bottom	Hood	IP65 - Dust Tight Water Resistant	M32
Amphenol Tuchel Industrial C14610R0246568	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	E24	Aluminum Die Cast	Top Entry	-40 C	100 °C	Locking Clip (1) on Base Bottom	Hood	IP65 - Dust Tight Water Resistant	M25
Amphenol Tuchel Industrial C14610R0245018	43 mm	76 mm	2.992 in	120 mm	4.724 in	1.693 "	E24	Aluminum Die Cast	Side Entry	-40 C	100 °C	Locking Clip (2) on Base Bottom	Hood	IP65 - Dust Tight Water Resistant
