CAS-220 Series

Catalog

SLIDE SWITCH, DPDT, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Electrical Life	Actuator Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Circuit	Contact Finish	Termination Style	Actuator Level	Current Rating (Amps)	Features
Nidec Components Corporation CAS-220TA1	2000 Steps	Flush Slide (Standard)	Surface Mount	85 °C	-40 C	Copper Alloy	DPDT	Gold	J Lead	Flush	100 mA
Nidec Components Corporation CAS-220B	2000 Steps	Flush Slide (Standard)	Surface Mount	85 °C	-40 C	Copper Alloy	DPDT	Gold	Gull Wing	Flush	100 mA	Tape Seal
Nidec Components Corporation CAS-220A	2000 Steps	Flush Slide (Standard)	Surface Mount	85 °C	-40 C	Copper Alloy	DPDT	Gold	J Lead	Flush	100 mA	Tape Seal
Nidec Components Corporation CAS-220TB1	2000 Steps	Flush Slide (Standard)	Surface Mount	85 °C	-40 C	Copper Alloy	DPDT	Gold	Gull Wing	Flush	100 mA
Nidec Components Corporation CAS-220B1	2000 Steps	Flush Slide (Standard)	Surface Mount	85 °C	-40 C	Copper Alloy	DPDT	Gold	Gull Wing	Flush	100 mA

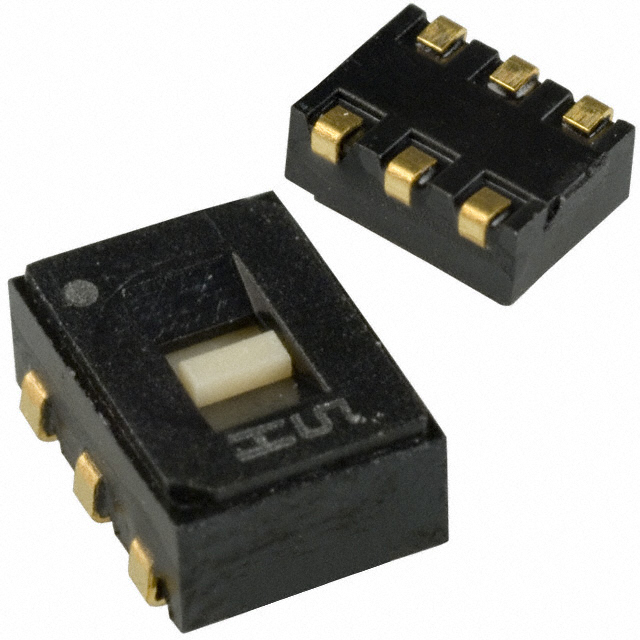

Nidec Components Corporation CAS-220TA	2000 Steps	Flush Slide (Standard)	Surface Mount	85 °C	-40 C	Copper Alloy	DPDT	Gold	J Lead	Flush	100 mA	Tape Seal
Nidec Components Corporation CAS-220A1	2000 Steps	Flush Slide (Standard)	Surface Mount	85 °C	-40 C	Copper Alloy	DPDT	Gold	J Lead	Flush	100 mA

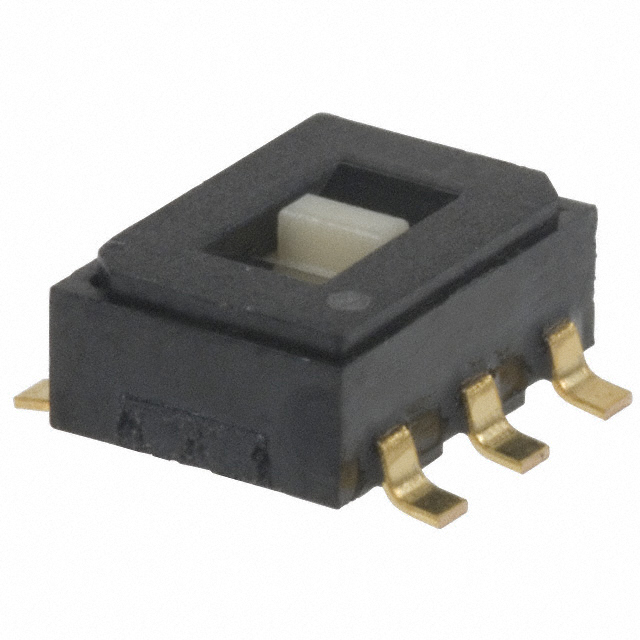

Nidec Components Corporation CAS-220TB	2000 Steps	Flush Slide (Standard)	Surface Mount	85 °C	-40 C	Copper Alloy	DPDT	Gold	Gull Wing	Flush	100 mA	Tape Seal
