073387 Series
Manufacturer: Molex
Beta
⌘K

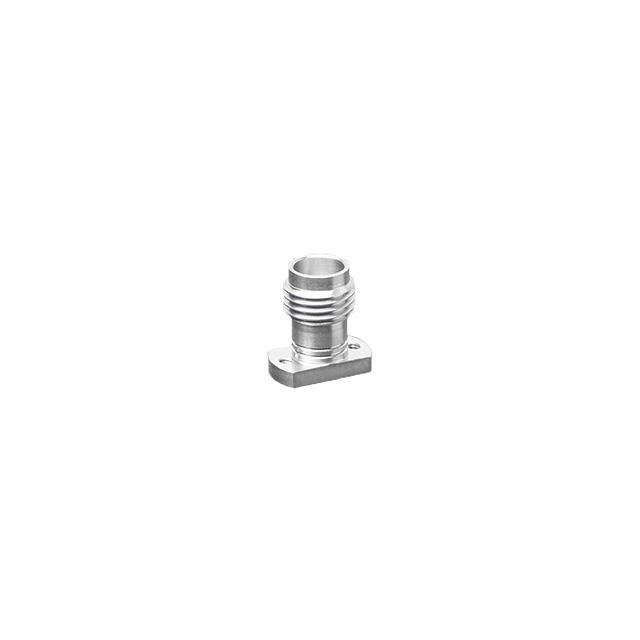

CONN 2.4MM JACK 50 OHM COMPRESS
| Part | Shield Termination | Center Contact Material | Mating Cycles | Connector Type | Frequency - Max [Max] | Connector Style | Connector Style | Connector Style | Mounting Feature | Housing Color | Dielectric Material | Mounting Type | Number of Ports | Center Contact Plating | Contact Termination | Voltage Rating | Impedance | Operating Temperature [Min] | Operating Temperature [Max] | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Screw | Beryllium Copper | 500 | Female Socket Jack | 50 GHz | OS-50 | 2.4 mm | APC-2.4 | Flange | Silver | Polytetrafluoroethylene (PTFE) | Surface Mount | 1 | Gold | Compression | 500 V | 50 Ohms | -65 ░C | 165 °C | Stainless Steel |
