SSR21H Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES DUAL 8300UH 10KHZ 1.5A 0.16OHM DCR THRU-HOLE

Part	Voltage Rating - DC	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Max) [Max]	Filter Type	Number of Lines	Height (Max) [z]	Height (Max) [z]	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max)

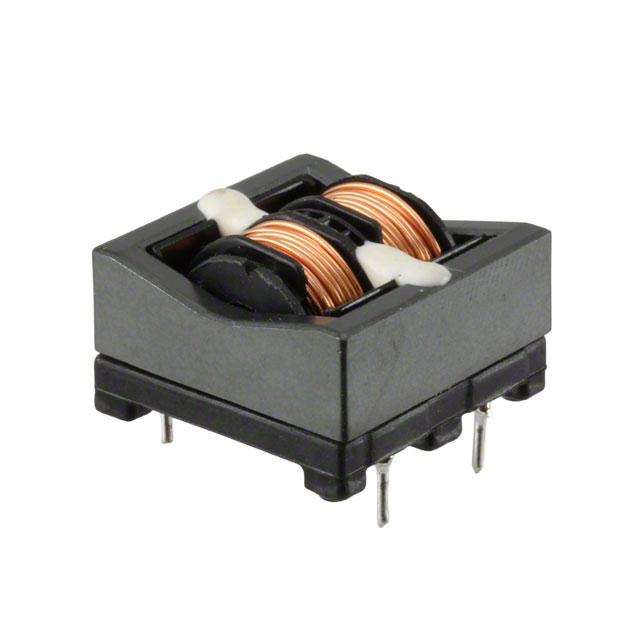

KEMET SSR21H-15083	250 V	Vertical 4 PC Pin	0.906 in	23 mm	0.906 in	23 mm	1.5 A	Power Line	2	0.571 in	14.5 mm	8.3 mH	160 mOhm	Through Hole	120 °C	-25 °C
KEMET SSR21H-12150	250 V	Vertical 4 PC Pin	0.906 in	23 mm	0.906 in	23 mm	1.2 A	Power Line	2	0.571 in	14.5 mm	10 kHz 15 mH		Through Hole	120 °C	-25 °C	320 mOhm
