LSS1-01 Series

Catalog

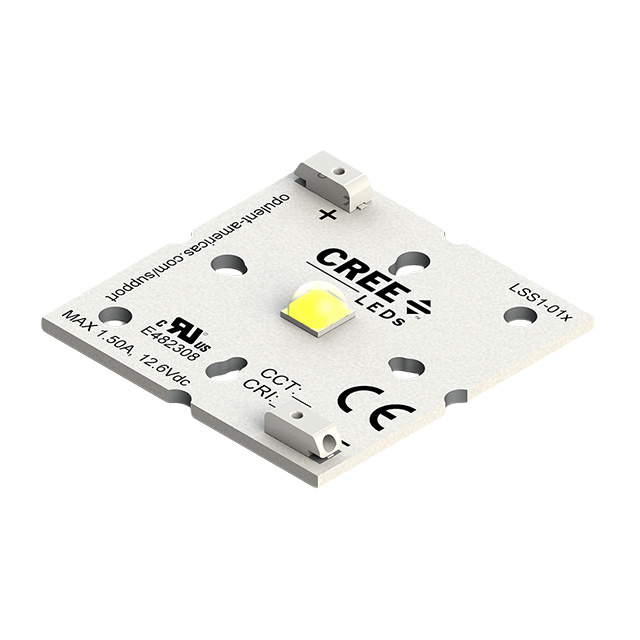

LED MOD XHP50.2 WM WHT SQ 3000K

Part	Lens Type	Lumens/Watt @ Current - Test	Type	Color	Luminous Flux @ Current/Temperature	Configuration	CRI (Color Rendering Index)	CCT (K)	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Temperature - Test	Height [z]
New Energy LSS1-01C22-3080-00	Domed	132 lm/W	LED Module	Warm White	1040 lm	Square	80	3000 K	5-Step MacAdam Ellipse	36.83 mm	36.83 mm	1.5 A	11.2 V	85 °C	1.52 mm
New Energy LSS1-01C22-5080-00	Domed	143 lm/W	LED Module	Cool White	1120 lm	Square	80	5000 K	5-Step MacAdam Ellipse	36.83 mm	36.83 mm	1.5 A	11.2 V	85 °C	1.52 mm
New Energy LSS1-01C22-5070-00	Domed	143 lm/W	LED Module	Cool White	1120 lm	Square	70	5000 K	5-Step MacAdam Ellipse	36.83 mm	36.83 mm	1.5 A	11.2 V	85 °C
New Energy LSS1-01C22-2790-00	Domed		LED Module	Warm White		Square	90	2700 K		36.83 mm	36.83 mm			85 °C
New Energy LSS1-01C22-3070-00	Domed	132 lm/W	LED Module	Warm White	1040 lm	Square	70	3000 K	5-Step MacAdam Ellipse	36.83 mm	36.83 mm	1.5 A	11.2 V	85 °C
New Energy LSS1-01C22-2780-00	Domed	115 lm/W	LED Module	Warm White	900 lm	Square	80	2700 K	3-Step MacAdam Ellipse	36.83 mm	36.83 mm	1.5 A	11.2 V	85 °C
New Energy LSS1-01C22-5780-00	Domed	143 lm/W	LED Module	Cool White	1120 lm	Square	80	5700 K		36.83 mm	36.83 mm	1.5 A	11.2 V	85 °C	1.52 mm
New Energy LSS1-01C22-4080-00	Domed	143 lm/W	LED Module	Neutral White	1120 lm	Square	80	4000 K		36.83 mm	36.83 mm	1.5 A	11.2 V	85 °C	1.52 mm
