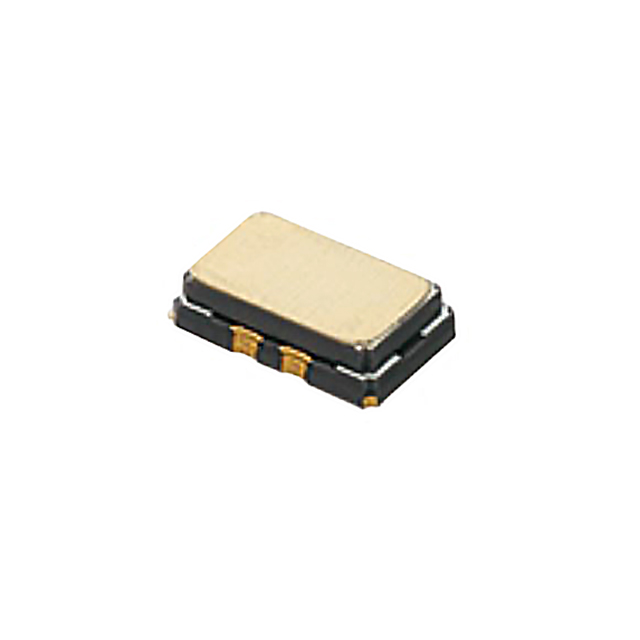

XNCLH Series

Catalog

XTAL OSC TCXO 19.2000MHZ SNWV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max)	Mounting Type	Base Resonator [custom]	Frequency	Type	Current - Supply (Max) [Max]	Voltage - Supply	Package / Case	Frequency Stability
Murata Electronics XNCLH19M200THJA1P0	85 °C	-40 C	Clipped Sine Wave	3.2 mm	0.126 in	5 mm	0.197 in	0.059 "	1.5 mm	Surface Mount	Crystal	19.2 MHz	TCXO	2 mA	3 V	8-SMD No Lead	200 ppb
Murata Electronics XNCLH24M576THJA1P0	85 °C	-40 C	Clipped Sine Wave	3.2 mm	0.126 in	5 mm	0.197 in	0.059 "	1.5 mm	Surface Mount	Crystal	24.576 MHz	TCXO	2.6 mA	3 V	8-SMD No Lead	200 ppb
Murata Electronics XNCLH26M000THJA2P0	85 °C	-40 C	Clipped Sine Wave	3.2 mm	0.126 in	5 mm	0.197 in	0.059 "	1.5 mm	Surface Mount	Crystal	26 MHz	TCXO	2.6 mA	3 V	8-SMD No Lead	200 ppb
Murata Electronics XNCLH40M000THJA1P0	85 °C	-40 C	Clipped Sine Wave	3.2 mm	0.126 in	5 mm	0.197 in	0.059 "	1.5 mm	Surface Mount	Crystal	40 MHz	TCXO	3 mA	3 V	8-SMD No Lead	200 ppb
Murata Electronics XNCLH20M000CHJA3P0	85 °C	-40 C	CMOS	3.2 mm	0.126 in	5 mm	0.197 in	0.059 "	1.5 mm	Surface Mount	Crystal	20 MHz	TCXO	3 mA	3.3 V	8-SMD No Lead	280 ppb
Murata Electronics XNCLH30M720THJA1P0	85 °C	-40 C	Clipped Sine Wave	3.2 mm	0.126 in	5 mm	0.197 in	0.059 "	1.5 mm	Surface Mount	Crystal	30.72 MHz	TCXO	2.6 mA	3 V	8-SMD No Lead	200 ppb
Murata Electronics XNCLH16M384THJA2P0	85 °C	-40 C	Clipped Sine Wave	3.2 mm	0.126 in	5 mm	0.197 in	0.059 "	1.5 mm	Surface Mount	Crystal	16.384 MHz	TCXO	2 mA	3 V	8-SMD No Lead	200 ppb
Murata Electronics XNCLH10M000THJA0P0	85 °C	-40 C	Clipped Sine Wave	3.2 mm	0.126 in	5 mm	0.197 in	0.059 "	1.5 mm	Surface Mount	Crystal	10 MHz	TCXO	2 mA	3 V	8-SMD No Lead	200 ppb
Murata Electronics XNCLH20M000THJA1P0	85 °C	-40 C	Clipped Sine Wave	3.2 mm	0.126 in	5 mm	0.197 in	0.059 "	1.5 mm	Surface Mount	Crystal	20 MHz	TCXO	2 mA	3 V	8-SMD No Lead	200 ppb
Murata Electronics XNCLH12M800THJA0P0	85 °C	-40 C	Clipped Sine Wave	3.2 mm	0.126 in	5 mm	0.197 in	0.059 "	1.5 mm	Surface Mount	Crystal	12.8 MHz	TCXO	2 mA	3 V	8-SMD No Lead	200 ppb
