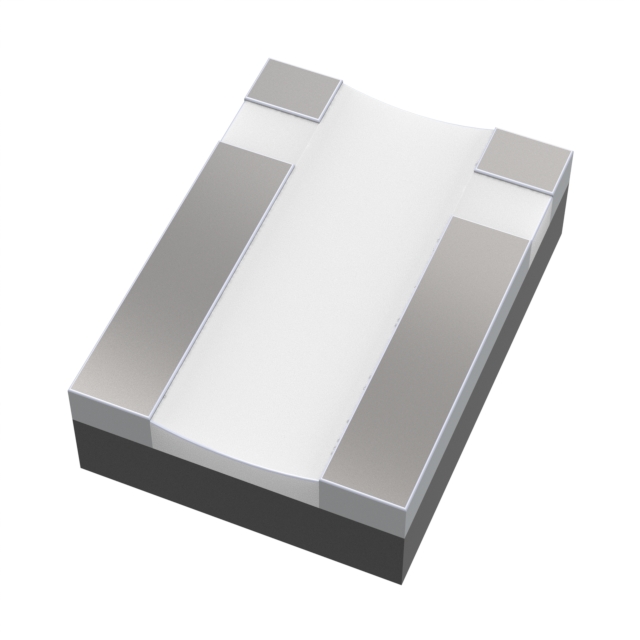

RLM0816T4F Series

Catalog

RES 0.003 OHM 1% 1/2W WIDE 0603

Part	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Number of Terminations	Tolerance	Features	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)
Delta Electronics/Cyntec RLM0816T4F-4-R003-FNH	0816	0.55 mm	0.022 in	150 ppm/°C	0.031 in	1.6 mm	0.8 mm	0.063 "	3 mOhms	4	1 %	Current Sense	0306 Wide 0603 (1608 Metric)	155 C	-55 C	0.5 W	0.5 W
Delta Electronics/Cyntec RLM0816T4F-4-R002-FNH	0816	0.55 mm	0.022 in	150 ppm/°C	0.031 in	1.6 mm	0.8 mm	0.063 "	2 mOhms	4	1 %	Current Sense	0306 Wide 0603 (1608 Metric)	155 C	-55 C	0.5 W	0.5 W
Delta Electronics/Cyntec RLM0816T4F-4-R001-FNH	0816	0.55 mm	0.022 in	150 ppm/°C	0.031 in	1.6 mm	0.8 mm	0.063 "	1 mOhms	4	1 %	Current Sense	0306 Wide 0603 (1608 Metric)	155 C	-55 C	0.5 W	0.5 W
Delta Electronics/Cyntec RLM0816T4F-4-R005-FNH	0816	0.55 mm	0.022 in	150 ppm/°C	0.031 in	1.6 mm	0.8 mm	0.063 "	5 mOhms	4	1 %	Current Sense	0306 Wide 0603 (1608 Metric)	155 C	-55 C	0.5 W	0.5 W
Delta Electronics/Cyntec RLM0816T4F-F-R003-FNH	0816	0.55 mm	0.022 in	100 ppm/°C	0.031 in	1.6 mm	0.8 mm	0.063 "	3 mOhms	4	1 %	Current Sense	0306 Wide 0603 (1608 Metric)	170 °C	-55 C	0.333 W	0.3333333333333333 W
