5643 Series

Manufacturer: BRADY

Catalog

B689 5643-I BLK/YEL STYLE I

Part	Color - Background	Color - Legend	Applications	Shape	Location	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Legend (Text)	Legend (Symbol Only)	Width	Width	Arrangement	Material - Body	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Mounting Type	Application Specifics	Features	Print Type	Language	Length	Length	Width [x]	Width [x]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Length [x]	Length [x]	Outside Pipe Diameter (Min) [Min]
BRADY 5643-I	Yellow	Black	Pipe	Rectangle	Outdoor	1.5 in	38.1 mm	Caustic	Directional Arrow	8 in	203.2 mm	Symbol and Text	Plastic	60.33 mm	2.375 in	Snap On	Directionality	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Pre-Printed	63000 A 69000 A	9 in	228.6 mm
BRADY 5643-O	Yellow	Black	Pipe	Rectangle	Outdoor			Caustic	Directional Arrow			Symbol and Text	Plastic	34.93 mm	1.375 in	Snap On	Directionality	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Pre-Printed	63000 A 69000 A	8 in	203.2 mm	127 mm	127 mm	0.5 in	12.7 mm

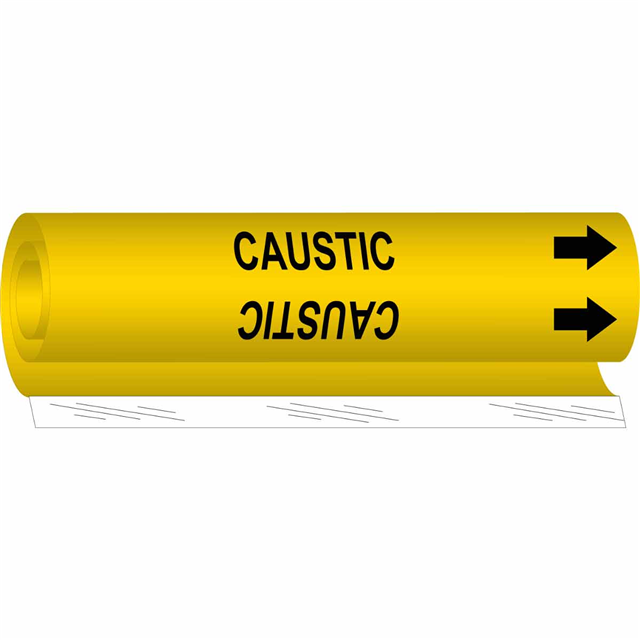

BRADY 5643-II	Yellow	Black	General	Rectangle	Outdoor			Caustic	No Symbol	12 in	304.8 mm	Text Only	Plastic		7.875 in		Notice	Chemical Resistant	Pre-Printed	63000 A 69000 A							63.5 mm	2.5 in	660.4 mm	26 in	200.03 mm
