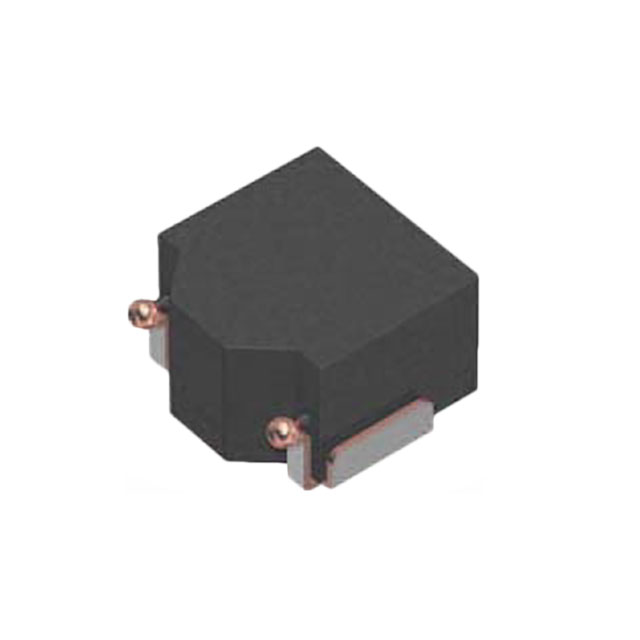

SPM5020T Series
Manufacturer: TDK Corporation
Beta
⌘K
FIXED IND 1.5UH 5.9A 0.0248OHM
| Part | Package / Case | Type | Inductance | DC Resistance (DCR) [Max] | Current Rating (Amps) | Mounting Type | Shielding | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Material - Core | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current - Saturation (Isat) | Inductance Frequency - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | Nonstandard | Drum Core Wirewound | 1.5 µH | 24.8 mOhm | 5.9 A | Surface Mount | Shielded | 0.079 in | 2 mm | -40 C | 105 ░C | Metal | 20 % | 0.201 " | 5.4 mm | 0.213 in | 5.1 mm | 9 A | 100 kHz |
TDK Corporation | Nonstandard | Drum Core Wirewound | 10 µH | 174.8 mOhm | 2.3 A | Surface Mount | Shielded | 0.079 in | 2 mm | -40 C | 105 ░C | Metal | 20 % | 0.201 " | 5.4 mm | 0.213 in | 5.1 mm | 3.4 A | 100 kHz |
