96572 Series

Manufacturer: Pflitsch

Catalog

CABLE FEEDTHROUGH 8.89-13.97MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Thread Size	Type	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Color	Panel Hole Size	Panel Hole Size	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max)	Includes

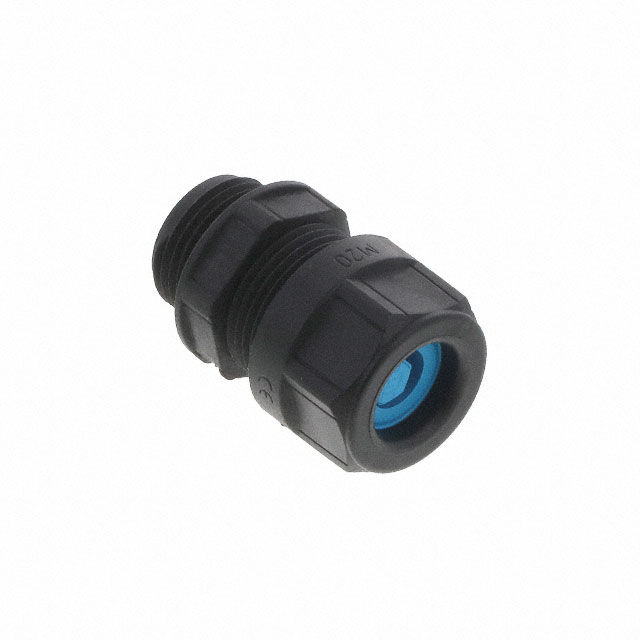

Pflitsch 96572.1	-20 ░C	100 °C	Polyamide (PA) Nylon	13.97 mm	0.55 in	0.26 in	6.6 mm	M20x1.5	Cable Feedthrough	8.89 mm	0.35 "	Black	20.1 mm	0.79 in	IP68 - Dust Tight Waterproof NEMA 4X
Pflitsch 96572.7/15	-60 °C	500 °C	Stainless Steel		0.551 in			M20x1.5	Cable Feedthrough			Silver	20 mm	0.787 in		0.197 in	5 mm	14 mm	Sealing Ring

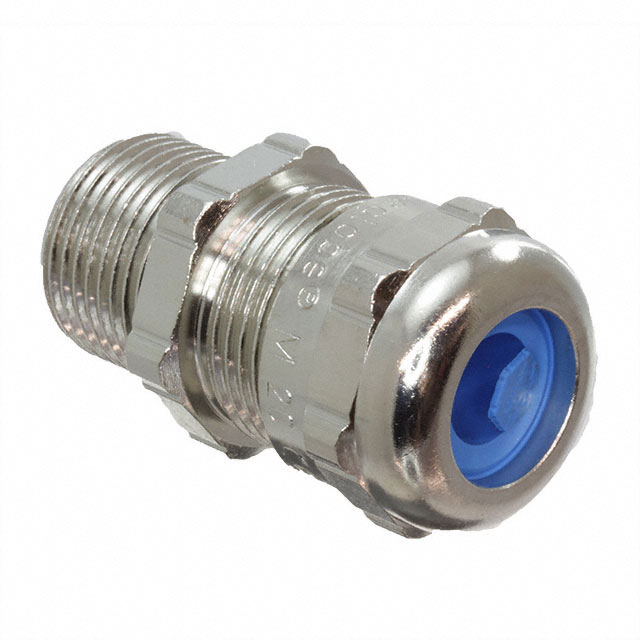

Pflitsch 96572.6/15	-40 C	300 °C	Brass Nickel Plated	13.97 mm	0.55 in			M20x1.5	Cable Feedthrough	8.89 mm	0.35 "	Silver	20.1 mm	0.79 in	IP68 - Dust Tight Waterproof NEMA 4X				Sealing Ring

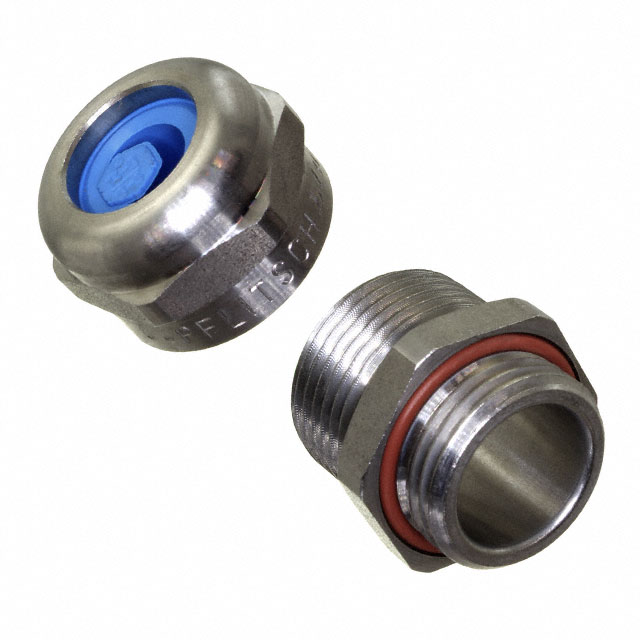

Pflitsch 96572.7	-60 °C	500 °C	Stainless Steel	13.97 mm	0.55 in	0.26 in	6.6 mm	M20x1.5	Cable Feedthrough	8.89 mm	0.35 "	Silver	20.1 mm	0.79 in	IP68 - Dust Tight Waterproof NEMA 4X				Sealing Ring

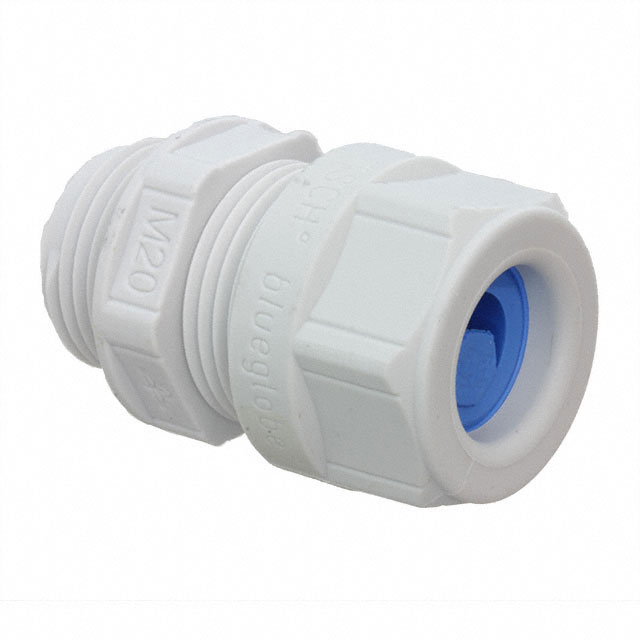

Pflitsch 96572.0	-20 ░C	100 °C	Polyamide (PA) Nylon	13.97 mm	0.55 in	0.26 in	6.6 mm	M20x1.5	Cable Feedthrough	8.89 mm	0.35 "	Light Gray	20.1 mm	0.79 in	IP68 - Dust Tight Waterproof NEMA 4X
