RF2-49 Series
Manufacturer: Adam Tech
Beta
⌘K

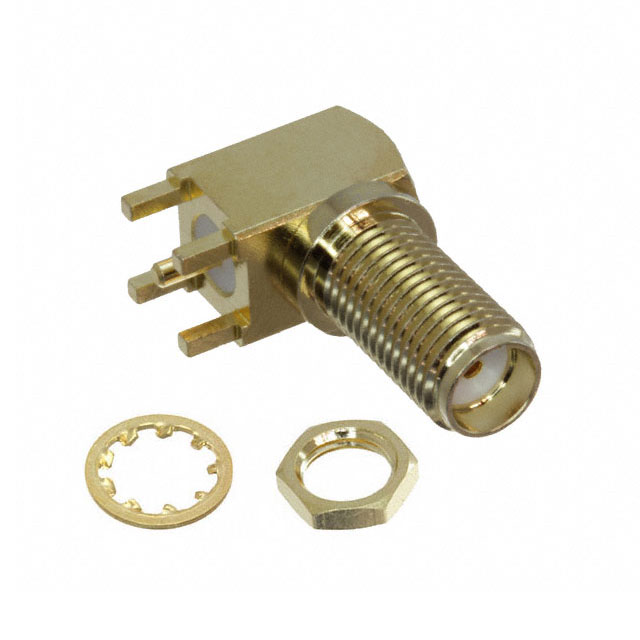

RF SMA CONNECTOR
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Body Material | Center Contact Plating | Voltage Rating | Features | Fastening Type | Mounting Feature | Center Contact Material | Connector Style | Impedance | Number of Ports | Housing Color | Frequency - Max [Max] | Shield Termination | Mounting Type | Connector Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Brass | Gold | 335 V | Code B | Threaded | Bulkhead - Rear Side Nut | Brass | SMA | 50 Ohms | 1 | White | 6000 MHz | Solder | Right Angle Through Hole | Female Socket Jack | Solder |
