SS14MD Series

Catalog

SWITCH SLIDE ON ON ON SP3T SIDE SLIDE 0.1A 30VDC 10000CYCLES PC PINS THRU-HOLE

Part	Electrical Life	Switch Travel	Mechanical Life	Actuator Material	Actuator Length [x]	Voltage Rating - DC	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Type	Current Rating (Amps)	Circuit	Mounting Type	Contact Finish	Contact Material	Contact Timing
NKK Switches SS14MDH2	10000 Cycles	2 mm	10000 Steps	Polyamide (PA) Nylon	2.5 mm	30 V	PC Pin	-15 °C	60 °C	On-On-On	Standard	100 mA	SP3T	Right Angle Through Hole	Silver	Phosphor Bronze	Non-Shorting (BBM)

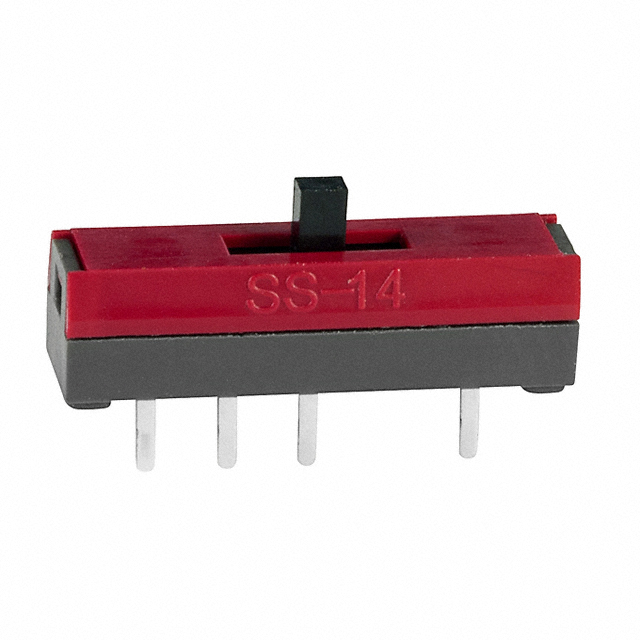

NKK Switches SS14MDP2	10000 Cycles	2 mm	10000 Steps	Polyamide (PA) Nylon	2 mm	30 V	PC Pin	-15 °C	60 °C	On-On-On	Standard	100 mA	SP3T	Through Hole	Silver	Phosphor Bronze	Non-Shorting (BBM)
