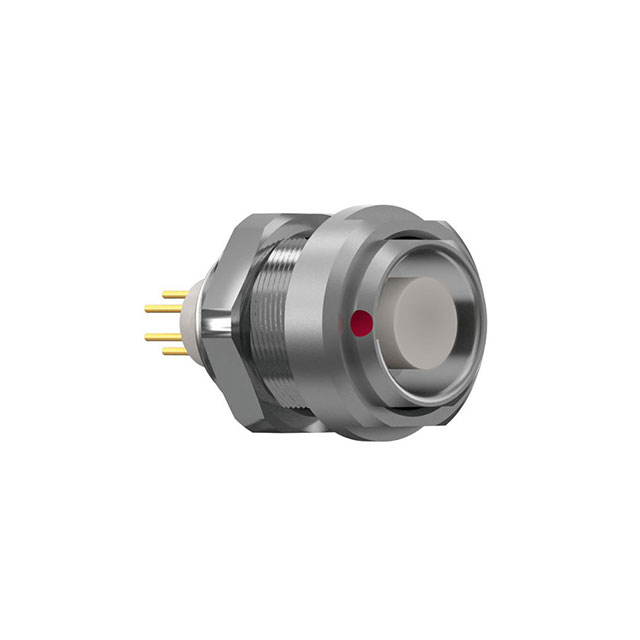

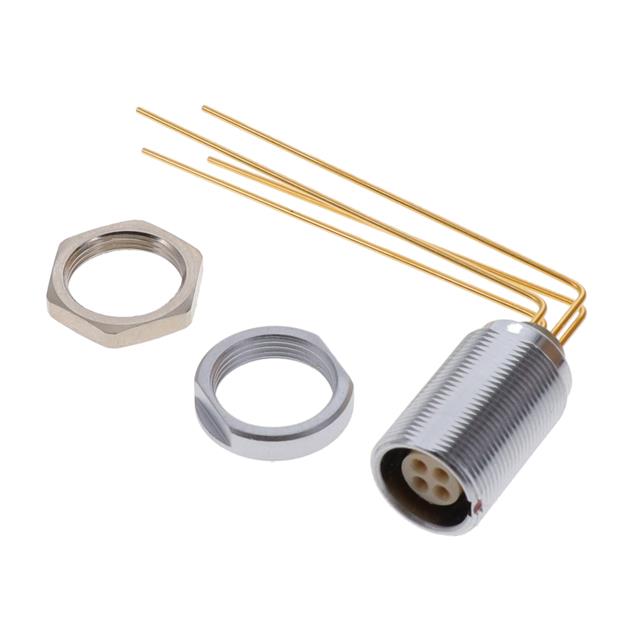

G50L0C-P Series
Manufacturer: ODU
Beta
⌘K
ODU MINI-SNAP RECEPT, STY 5, SZ
| Part | Shell Finish | Shell Size - Insert [custom] | Voltage Rating | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Ingress Protection | Shielding | Current Rating (Amps) | Insert Material | Contact Finish - Mating | Features | Connector Type | Number of Positions | Fastening Type | Applications | Primary Material | Orientation | Mounting Feature | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chrome over Nickel | 0 | 300 VDC | Brass | 120 °C | -40 C | Brass | Silver | IP50 - Dust Protected | Unshielded | 7.5 A | Polyetheretherketone (PEEK) | Gold | Ground | Receptacle Female Sockets | 4 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | Bulkhead - Front or Rear Side Nut | Panel Mount | ||
Chrome over Nickel | 0 | Brass | 120 °C | -40 C | Brass | Silver | IP50 - Dust Protected | Shielded | 4 A | Polyetheretherketone (PEEK) | Gold | Ground | Receptacle Female Sockets | 6 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | Bulkhead - Front or Rear Side Nut | Panel Mount | |||
Chrome over Nickel | 0 | Brass | 120 °C | -40 C | Brass | Silver | IP50 - Dust Protected | 4 A | Polyetheretherketone (PEEK) | Gold | Ground | Receptacle Female Sockets | 10 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | Bulkhead - Front or Rear Side Nut | Panel Mount | ||||
Chrome over Nickel | 0 | Brass | 120 °C | -40 C | Brass | Silver | IP50 - Dust Protected | Shielded | 4 A | Polyetheretherketone (PEEK) | Gold | Ground | Receptacle Female Sockets | 9 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | Bulkhead - Front or Rear Side Nut | Panel Mount | |||
Chrome over Nickel | 0 | 200 V | Brass | 120 °C | -40 C | Brass | Silver | IP50 - Dust Protected | Unshielded | 7.5 A | Polyetheretherketone (PEEK) | Gold | Ground | Receptacle Female Sockets | 5 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | Bulkhead - Front or Rear Side Nut | Panel Mount | Crimp | |
Chrome over Nickel | 0 | 300 VDC | Brass | 120 °C | -40 C | Brass | Silver | IP50 - Dust Protected | Unshielded | 6 A | Polyetheretherketone (PEEK) | Gold | Ground | Receptacle Female Sockets | 4 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | Bulkhead - Front or Rear Side Nut | Panel Mount Through Hole | Solder | |
Chrome over Nickel | 0 | 200 V | Brass | 120 °C | -40 C | Brass | Silver | IP50 - Dust Protected | Unshielded | 10 A | Polyetheretherketone (PEEK) | Gold | Ground | Receptacle Female Sockets | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | Bulkhead - Front or Rear Side Nut | Panel Mount | Crimp | ||
Chrome over Nickel | 0 | 366 V | Brass | 120 °C | -40 C | Brass | Silver | IP50 - Dust Protected | Unshielded | 6 A | Polyetheretherketone (PEEK) | Gold | Ground | Receptacle Female Sockets | 5 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | Bulkhead - Front or Rear Side Nut | Panel Mount | ||
Chrome over Nickel | 0 | Brass | 120 °C | -40 C | Brass | Silver | IP50 - Dust Protected | 7.5 A | Polyetheretherketone (PEEK) | Gold | Ground | Receptacle Female Sockets | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | Bulkhead - Front or Rear Side Nut | Panel Mount | |||||
Chrome over Nickel | 0 | 200 V | Brass | 120 °C | -40 C | Brass | Silver | IP50 - Dust Protected | Unshielded | 5 A | Polyetheretherketone (PEEK) | Gold | Ground | Receptacle Female Sockets | 10 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Metal | 0 | Bulkhead - Front or Rear Side Nut | Panel Mount Through Hole |
