RA812C1 Series

Manufacturer: E-Switch

Catalog

ROCKER; DPST; POS: 2; OFF-ON; 10A/250VAC; RED; RA8; RCONT MAX: 35MΩ

Part	Electrical Life	Mechanical Life	Voltage Rating - AC	Actuator Marking	Switch Function	Termination Style	Circuit	Current Rating (Amps)	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Approval Agency	Actuator Type	Color - Actuator/Cap	Illumination Voltage (Nominal)	Illumination Type, Color	Illumination Type, Color [custom]	Illumination Type, Color [custom]
E-Switch RA812C1900	10000 Cycles	100000 Cycles	125 V	No Marking	On-Off	Quick Connect	DPST	16 A	19 mm	13.1 mm	55 °C	-20 ░C	Panel Mount Snap-In	cULus	Concave (Curved)	Red
E-Switch RA812C1100	10000 Cycles	100000 Cycles	125 V	No Marking	On-Off	Quick Connect	DPST	16 A	19 mm	13.1 mm	55 °C	-20 ░C	Panel Mount Snap-In	cULus	Concave (Curved)	Black

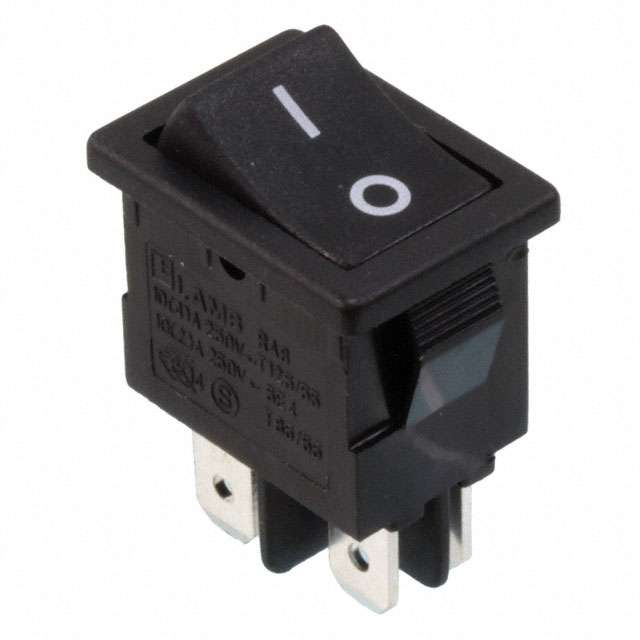

E-Switch RA812C1121	10000 Cycles	100000 Cycles	125 V	O -	On-Off	Quick Connect	DPST	16 A	19 mm	13.1 mm	55 °C	-20 ░C	Panel Mount Snap-In	cULus	Concave (Curved)	Black

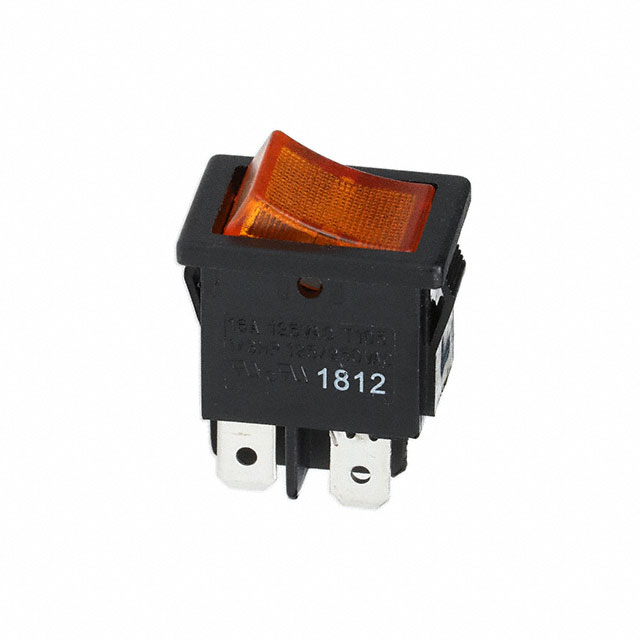

E-Switch RA812C1000-127	10000 Cycles	100000 Cycles	125 V	No Marking	On-Off	Quick Connect	DPST	16 A	19 mm	13.1 mm	55 °C	-20 ░C	Panel Mount Snap-In	cULus	Concave (Curved) - Illuminated	Amber	250 VAC	Neon Amber
E-Switch RA812C1028-136	10000 Cycles	100000 Cycles	125 V	O on End	On-Off	Quick Connect	DPST	16 A	19 mm	13.1 mm	55 °C	-20 ░C	Panel Mount Snap-In	cULus	Concave (Curved) - Illuminated	Green	125 VAC		Neon	Green
E-Switch RA812C1200	10000 Cycles	100000 Cycles	125 V	No Marking	On-Off	Quick Connect	DPST	16 A	19 mm	13.1 mm	55 °C	-20 ░C	Panel Mount Snap-In	cULus	Concave (Curved)	White

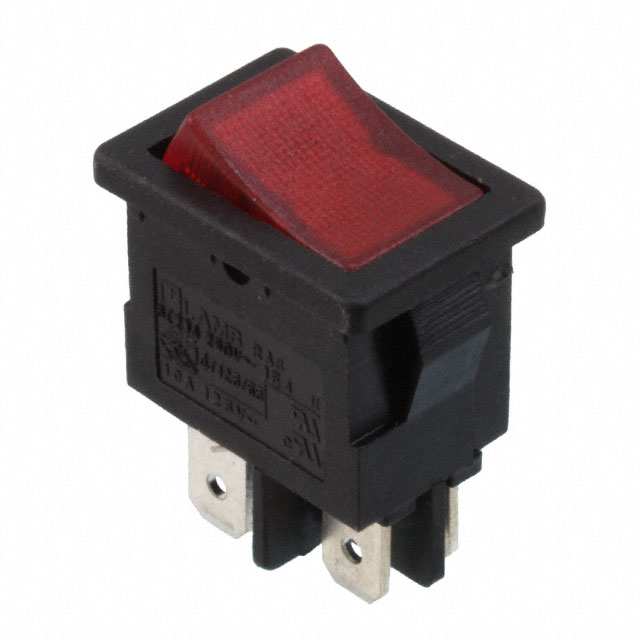

E-Switch RA812C1000-116	10000 Cycles	100000 Cycles	125 V	No Marking	On-Off	Quick Connect	DPST	16 A	19 mm	13.1 mm	55 °C	-20 ░C	Panel Mount Snap-In	cULus	Concave (Curved) - Illuminated	Red	125 VAC	Neon Red
