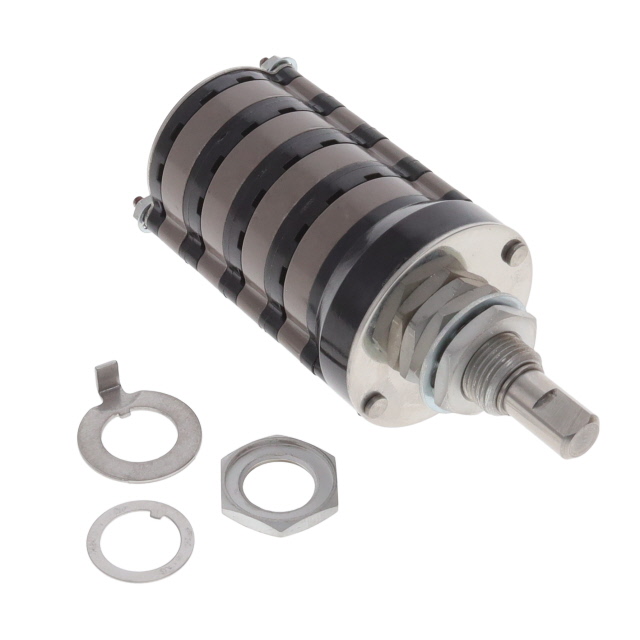

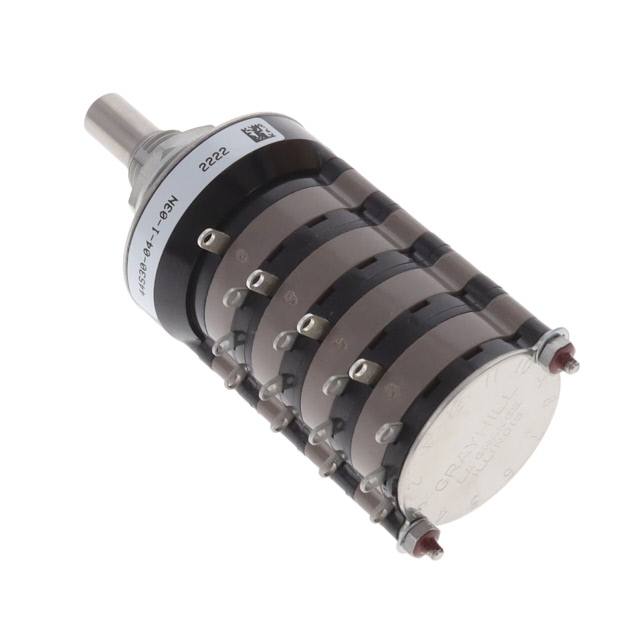

44S30 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
ROTARY SWITCH,RIGHT ANGLE,4P12T,ON-ON,2 THRU 12,SOLDER TERMINAL,CONCENTRIC
| Part | Circuit per Deck | Angle of Throw | Current Rating (Amps) | Contact Timing | Actuator Type | Mounting Type | Termination Style | Features | Voltage Rating - DC | Contact Material | Voltage Rating - AC | Index Stops | Number of Poles per Deck | Actuator Length [x] | Depth Behind Panel [z] | Number of Decks | Number of Positions | Number of Decks [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | SP12T | 30 ° | 1 A | Non-Shorting (BBM) | Flatted (6.35mm Dia) | Panel Mount | Solder Lug | Shaft and Panel Sealed | 28 V | Silver Alloy | 115 V | Continuous | 1 | 11.1 mm | 52.4 mm | 4 | 12 | |
 Grayhill Inc. | SP3T | 30 ° | 1 A | Non-Shorting (BBM) | Flatted (6.35mm Dia) | Panel Mount | Solder Lug | Shaft and Panel Sealed | 28 V | Silver Alloy | 115 V | Fixed | 1 | 11.1 mm | 52.4 mm | 4 | ||
 Grayhill Inc. | 3P4T | 30 ° | 1 A | Non-Shorting (BBM) | Flatted (6.35mm Dia) | Panel Mount | Solder Lug | Shaft and Panel Sealed | 28 V | Silver Alloy | 115 V | Fixed | 3 | 11.1 mm | 26.04 mm | 4 | 1 | |
Grayhill Inc. | DP6T | 30 ° | 1 A | Non-Shorting (BBM) | Flatted (6.35mm Dia) | Panel Mount | Solder Lug | Shaft and Panel Sealed | 28 V | Silver Alloy | 115 V | Fixed | 2 | 11.1 mm | 52.4 mm | 4 | 6 | |
 Grayhill Inc. | SP5T | 30 ° | 1 A | Non-Shorting (BBM) | Flatted (6.35mm Dia) | Panel Mount | Solder Lug | Shaft and Panel Sealed | 28 V | Silver Alloy | 115 V | Fixed | 1 | 11.1 mm | 26.04 mm | 5 | 1 | |
Grayhill Inc. | SP8T | 30 ° | 1 A | Non-Shorting (BBM) | Flatted (6.35mm Dia) | Panel Mount | Solder Lug | Shaft and Panel Sealed | 28 V | Silver Alloy | 115 V | Fixed | 1 | 11.1 mm | 34.82 mm | 2 | 8 | |
Grayhill Inc. | SP6T | 30 ° | 1 A | Non-Shorting (BBM) | Flatted (6.35mm Dia) | Panel Mount | Solder Lug | Shaft and Panel Sealed | 28 V | Silver Alloy | 115 V | Fixed | 1 | 11.1 mm | 34.82 mm | 2 | 6 | |
Grayhill Inc. | DP4T | 30 ° | 1 A | Non-Shorting (BBM) | Flatted (6.35mm Dia) | Panel Mount | Solder Lug | Shaft and Panel Sealed | 28 V | Silver Alloy | 115 V | Fixed | 2 | 11.1 mm | 34.82 mm | 2 | 4 | |
Grayhill Inc. | SP8T | 30 ° | 1 A | Non-Shorting (BBM) | Flatted (6.35mm Dia) | Panel Mount | Solder Lug | Shaft and Panel Sealed | 28 V | Silver Alloy | 115 V | Fixed | 1 | 11.1 mm | 26.04 mm | 8 | 1 | |
Grayhill Inc. | 3P4T | 30 ° | 1 A | Non-Shorting (BBM) | Flatted (6.35mm Dia) | Panel Mount | Solder Lug | Shaft and Panel Sealed | 28 V | Silver Alloy | 115 V | Fixed | 3 | 11.1 mm | 34.82 mm | 2 | 4 |
