325-036 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 36POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Termination	Number of Rows [custom]	Contact Type	Card Type	Contact Material	Contact Finish	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Mounting Type	Number of Positions/Bay/Row [custom]	Pitch	Pitch	Flange Feature	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row	Number of Rows

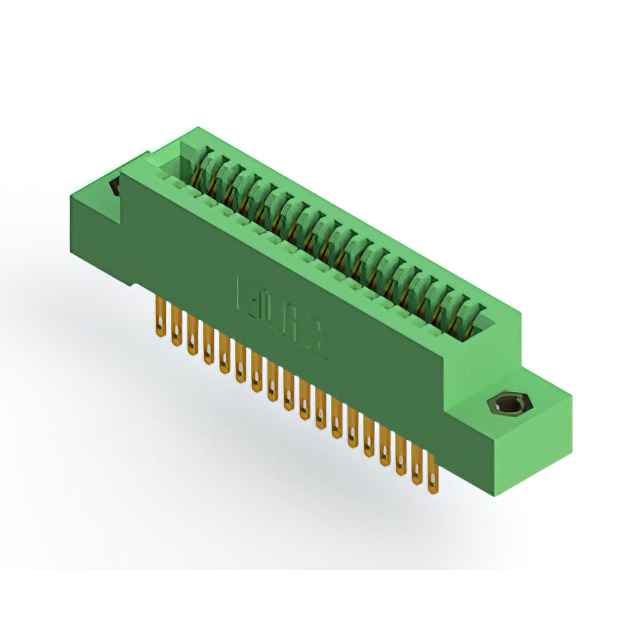

EDAC Inc. 325-036-500-207	Diallyl Phthalate (DAP)	2	Solder Eyelet(s)	2	Cantilever	Non Specified - Dual Edge	Copper Alloy	Gold	3.18 mm	0.125 in	0.25 Ám	10 Áin	Green	36	Female	-65 ░C	125 °C	Dual	Through Hole	18	0.1 "	2.54 mm	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 325-036-500-109	Diallyl Phthalate (DAP)		Solder Eyelet(s)		Cantilever	Non Specified - Single Edge	Copper Alloy	Gold	3.18 mm	0.125 in	0.25 Ám	10 Áin	Green	36	Female	-65 ░C	125 °C	Single	Through Hole		0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	1	0.16 "	4.06 mm	36	1
EDAC Inc. 325-036-540-109	Diallyl Phthalate (DAP)		Wire Wrap		Cantilever	Non Specified - Single Edge	Copper Alloy	Gold	3.18 mm	0.125 in	0.25 Ám	10 Áin	Green	36	Female	-65 ░C	125 °C	Single	Through Hole		0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	1	0.16 "	4.06 mm	36	1
EDAC Inc. 325-036-500-101	Diallyl Phthalate (DAP)		Solder Eyelet(s)		Cantilever	Non Specified - Single Edge	Copper Alloy	Gold	3.18 mm	0.125 in	0.25 Ám	10 Áin	Green	36	Female	-65 ░C	125 °C	Single	Through Hole		0.1 "	2.54 mm		1			36	1

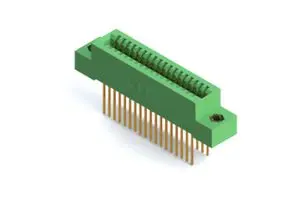

EDAC Inc. 325-036-540-207	Diallyl Phthalate (DAP)	2	Wire Wrap	2	Cantilever	Non Specified - Dual Edge	Copper Alloy	Gold	3.18 mm	0.125 in	0.25 Ám	10 Áin	Green	36	Female	-65 ░C	125 °C	Dual	Through Hole	18	0.1 "	2.54 mm	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 325-036-520-209	Diallyl Phthalate (DAP)	2	Solder	2	Cantilever	Non Specified - Dual Edge	Copper Alloy	Gold	3.18 mm	0.125 in	0.25 Ám	10 Áin	Green	36	Female	-65 ░C	125 °C	Dual	Through Hole	18	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded		0.16 "	4.06 mm
EDAC Inc. 325-036-540-209	Diallyl Phthalate (DAP)	2	Wire Wrap	2	Cantilever	Non Specified - Dual Edge	Copper Alloy	Gold	3.18 mm	0.125 in	0.25 Ám	10 Áin	Green	36	Female	-65 ░C	125 °C	Dual	Through Hole	18	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded		0.16 "	4.06 mm

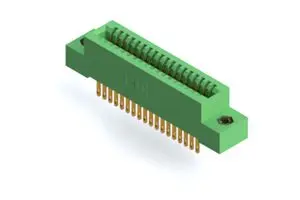

EDAC Inc. 325-036-500-208	Diallyl Phthalate (DAP)	2	Solder Eyelet(s)	2	Cantilever	Non Specified - Dual Edge	Copper Alloy	Gold	3.18 mm	0.125 in	0.25 Ám	10 Áin	Green	36	Female	-65 ░C	125 °C	Dual	Through Hole	18	0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening

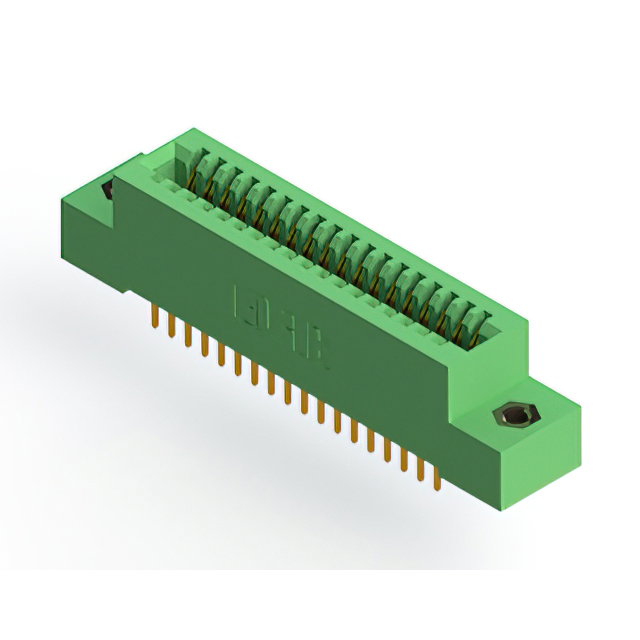

EDAC Inc. 325-036-520-207	Diallyl Phthalate (DAP)	2	Solder	2	Cantilever	Non Specified - Dual Edge	Copper Alloy	Gold	3.18 mm	0.125 in	0.25 Ám	10 Áin	Green	36	Female	-65 ░C	125 °C	Dual	Through Hole	18	0.1 "	2.54 mm	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 325-036-520-108	Diallyl Phthalate (DAP)		Solder		Cantilever	Non Specified - Single Edge	Copper Alloy	Gold	3.18 mm	0.125 in	0.25 Ám	10 Áin	Green	36	Female	-65 ░C	125 °C	Single	Through Hole		0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening	1			36	1
