XC9252 Series
Manufacturer: Torex Semiconductor Ltd
Beta
⌘K
30V LOW QUIESCENT CURRENT STEP-D
| Part | Function | Clock Sync | Topology | Frequency - Switching [Min] | Frequency - Switching [Max] | Output Phases | Control Features | Synchronous Rectifier | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Package / Case | Duty Cycle (Max) [Max] | Output Type | Output Configuration | Number of Outputs | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

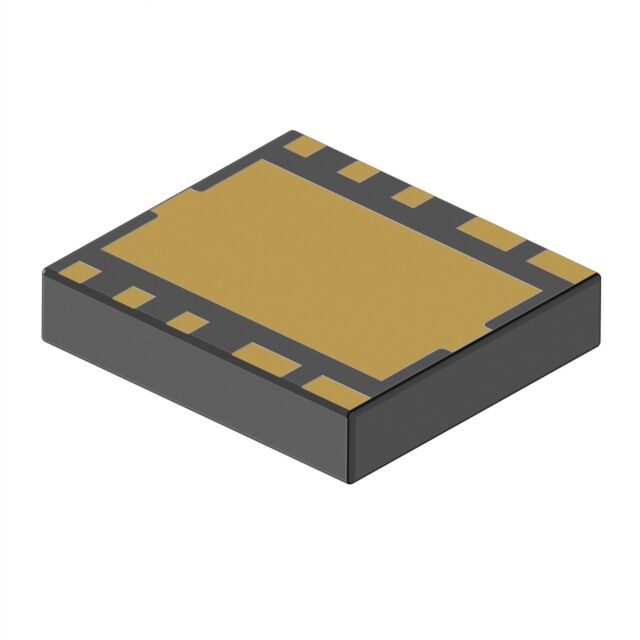

 Torex Semiconductor Ltd | Step-Down | Buck | 280 kHz | 550 kHz | 1 | Current Limit Enable Frequency Control Power Good Soft Start | 3 V | 30 V | -40 °C | 105 °C | Surface Mount | 2.9 | 2.6 | 10-USPB | 10-PowerUDFN | 100 % | Transistor Driver | Positive | 1 | ||||
 Torex Semiconductor Ltd | Step-Down | Buck | 280 kHz | 550 kHz | 1 | Current Limit Enable Frequency Control Power Good Soft Start | 3 V | 30 V | -40 °C | 105 °C | Surface Mount | 16-TSSOP | 16-LSSOP | 100 % | Transistor Driver | Positive | 1 | 0.173 in | 4.4 mm |
