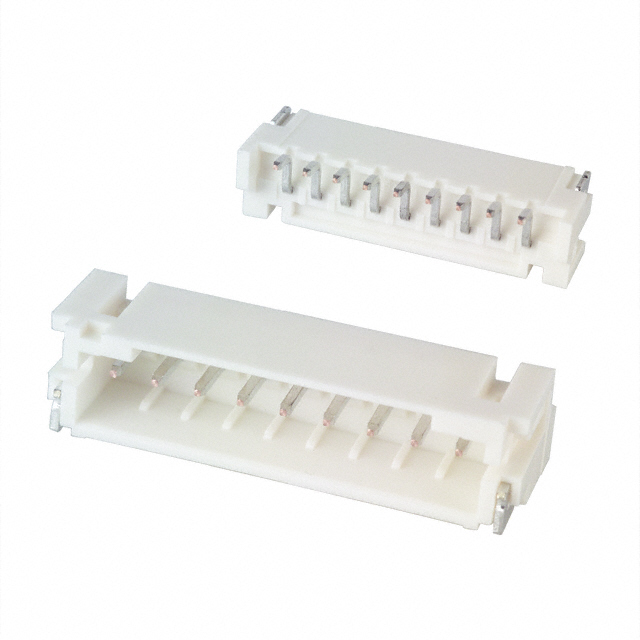

S9B-PH-S Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 9POS 2MM
| Part | Fastening Type | Insulation Color | Contact Material | Contact Type | Termination | Insulation Material | Contact Shape | Features | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Shrouding | Insulation Height | Insulation Height | Current Rating (Amps) | Number of Positions Loaded | Material Flammability Rating | Mounting Type | Connector Type | Number of Rows | Number of Positions | Voltage Rating | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Detent Lock | Natural | Copper Alloy | Male Pin | Solder | Nylon 6T Polyamide (PA6T) | Square | Solder Retention | 85 °C | -25 °C | Tin | 0.079 " | 2 mm | 0.13 in | 3.3 mm | Shrouded - 4 Wall | 0.217 in | 5.51 mm | 2 A | All | UL94 V-0 | Right Angle Surface Mount | Header | 1 | 9 | 100 V | Board to Cable/Wire |
