IS31FL3236 Series
Manufacturer: Lumissil Microsystems
Beta
⌘K
EVAL BOARD FOR IS31FL3236A
| Part | Utilized IC / Part | Contents | Features | Outputs and Type | Current - Output / Channel | Voltage - Input [Max] | Voltage - Input [Min] | Supplied Contents | Operating Temperature [Max] | Operating Temperature [Min] | Internal Switch(s) | Voltage - Supply (Min) [Min] | Voltage - Supply (Max) [Max] | Number of Outputs | Topology | Type | Package / Case | Mounting Type | Frequency | Supplier Device Package | Applications | Dimming |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

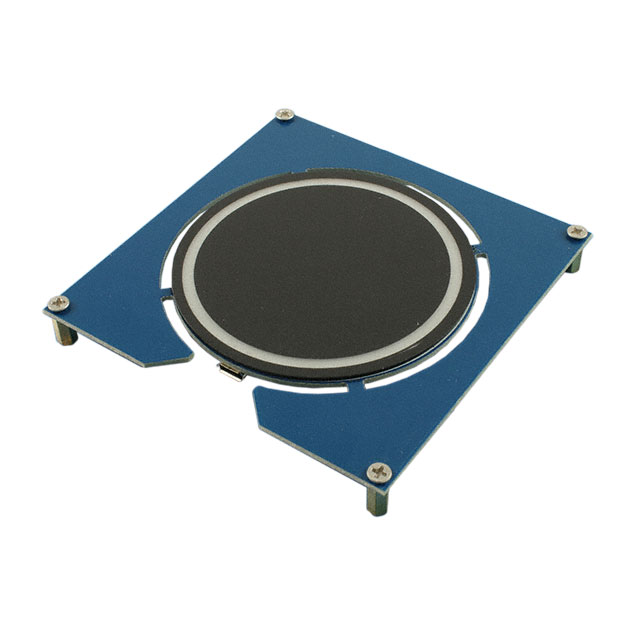

 Lumissil Microsystems | IS31FL3236A | Board(s) | Dimmable | 36 Non-Isolated Outputs | 38 mA | 5.5 V | 2.7 V | |||||||||||||||

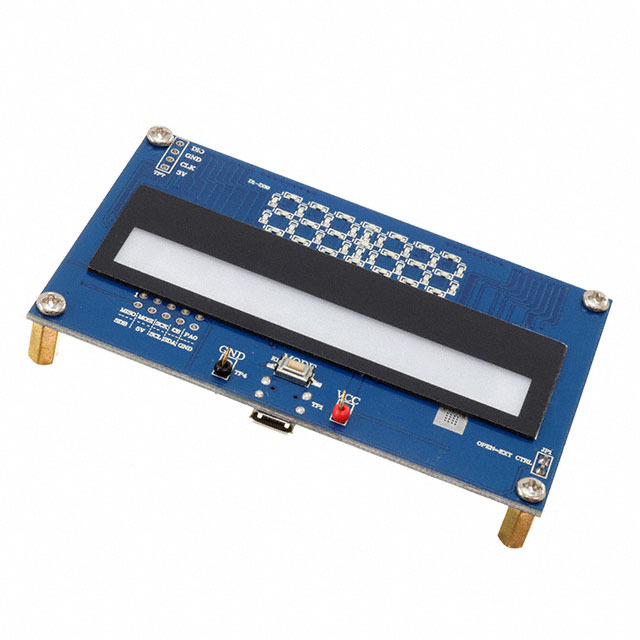

 Lumissil Microsystems | IS31FL3236A | Board(s) | Dimmable | 36 Non-Isolated Outputs | 38 mA | 5.5 V | 2.7 V | Board(s) | ||||||||||||||

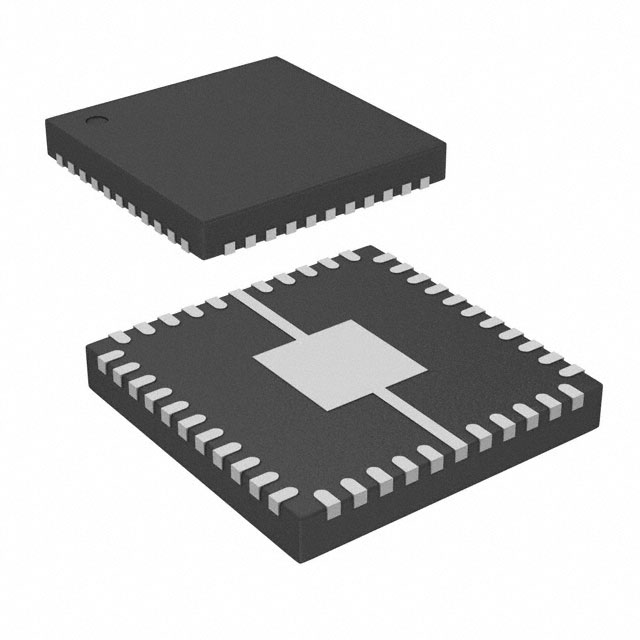

 Lumissil Microsystems | 38 mA | 85 C | -40 ¯C | 2.7 V | 5.5 V | 36 | Constant Current | Linear | 44-PowerWFQFN | Surface Mount | 3 kHz 22 kHz | 44-QFN (5x5) | ||||||||||
Lumissil Microsystems | 38 mA | 85 C | -40 ¯C | 2.7 V | 5.5 V | 36 | Linear | 44-PowerWFQFN | Surface Mount | 44-QFN (5x5) | Backlight | I2C |
