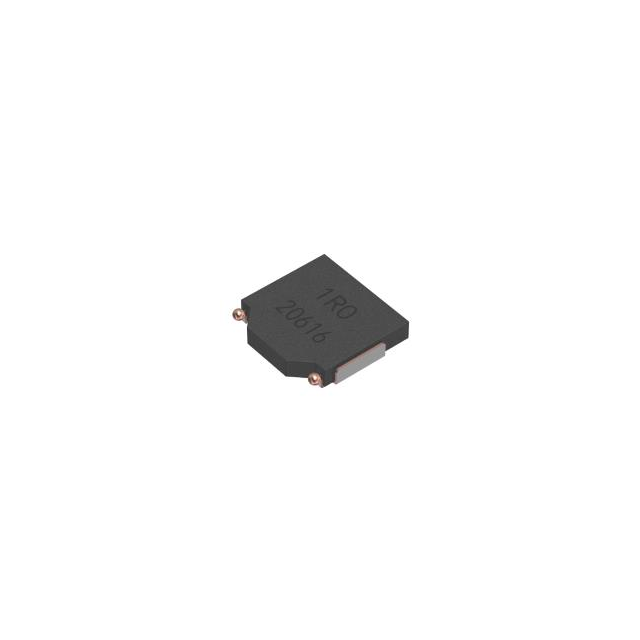

SPM-LR Series

Catalog

POWER INDUCTORS - SMD 4.4MM X 4.1MM, -40 TO +125 DEGC, 2.2A, 6.8?H, 193.2MOHM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Package / Case	Inductance	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Type	Current Rating (Amps)	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Tolerance	Current - Saturation (Isat)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max)	DC Resistance (DCR)
TDK Corporation SPM4020T-6R8M-LR	125 °C	-40 C	0.079 in	2 mm	Surface Mount	Nonstandard	6.8 µH	100 kHz	193.2 mOhm	Drum Core Wirewound	2.2 A	Metal	4.1 mm	0.173 in	4.4 mm	0.161 in	Shielded	20 %	2.7 A
TDK Corporation SPM5012T-1R5M-LR	125 °C	-40 C			Surface Mount	Nonstandard	1.5 µH	100 kHz	46.2 mOhm	Drum Core Wirewound	3.8 A	Metal	5.1 mm	0.213 in	5.4 mm	0.201 "	Shielded	20 %	6 A	1.2 mm	0.047 "
TDK Corporation SPM3020T-3R3M-LR	125 °C	-40 C	0.079 in	2 mm	Surface Mount	Nonstandard	3.3 µH	100 kHz	121 mOhm	Drum Core Wirewound	2.2 A	Metal	3 mm	0.126 "	3.2 mm	0.118 in	Shielded	20 %	3.5 A
TDK Corporation SPM3015T-2R2M-LR	125 °C	-40 C			Surface Mount	Nonstandard	2.2 µH	100 kHz	86.6 mOhm	Drum Core Wirewound	2.8 A	Metal	3 mm	0.126 "	3.2 mm	0.118 in	Shielded	20 %	4 A			0.059 "	1.5 mm
TDK Corporation SPM5010T-R60M-LR	125 °C	-40 C	1 mm		Surface Mount	Nonstandard	600 nH	100 kHz		Drum Core Wirewound	5 A	Metal	5.1 mm	0.213 in	5.4 mm	0.201 "	Shielded	20 %	6.8 A			0.039 in
TDK Corporation SPM5015T-3R3M-LR	125 °C	-40 C			Surface Mount	Nonstandard	3.3 µH	100 kHz	82.5 mOhm	Drum Core Wirewound	3.5 A	Metal	5.1 mm	0.213 in	5.4 mm	0.201 "	Shielded	20 %	4.4 A			0.059 "	1.5 mm
TDK Corporation SPM5020T-2R2M-LR	125 °C	-40 C	0.079 in	2 mm	Surface Mount	Nonstandard	2.2 µH	100 kHz	40.7 mOhm	Drum Core Wirewound	4.6 A	Metal	5.1 mm	0.213 in	5.4 mm	0.201 "	Shielded	20 %	7 A
TDK Corporation SPM5010T-1R0M-LR	125 °C	-40 C	1 mm		Surface Mount	Nonstandard	1 µH	100 kHz	60.5 mOhm	Drum Core Wirewound	3.3 A	Metal	5.1 mm	0.213 in	5.4 mm	0.201 "	Shielded	20 %	5 A			0.039 in
TDK Corporation SPM3010T-2R2M-LR	125 °C	-40 C	1 mm		Surface Mount	Nonstandard	2.2 µH	100 kHz		Drum Core Wirewound	2 A	Metal	3 mm	0.126 "	3.2 mm	0.118 in	Shielded	20 %	2.6 A			0.039 in
TDK Corporation SPM3020T-2R2M-LR	125 °C	-40 C	0.079 in	2 mm	Surface Mount	Nonstandard	2.2 µH	100 kHz		Drum Core Wirewound	2.8 A	Metal	3 mm	0.126 "	3.2 mm	0.118 in	Shielded	20 %	3.9 A					84.2 mOhm
