ISPC Series

Catalog

CONN PC TERMINAL BLOCK M 6 POS 10.16MM PUSH-IN SPRING ST CABLE MOUNT 76A CARDBOARD

Part	Pitch	Pitch	Current - UL	Termination Style	Voltage - IEC	Mounting Type	Plug Wire Entry	Current - IEC	Wire Gauge or Range - mm² [Min] [custom]	Wire Gauge or Range - mm² [Max] [custom]	Contact Mating Finish	Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Number of Positions	Number of Levels	Positions Per Level	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Insulation Height [z]	Insulation Height [z]	Housing Material	Wire Strip Length	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Material Flammability Rating	Positions Per Level [custom]
Phoenix Contact 1748668	10.16 mm	0.4 in	66 A	Screwless - Push-In Spring	1 kV	Free Hanging (In-Line)	180 °	76 A	0.75 mm²	16 mm²	Silver	Green	20 AWG	4 AWG	Mating Flange	6	1	6
Phoenix Contact 1748862	7.62 mm	0.3 in	35 A	Screwless - Push-In Spring	1 kV	Free Hanging (In-Line)	180 °	41 A			Tin	Green	24 AWG	8 AWG	Locking Ramp	2	1	2	10 mm²	0.2 mm²
Phoenix Contact 1748752	10.16 mm	0.4 in	66 A	Screwless - Push-In Spring	1 kV	Free Hanging (In-Line)	180 °	76 A	0.75 mm²	16 mm²	Silver	Green	20 AWG	4 AWG	Mating Flange	7	1				25.1 mm	0.988 in	Polyamide (PA) Nylon	18 mm	0.75 mm˛	16 mm˛	UL94 V-0	7
Phoenix Contact 1748613	10.16 mm	0.4 in	66 A	Screwless - Push-In Spring	1 kV	Free Hanging (In-Line)	180 °	76 A	0.75 mm²	16 mm²	Silver	Green	20 AWG	4 AWG	Locking Ramp	9	1	9
Phoenix Contact 1748778	10.16 mm	0.4 in	66 A	Screwless - Push-In Spring	1 kV	Free Hanging (In-Line)	180 °	76 A	0.75 mm²	16 mm²	Silver	Green	20 AWG	4 AWG	Mating Flange	9	1	9

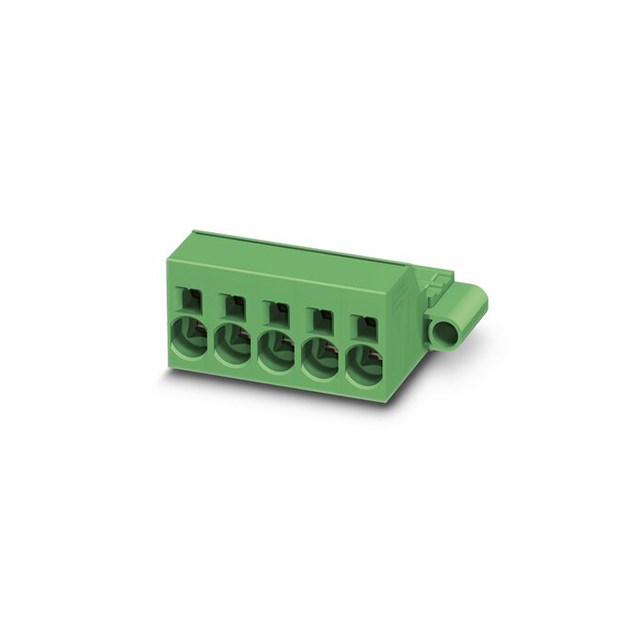

Phoenix Contact 1748684	10.16 mm	0.4 in	66 A	Screwless - Push-In Spring	1 kV	Free Hanging (In-Line)	180 °	76 A	0.75 mm²	16 mm²	Silver	Green	20 AWG	4 AWG	Mating Flange	8	1	8			25.1 mm	0.988 in	Polyamide (PA) Nylon	18 mm			UL94 V-0
Phoenix Contact 1748927	7.62 mm	0.3 in	35 A	Screwless - Push-In Spring	1 kV	Free Hanging (In-Line)	180 °	41 A			Tin	Green	24 AWG	8 AWG	Locking Ramp	8	1	8	10 mm²	0.2 mm²
