19-05 Series

Catalog

RFI GASKET ELASTOMER NICKEL

Part	Shape	Attachment Method	Width [x]	Width [x]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Type	Height [z]	Height [z]	Plating	Length	Thickness - Overall	Thickness - Overall	Adhesive	Thickness - Overall [z]
Parker Chomerics 19-05-11440-S6305	D-Shape	No Adhesive	6.25 mm	0.246 in	Conductive Elastomer	-29 °C	66 °C	Gasket	0.145 in	3.68 mm	Nickel
Parker Chomerics 19-05-11440-6502	D-Shape	No Adhesive	6.25 mm	0.246 in	Conductive Elastomer	-29 °C	66 °C	Gasket	0.145 in	3.68 mm	Nickel	Enter Number of Feet in Order Quantity
Parker Chomerics 19-05-14587-6502	D-Shape	No Adhesive	12.37 mm	0.487 in	Conductive Elastomer	-29 °C	66 °C	Gasket	0.324 in	8.23 mm	Nickel

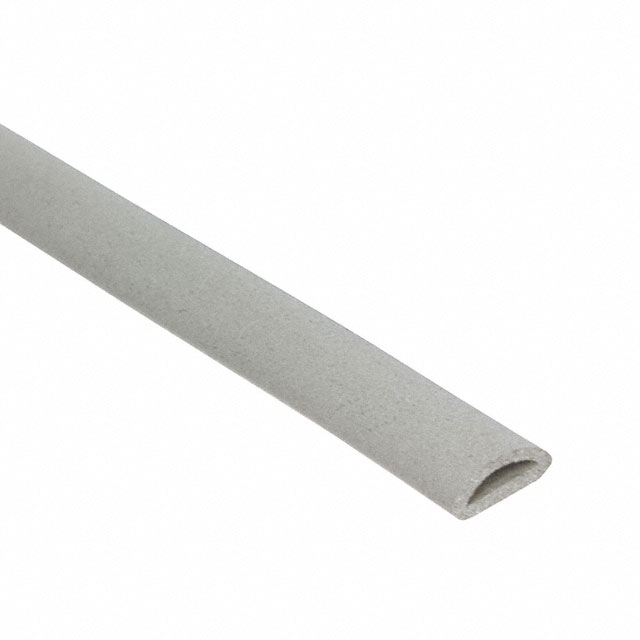

Parker Chomerics 19-05-11440-1298	D-Shape		6.25 mm	0.246 in	Fluorosilicone Elastomer Ag/Al	-55 C -29 °C	66 °C 200 °C	Gasket					3.68 mm	0.146 in

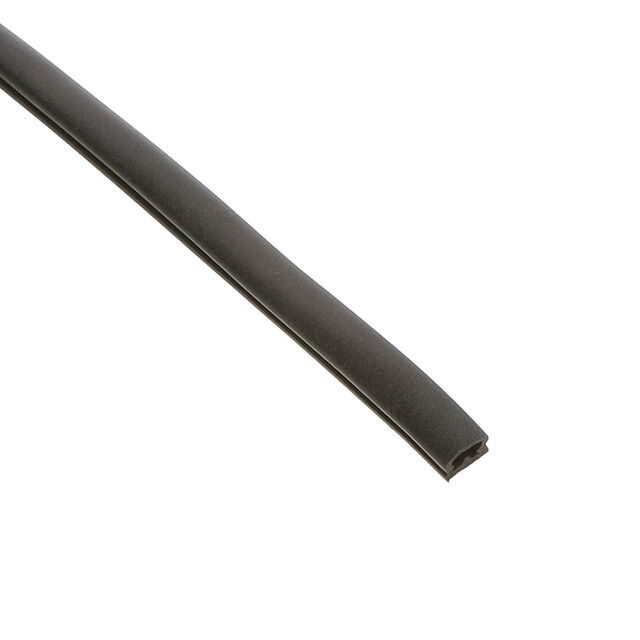

Parker Chomerics 19-05-14587-S6305	D-Shape	No Adhesive	12.37 mm	0.487 in	Conductive Elastomer	-29 °C	66 °C	Gasket	0.324 in	8.23 mm	Nickel	Enter Number of Feet in Order Quantity
Parker Chomerics 19-05-14587-1298	D-Shape		12.37 mm	0.487 in	Fluorosilicone Elastomer Ag/Al	-55 C -29 °C	66 °C 200 °C	Gasket					8.23 mm		Pressure Sensitive Adhesive (PSA)	0.324 "
