207584 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

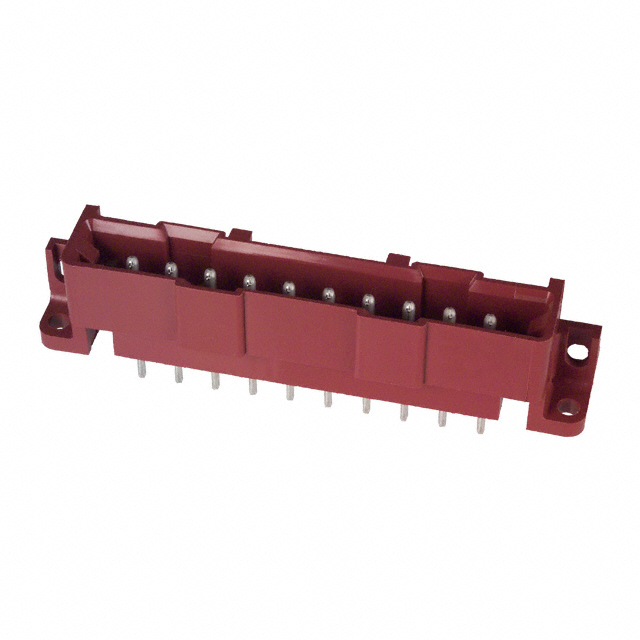

CONN HEADER VERT 10POS 5MM
| Part | Insulation Material | Current Rating (Amps) | Material Flammability Rating | Contact Shape | Number of Positions | Contact Finish - Post | Contact Type | Mounting Type | Connector Type | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Features | Style | Insulation Height | Insulation Height | Shrouding | Termination | Number of Positions Loaded | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Fastening Type | Pitch - Mating | Pitch - Mating | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | 7.5 A | UL94 V-0 | Circular | 10 | Tin | Male Pin | Through Hole | Header | Black Red | 130 °C | -55 °C | Mounting Flange | Board to Board Cable | 0.689 in | 17.5 mm | Shrouded - 4 Wall | Solder | All | Brass | 150 Áin | 3.81 Ám | 600 V | Latch Holder | 5 mm | 0.197 " | Automotive General Purpose Industrial | 150 Áin | 3.81 Ám | 1 | |
 TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | 7.5 A | UL94 V-0 | Circular | 10 | Tin | Male Pin | Through Hole | Header | Black Red | 130 °C | -55 °C | Mounting Flange | Board to Board Cable | 0.689 in | 17.5 mm | Shrouded - 4 Wall | Solder | All | Brass | 150 Áin | 3.81 Ám | 600 V | Latch Holder | 5 mm | 0.197 " | Automotive General Purpose Industrial | 30 Áin | 0.76 Ám | 1 | Gold PdNi +Gold |
TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | 7.5 A | UL94 V-0 | Circular | 10 | Tin-Lead | Male Pin | Through Hole | Header | Black Red | 130 °C | -55 °C | Mounting Flange | Board to Board Cable | 0.689 in | 17.5 mm | Shrouded - 4 Wall | Solder | All | Brass | 150 Áin | 3.81 Ám | 600 V | Latch Holder | 5 mm | 0.197 " | Automotive General Purpose Industrial | 30 Áin | 0.76 Ám | 1 | Gold |
