307-088 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 88POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Termination | Gender | Number of Positions/Bay/Row | Color | Contact Type | Number of Rows [custom] | Card Type | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Read Out | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

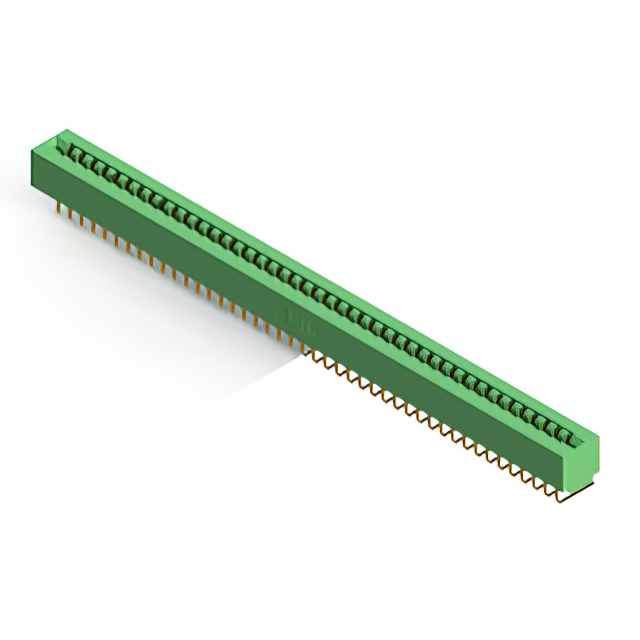

 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder Wire Wrap | Female | 44 | Green | Semi Bellows | 2 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Gold | 88 | -40 C | 105 ░C | Right Angle Through Hole | Dual | ||||

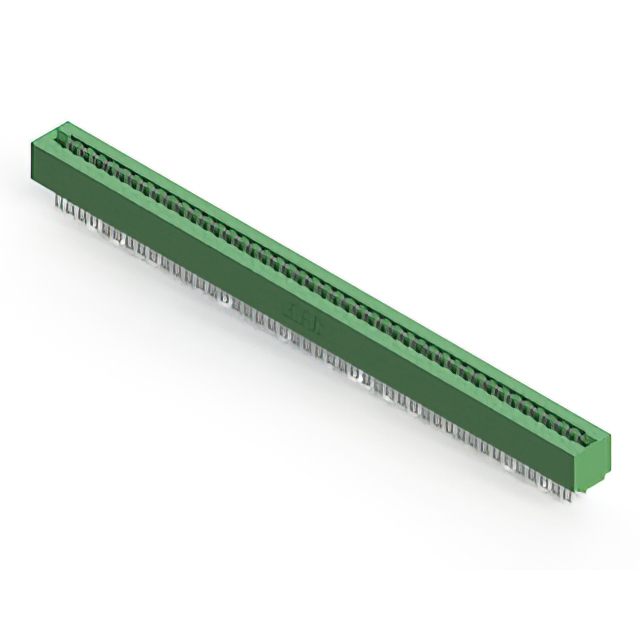

 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder Eyelet(s) | Female | 44 | Green | Semi Bellows | 2 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Tin | 88 | -40 C | 105 ░C | Through Hole | Dual | ||||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder | Female | 44 | Green | Semi Bellows | 2 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Gold | 88 | -40 C | 105 ░C | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder | Female | 44 | Green | Semi Bellows | 2 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Gold | 88 | -40 C | 105 ░C | Through Hole | Dual | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder | Female | 44 | Green | Semi Bellows | 2 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Gold | 88 | -40 C | 105 ░C | Board Edge Straddle Mount | Dual | Card Extender | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder | Female | 44 | Green | Semi Bellows | 2 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Gold | 88 | -40 C | 105 ░C | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Wire Wrap | Female | 44 | Green | Semi Bellows | 2 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Tin | 88 | -40 C | 105 ░C | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder Eyelet(s) | Female | 44 | Green | Semi Bellows | 2 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Gold | 88 | -40 C | 105 ░C | Through Hole | Dual | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder | Female | 44 | Green | Semi Bellows | 2 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Tin | 88 | -40 C | 105 ░C | Board Edge Straddle Mount | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Solder Eyelet(s) | Female | 44 | Green | Semi Bellows | 2 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Tin | 88 | -40 C | 105 ░C | Through Hole | Dual | Flush Mount M3 Threaded Insert Top Opening |
