FR02FR10 Series

Catalog

ROTARY SWITCH, 10 POSITION, 1 POLE

Part	Length [x]	Length [x]	Mechanical Life	Electrical Life	Body Material	Actuator Level	Number of Positions	Voltage Rating	Contact Material	Mounting Type	Termination Style	Height Above Board [z]	Height Above Board [z]	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Pitch	Pitch	Circuit	Current Rating (Amps)	Washable

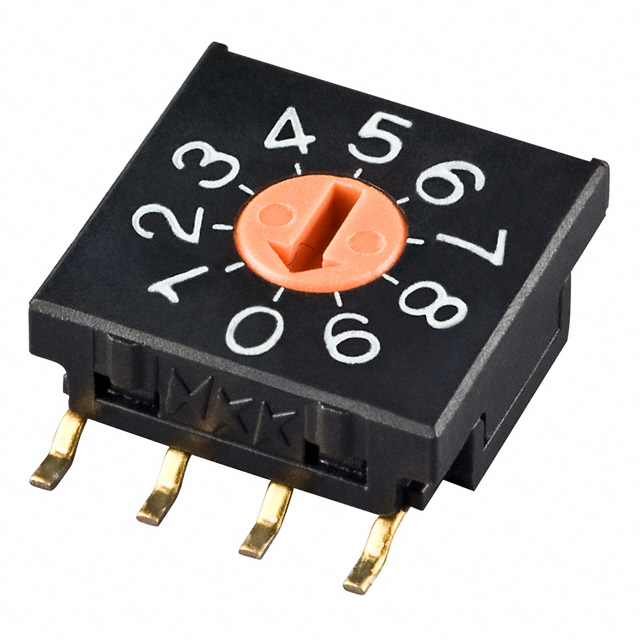

NKK Switches FR02FR10P-R	0.394 in	10 mm	10000 Steps	10000 Cycles	Polyamide (PA) Nylon Glass Filled	Flush Recessed	10	5 V	Copper Alloy	Surface Mount	Gull Wing	0.154 in	3.9 mm	Gold	85 °C	-25 °C	Rotary for Tool	2.54 mm	0.1 "	BCD	100 mA

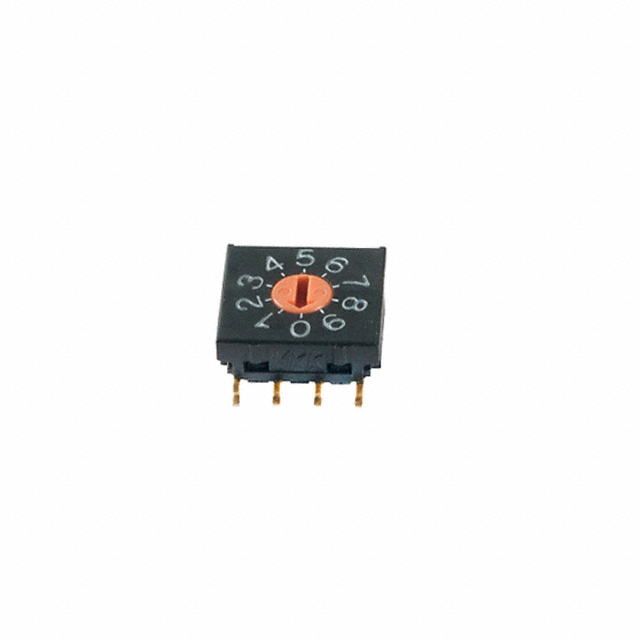

NKK Switches FR02FR10P-S	0.394 in	10 mm	10000 Steps	10000 Cycles	Polyamide (PA) Nylon Glass Filled	Flush Recessed	10	5 V	Copper Alloy	Surface Mount	Gull Wing	0.154 in	3.9 mm	Gold	85 °C	-25 °C	Rotary for Tool	2.54 mm	0.1 "	BCD	100 mA
