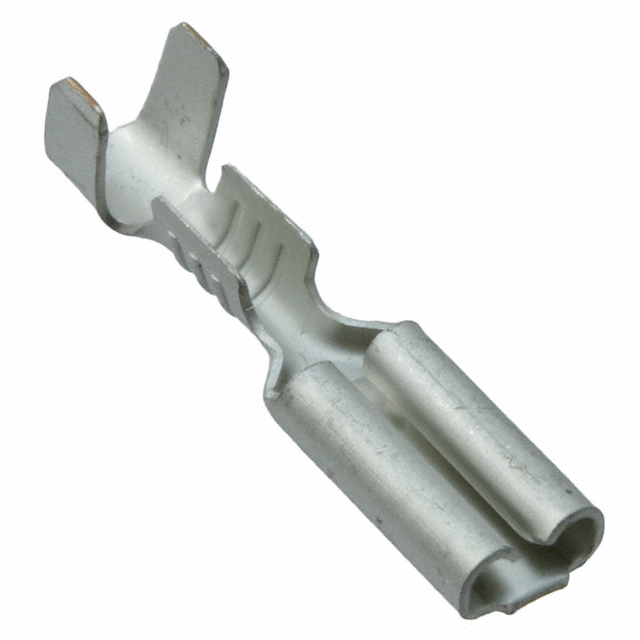

170048 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
110 SERIES FASTON RECEPTACLE ROHS COMPLIANT: YES
| Part | Contact Finish | Mounting Type | Termination | Tab Length | Tab Length | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Tab Width | Tab Width | Gender | Length - Overall | Length - Overall | Contact Material | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Tab Thickness | Tab Thickness | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | Free Hanging (In-Line) | Crimp | 0.252 in | 6.4 mm | Standard | 20 AWG | 24 AWG | 2.79 mm | 0.11 " | Female | 0.681 in | 17.3 mm | Brass | 2 mm | 0.118 in | 0.079 in | 3 mm | 0.02 " | 0.51 mm | Non-Insulated |
TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Crimp | 0.252 in | 6.4 mm | Standard | 20 AWG | 24 AWG | 2.79 mm | 0.11 " | Female | 0.681 in | 17.3 mm | 2 mm | 0.118 in | 0.079 in | 3 mm | 0.02 " | 0.51 mm | Non-Insulated |
