188431 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT 4POS 0.1 TIN SMD

Part	Contact Material	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Material Flammability Rating	Connector Type	Number of Positions	Number of Positions Loaded	Style	Contact Type	Features	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Voltage Rating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Applications
TE Connectivity Raychem Cable Protection 7-188431-4	Phosphor Bronze	Glass Filled Nylon 4/6 Polyamide (PA46)	118.1 µin	3 µm	Red	Tin	-40 °C	105 ░C	2	2.54 mm	0.1 in	Surface Mount Through Board	UL94 V-0	Receptacle Bottom Entry	4	All	Board to Board Cable	Forked	Pick and Place	0.1 in	2.54 mm	0.154 in	3.9 mm	100 V	Solder	3 µm	118.1 µin	Push-Pull	Automotive General Purpose

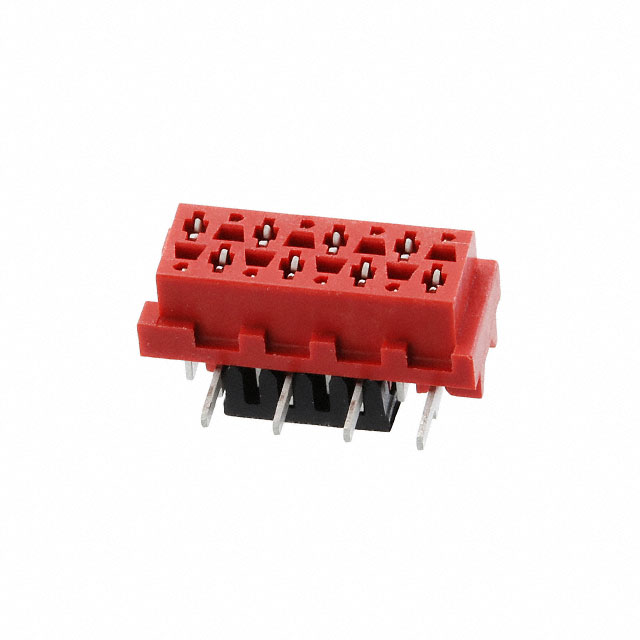

TE Connectivity Raychem Cable Protection 7-188431-8	Phosphor Bronze	Glass Filled Nylon 4/6 Polyamide (PA46)	118.1 µin	3 µm	Red	Tin	-40 °C	105 ░C	2	2.54 mm	0.1 in	Surface Mount Through Board	UL94 V-0	Receptacle Bottom Entry	8	All	Board to Board Cable	Forked	Pick and Place	0.1 in	2.54 mm	0.154 in	3.9 mm	100 V	Solder	3 µm	118.1 µin	Push-Pull	Automotive General Purpose

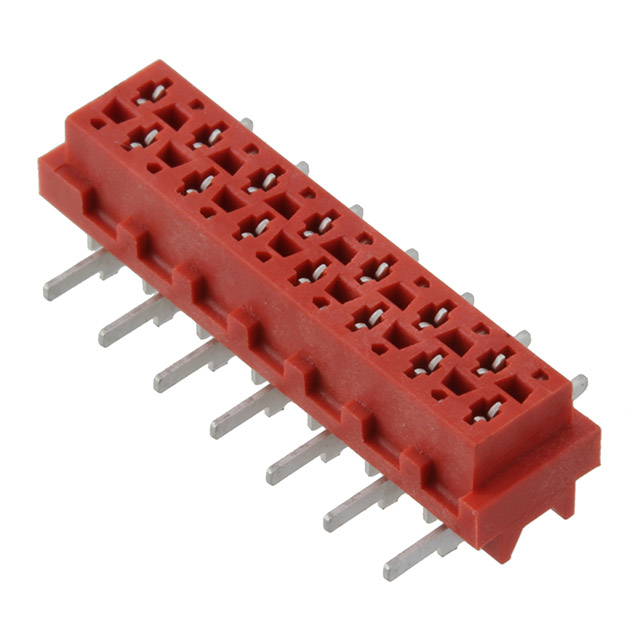

TE Connectivity Raychem Cable Protection 8-188431-4	Phosphor Bronze	Glass Filled Nylon 4/6 Polyamide (PA46)	118.1 µin	3 µm	Red	Tin	-40 °C	105 ░C	2	2.54 mm	0.1 in	Surface Mount Through Board	UL94 V-0	Receptacle Bottom Entry	14	All	Board to Board Cable	Forked	Pick and Place	0.1 in	2.54 mm	0.154 in	3.9 mm	100 V	Solder	3 µm	118.1 µin	Push-Pull	Automotive General Purpose

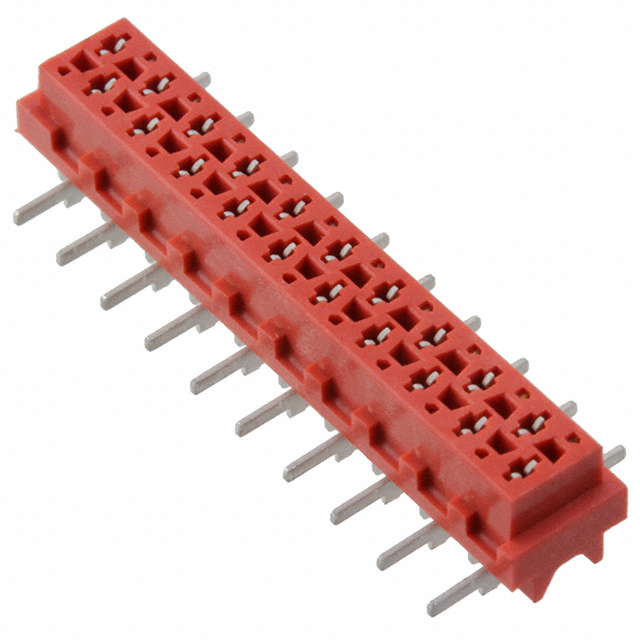

TE Connectivity Raychem Cable Protection 9-188431-0	Phosphor Bronze	Glass Filled Nylon 4/6 Polyamide (PA46)	118.1 µin	3 µm	Red	Tin	-40 °C	105 ░C	2	2.54 mm	0.1 in	Surface Mount Through Board	UL94 V-0	Receptacle Bottom Entry	20	All	Board to Board Cable	Forked	Pick and Place	0.1 in	2.54 mm	0.154 in	3.9 mm	100 V	Solder	3 µm	118.1 µin	Push-Pull	Automotive General Purpose
