L6-1-3056 Series

Catalog

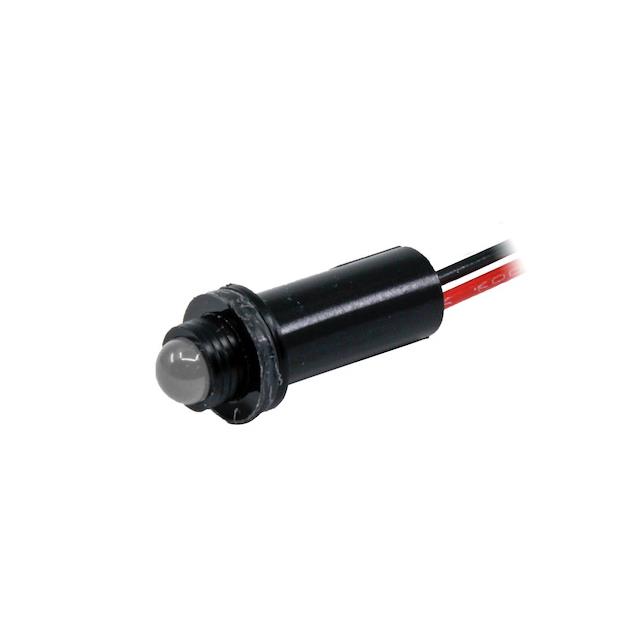

PMI DIA .250" (6.35MM) RED 2V

Part	Lens Size	Lens Size	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Wavelength - Peak	Lamp Color	Current	Panel Cutout Shape	Voltage	Viewing Angle	Lens Color	Termination Style	Lens Style	Millicandela Rating	Type	Ratings
Visual Communications Company - VCC L6-1-3056-0000-B-I	5 mm	T-1 3/4	6.35 mm	0.25 in	660 nm	Red	20 mA	Round	1.9 V	30 °	Red	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	400 mcd	LED
Visual Communications Company - VCC L6-1-3056-9908-B-I	5 mm	T-1 3/4	6.35 mm	0.25 in	660 nm	Red	20 mA	Round	1.9 V 12 V	30 °	Red	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	400 mcd	LED	DC
Visual Communications Company - VCC L6-1-3056-9907-B-I	5 mm	T-1 3/4	6.35 mm	0.25 in	660 nm	Red	20 mA	Round	1.9 V 5 V	30 °	Red	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	400 mcd	LED	DC
Visual Communications Company - VCC L6-1-3056-9914-B-I	5 mm	T-1 3/4	6.35 mm	0.25 in	660 nm	Red	20 mA	Round	1.9 V 60 V	30 °	Red	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	400 mcd	LED	DC
Visual Communications Company - VCC L6-1-3056-9910-B-I	5 mm	T-1 3/4	6.35 mm	0.25 in	660 nm	Red	20 mA	Round	1.9 V 24 V	30 °	Red	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	400 mcd	LED	DC
Visual Communications Company - VCC L6-1-3056-9912-B-I	5 mm	T-1 3/4	6.35 mm	0.25 in	660 nm	Red	20 mA	Round	1.9 V 48 V	30 °	Red	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	400 mcd	LED	DC
Visual Communications Company - VCC L6-1-3056-9920-B-I	5 mm	T-1 3/4	6.35 mm	0.25 in	660 nm	Red	20 mA	Round	1.9 V 120 V	30 °	Red	Wire Leads - 6.000" (152.40mm)	Round with Domed Top	400 mcd	LED	AC
