G6SK-2 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY TELECOM DPDT 2A 4.5V
| Part | Load - Max Switching | Coil Type | Contact Form | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Must Operate Voltage | Contact Rating (Current) | Coil Current | Release Time | Mounting Type | Coil Resistance | Contact Material | Approval Agency | Coil Voltage | Relay Type | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

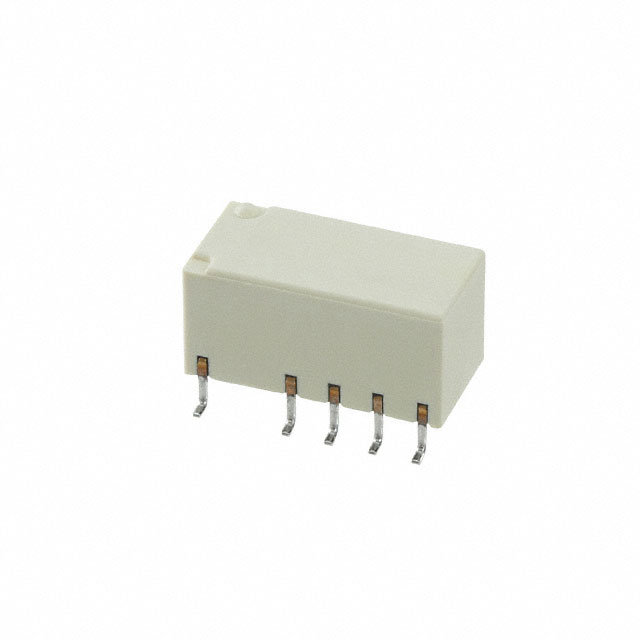

 Omron Electronics Inc-EMC Div | 440 W 500 VA | Latching Dual Coil | DPDT (2 Form C) | Gull Wing | 85 °C | -40 °C | 4 ms | 3.38 VDC | 2 A | 44.4 mA | 4 ms | Surface Mount | 101 Ohms | Gold (Au) Silver (Ag) | CSA UR | 4.5 VDC | Telecom | 220 VDC 250 VAC |
Omron Electronics Inc-EMC Div | 440 W 500 VA | Latching Dual Coil | DPDT (2 Form C) | Gull Wing | 70 °C | -40 °C | 4 ms | 18 VDC | 2 A | 8.3 mA | 4 ms | Surface Mount | 2.88 kOhms | Gold (Au) Silver (Ag) | CSA UR | 24 VDC | Telecom | 220 VDC 250 VAC |
 Omron Electronics Inc-EMC Div | 440 W 500 VA | Latching Dual Coil | DPDT (2 Form C) | J Lead | 85 °C | -40 °C | 4 ms | 2.25 VDC | 2 A | 66.7 mA | 4 ms | Surface Mount | 45 Ohms | Gold (Au) Silver (Ag) | CSA UR | Telecom | 220 VDC 250 VAC | |
Omron Electronics Inc-EMC Div | 440 W 500 VA | Latching Dual Coil | DPDT (2 Form C) | J Lead | 70 °C | -40 °C | 4 ms | 18 VDC | 2 A | 4 ms | Surface Mount | 1.92 kOhms | Gold (Au) Silver (Ag) | CSA UR | 24 VDC | Telecom | 220 VDC 250 VAC | |
Omron Electronics Inc-EMC Div | 440 W 500 VA | Latching Dual Coil | DPDT (2 Form C) | J Lead | 85 °C | -40 °C | 4 ms | 2.25 VDC | 2 A | 46.7 mA | 4 ms | Surface Mount | 64.2 Ohms | Gold (Au) Silver (Ag) | CSA UR | Telecom | 220 VDC 250 VAC | |

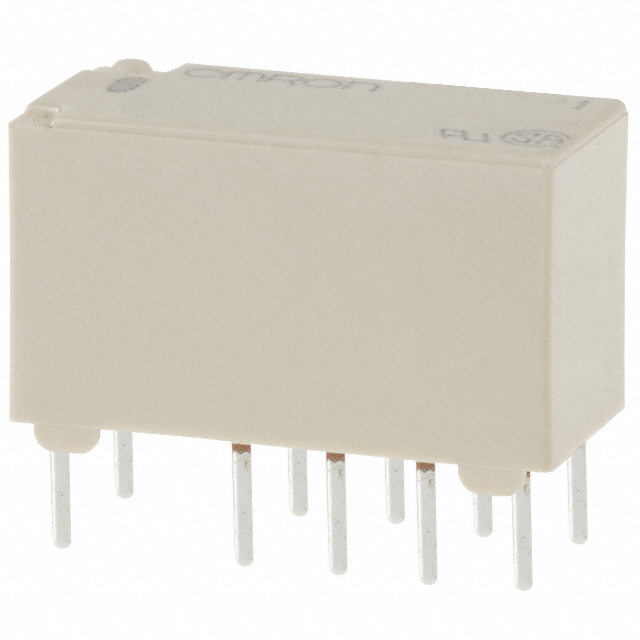

 Omron Electronics Inc-EMC Div | 440 W 500 VA | Latching Dual Coil | DPDT (2 Form C) | PC Pin | 85 °C | -40 °C | 4 ms | 3.75 VDC | 2 A | 28.1 mA | 4 ms | Through Hole | 178 Ohms | Gold (Au) Silver (Ag) | CSA UR | 5 VDC | Telecom | 220 VDC 250 VAC |
 Omron Electronics Inc-EMC Div | 440 W 500 VA | Latching Dual Coil | DPDT (2 Form C) | PC Pin | 85 °C | -40 °C | 4 ms | 2.25 VDC | 2 A | 66.7 mA | 4 ms | Through Hole | 45 Ohms | Gold (Au) Silver (Ag) | CSA UR | Telecom | 220 VDC 250 VAC | |
Omron Electronics Inc-EMC Div | 440 W 500 VA | Latching Dual Coil | DPDT (2 Form C) | Gull Wing | 85 °C | -40 °C | 4 ms | 6.75 VDC | 2 A | 22.2 mA | 4 ms | Surface Mount | 405 Ohms | Gold (Au) Silver (Ag) | CSA UR | 9 VDC | Telecom | 220 VDC 250 VAC |
Omron Electronics Inc-EMC Div | 440 W 500 VA | Latching Dual Coil | DPDT (2 Form C) | Gull Wing | 85 °C | -40 °C | 4 ms | 2.25 VDC | 2 A | 46.7 mA | 4 ms | Surface Mount | 64.3 Ohms | Gold (Au) Silver (Ag) | CSA UR | Telecom | 220 VDC 250 VAC | |
Omron Electronics Inc-EMC Div | 440 W 500 VA | Latching Dual Coil | DPDT (2 Form C) | J Lead | 85 °C | -40 °C | 4 ms | 3.38 VDC | 2 A | 31 mA | 4 ms | Surface Mount | 145 Ohms | Gold (Au) Silver (Ag) | CSA UR | 4.5 VDC | Telecom | 220 VDC 250 VAC |
