823-S1 Series

Manufacturer: Preci-Dip

Catalog

CONN SPRING PISTON 16POS SMD

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows [custom]	Contact Finish	Material	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Number of Contacts	Number of Contacts [custom]
Preci-Dip 823-S1-016-30-014101	Surface Mount	19.7 µin	0.5 µm	Piston	2	Gold	Brass Alloy	2 mm	0.079 in	0.079 in	2 mm	16
Preci-Dip 823-S1-014-30-014191	Surface Mount	19.7 µin	0.5 µm	Piston	2	Gold	Brass Alloy	2 mm	0.079 in	0.079 in	2 mm		14
Preci-Dip 823-S1-020-30-012191	Surface Mount	19.7 µin	0.5 µm	Piston	2	Gold	Brass Alloy	2 mm	0.079 in	0.079 in	2 mm	20

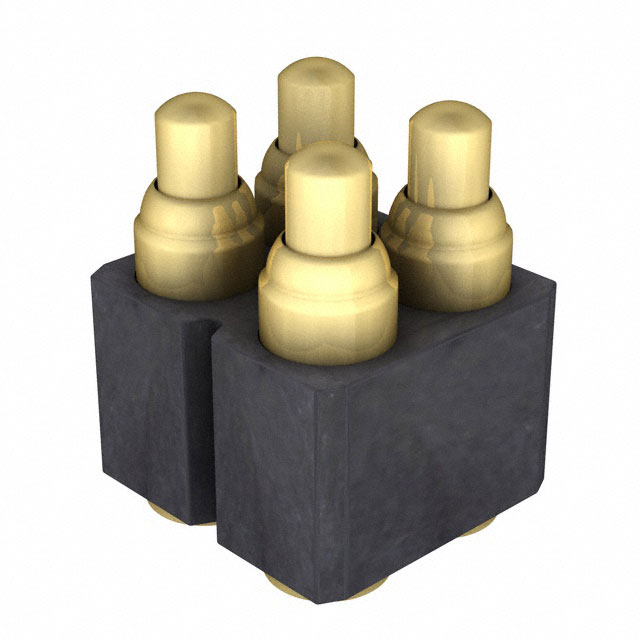

Preci-Dip 823-S1-004-30-012191	Surface Mount	19.7 µin	0.5 µm	Piston	2	Gold	Brass Alloy	2 mm	0.079 in	0.079 in	2 mm	4

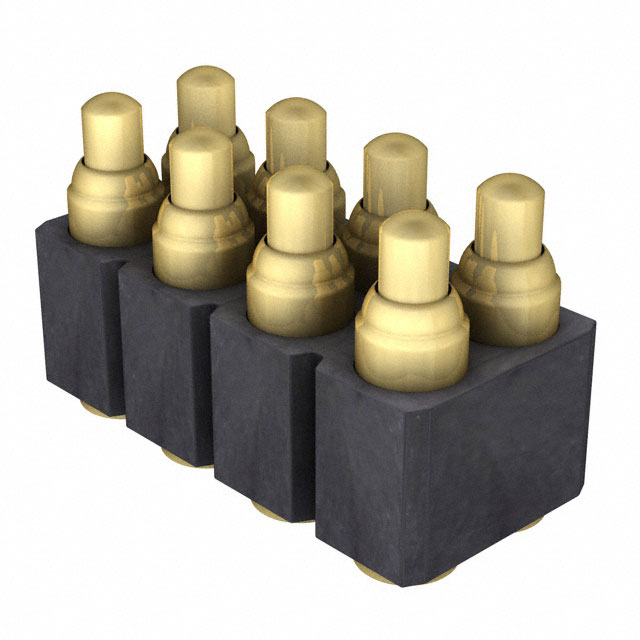

Preci-Dip 823-S1-008-30-015191	Surface Mount	19.7 µin	0.5 µm	Piston	2	Gold	Brass Alloy	2 mm	0.079 in	0.079 in	2 mm	8
Preci-Dip 823-S1-018-30-014191	Surface Mount	19.7 µin	0.5 µm	Piston	2	Gold	Brass Alloy	2 mm	0.079 in	0.079 in	2 mm
Preci-Dip 823-S1-020-30-012101	Surface Mount	19.7 µin	0.5 µm	Piston	2	Gold	Brass Alloy	2 mm	0.079 in	0.079 in	2 mm	20
Preci-Dip 823-S1-012-30-013101	Surface Mount	19.7 µin	0.5 µm	Piston	2	Gold	Brass Alloy	2 mm	0.079 in	0.079 in	2 mm		12
Preci-Dip 823-S1-020-30-014101	Surface Mount	19.7 µin	0.5 µm	Piston	2	Gold	Brass Alloy	2 mm	0.079 in	0.079 in	2 mm	20
Preci-Dip 823-S1-020-30-013191	Surface Mount	19.7 µin	0.5 µm	Piston	2	Gold	Brass Alloy	2 mm	0.079 in	0.079 in	2 mm	20
