JL15SKSB Series
Manufacturer: NKK Switches
Beta
⌘K

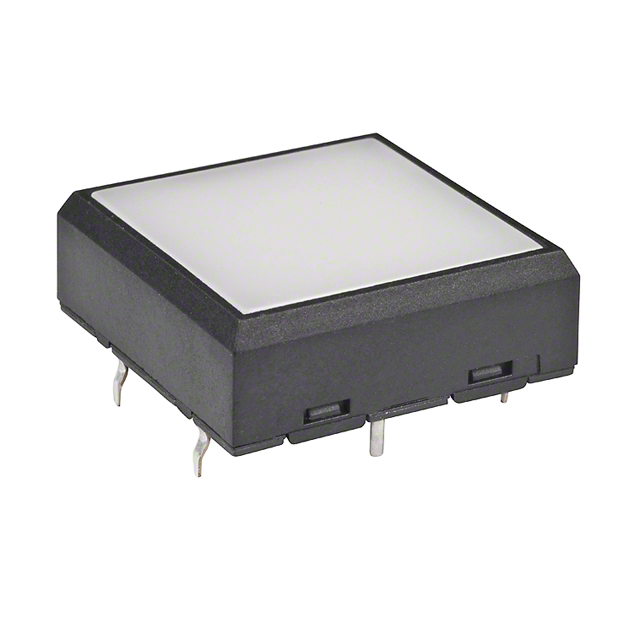

SWITCH TACTILE OFF (ON) SPST FLUSH SQUARE BUTTON PC PINS 0.05A 24VDC 1000000CYCLES 3N THRU-HOLE
| Part | Actuator Material | Mechanical Life | Switch Travel | Actuator Type | Illumination Voltage (Nominal) | Circuit | Illumination Type, Color | Contact Rating @ Voltage | Actuator Orientation | Mounting Type | Operating Force | Actuator Height off PCB, Vertical [z] | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Polycarbonate (PC) | 1000000 Cycles | 0.75 mm | Square Button | 3.9 VDC | SPST-NO | LED Red | 0.05 A 24 VDC | Top Actuated | Through Hole | 300 gf | 7.85 mm | Off-Mom | 50 °C | -25 °C | PC Pin | Illuminated |
 NKK Switches | Polycarbonate (PC) | 1000000 Cycles | 0.75 mm | Square Button | 4.2 VDC | SPST-NO | Green LED | 0.05 A 24 VDC | Top Actuated | Through Hole | 300 gf | 7.85 mm | Off-Mom | 50 °C | -25 °C | PC Pin | Illuminated |
