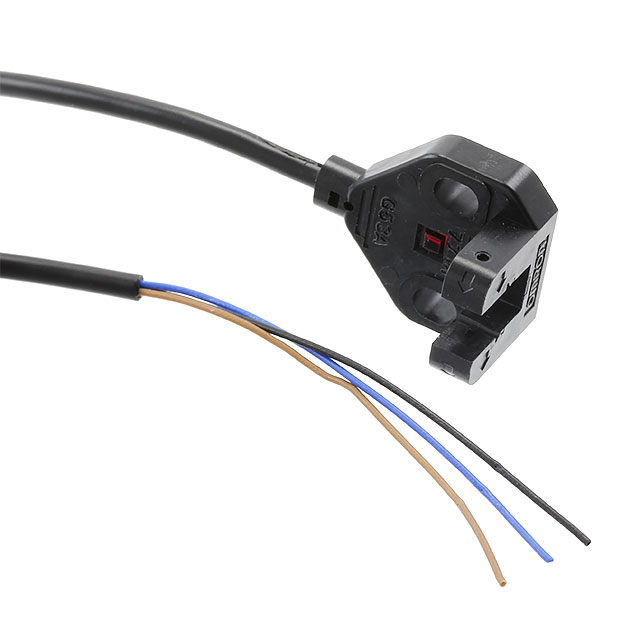

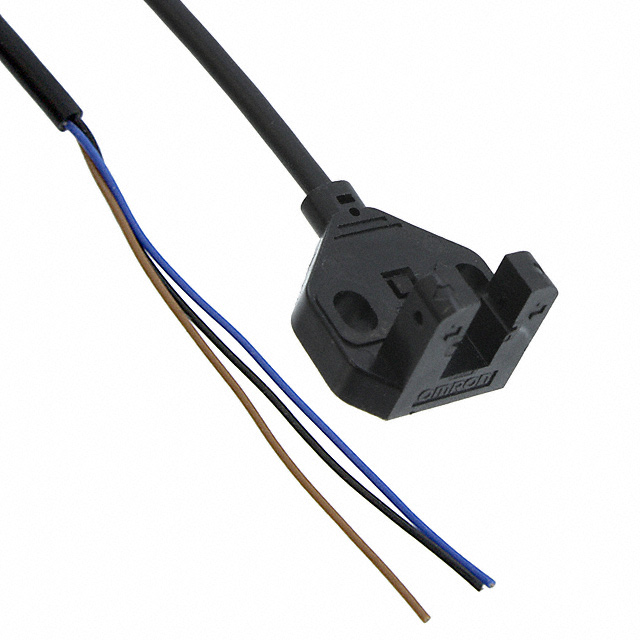

EE-SX771 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SENSOR OPTICAL 5MM MOD WIRE LEAD
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Supply | Operating Temperature [Max] | Operating Temperature [Min] | Sensing Method | Output Configuration | Mounting Type | Package / Case | Sensing Distance | Sensing Distance |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 24 V | 5 V | 30 mA | 55 °C | -25 °C | Through-Beam | PNP - Open Collector/Dark-ON | Chassis Mount M3 Screw | Module Wire Leads | 5 mm | 0.197 in |
 Omron Automation and Safety | 24 V | 5 V | 35 mA | 55 °C | -25 °C | Through-Beam | NPN - Open Collector/Dark-ON | Chassis Mount M3 Screw | Module Wire Leads | 5 mm | 0.197 in |
