104990 Series

Catalog

DISP 14SEG 0.54" DBL Y-G 18DIP

Part	Package / Case	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Characters	Wavelength - Peak	Color	Display Type	Power Dissipation (Max) [Max]	Millicandela Rating	Common Pin	Number of Characters	Package / Case [x]	Package / Case [x]

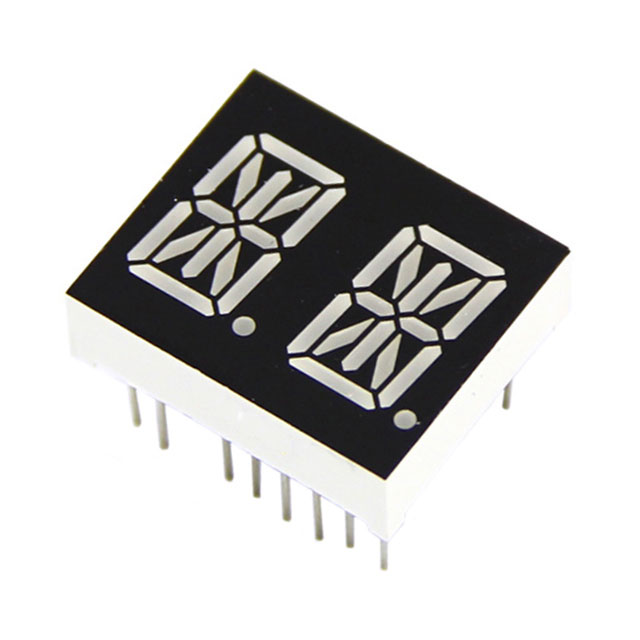

Seeed Technology Co., Ltd 104990123	0.6 in 15.24 mm 17 Leads	18-DIP	0.54 "	13.72 mm	2.2 V	20 mA	0.835 in	0.988 in	8.5 mm	25.1 mm	0.335 in	21.2 mm	2	571 nm	Yellow-Green	14-Segment Alphanumeric	50 mW	18 mcd	Common Anode
Seeed Technology Co., Ltd 104990119		18-DIP	0.8 in	20.32 mm	1.8 V	10 mA	0.787 in	1.091 "	8.5 mm	27.7 mm	0.335 in	20 mm		640 nm	Red	16-Segment Alphanumeric	100 mW	8 mcd	Common Cathode	1	15.24 mm	0.6 in
Seeed Technology Co., Ltd 104990130		18-DIP	0.8 in	20.32 mm	3 V	10 mA	0.787 in	1.091 "	8.5 mm	27.7 mm	0.335 in	20 mm		465 nm	White	16-Segment Alphanumeric		85.5 mcd	Common Anode	1	15.24 mm	0.6 in

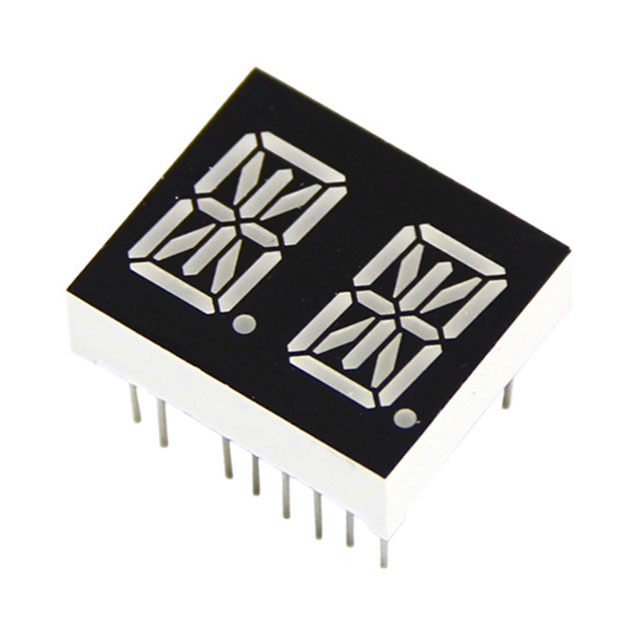

Seeed Technology Co., Ltd 104990122	0.6 in 15.24 mm 17 Leads	18-DIP	0.54 "	13.72 mm	2 V	20 mA	0.835 in	0.988 in	8.5 mm	25.1 mm	0.335 in	21.2 mm	2	633 nm	Red	14-Segment Alphanumeric	50 mW	25 mcd	Common Cathode
Seeed Technology Co., Ltd 104990121		18-DIP	0.54 "	13.72 mm	2 V	20 mA	0.835 in	0.988 in	8.5 mm	25.1 mm	0.335 in	21.2 mm	2	603 nm	Amber	14-Segment Alphanumeric	50 mW	105 mcd	Common Cathode		15.24 mm	0.6 in

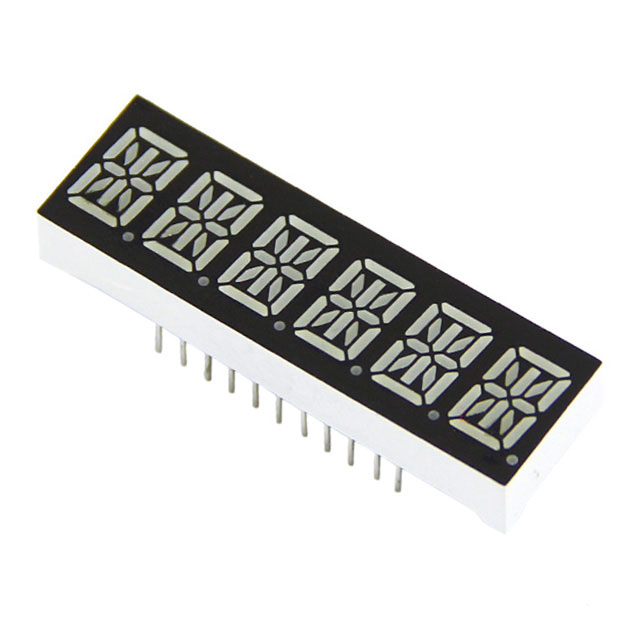

Seeed Technology Co., Ltd 104990117			0.4 in	10.16 mm									6		Red	14-Segment Alphanumeric			Common Cathode
Seeed Technology Co., Ltd 104990132		18-DIP	0.8 in	20.32 mm											Yellow	16-Segment Alphanumeric			Common Anode	1	15.24 mm	0.6 in
Seeed Technology Co., Ltd 104990131		18-DIP	0.8 in	20.32 mm	3.2 V	10 mA	0.787 in	1.091 "	8.5 mm	27.7 mm	0.335 in	20 mm		517 nm	Green	16-Segment Alphanumeric		250 mcd	Common Anode	1	15.24 mm	0.6 in
