2823411 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

28P,2MM,PL HDR,DRRT,2.8,0.76AU,T

Part	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish - Mating	Material Flammability Rating	Number of Rows	Number of Positions	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Termination	Contact Finish - Post	Connector Type	Shrouding	Insulation Color	Fastening Type	Contact Material
TE Connectivity Raychem Cable Protection 2-2823411-8	0.303 in	7.7 mm	All	Gold	UL94 V-0	2	28	Male Pin	125 °C	-40 °C	0.11 in	2.8 mm	2 A	Square	157.5 Áin	4 Ám	Board to Board Cable	0.079 in	2 mm	Thermoplastic	0.079 in	2 mm	125 VAC	30 Áin	0.76 Ám	Through Hole Right Angle	4 mm	0.157 in	Solder	Tin	Header	Shrouded - 2 Wall	Black	Latch Holder	Phosphor Bronze

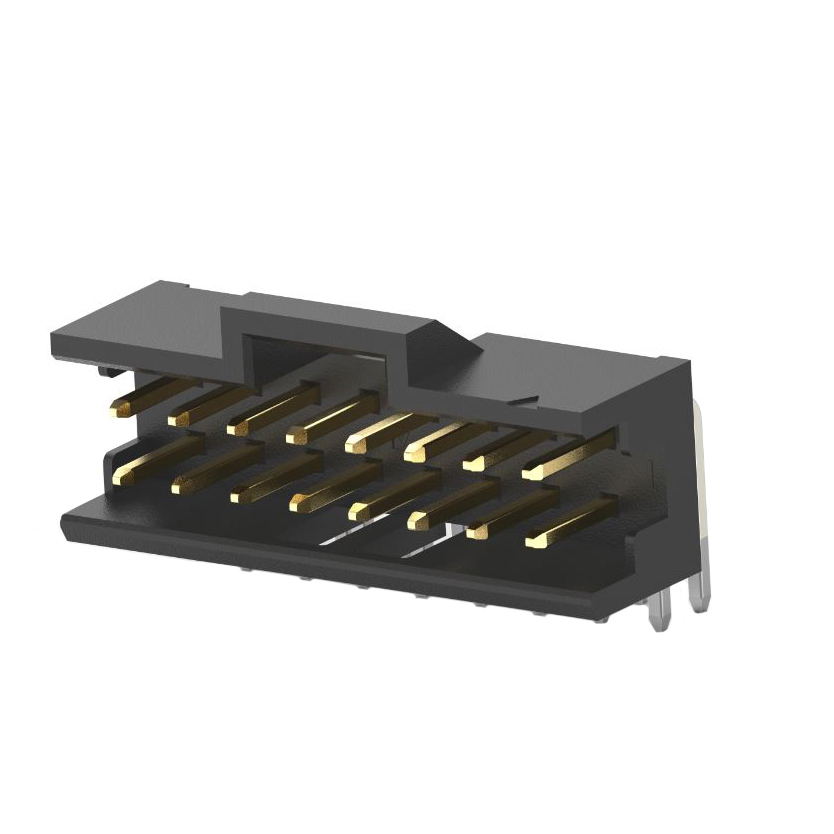

TE Connectivity Raychem Cable Protection 2-2823411-2	0.303 in	7.7 mm	All	Gold	UL94 V-0	2	22 positions	Male Pin	125 °C	-40 °C	0.11 in	2.8 mm	2 A	Square	157.5 Áin	4 Ám	Board to Board Cable	0.079 in	2 mm	Thermoplastic	0.079 in	2 mm	125 VAC	30 Áin	0.76 Ám	Through Hole Right Angle	4 mm	0.157 in	Solder	Tin	Header	Shrouded - 2 Wall	Black	Latch Holder	Phosphor Bronze

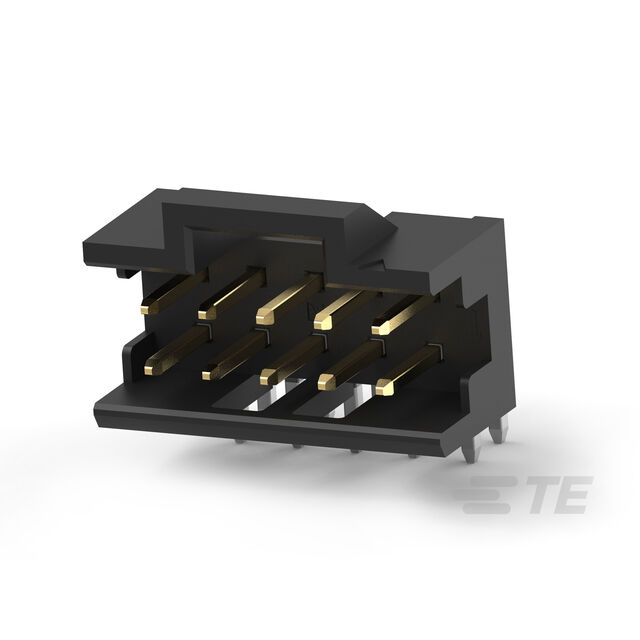

TE Connectivity Raychem Cable Protection 1-2823411-0	0.244 in	6.2 mm	All	Gold	UL94 V-0	2	10	Male Pin	125 °C	-40 °C	0.11 in	2.8 mm	2 A	Square	157.5 Áin	4 Ám	Board to Cable/Wire	0.079 in	2 mm	Thermoplastic	0.079 in	2 mm	125 VAC	30 Áin	0.76 Ám	Through Hole Right Angle	4 mm	0.157 in	Solder	Tin	Header	Shrouded - 4 Wall	Black	Latch Holder	Phosphor Bronze
