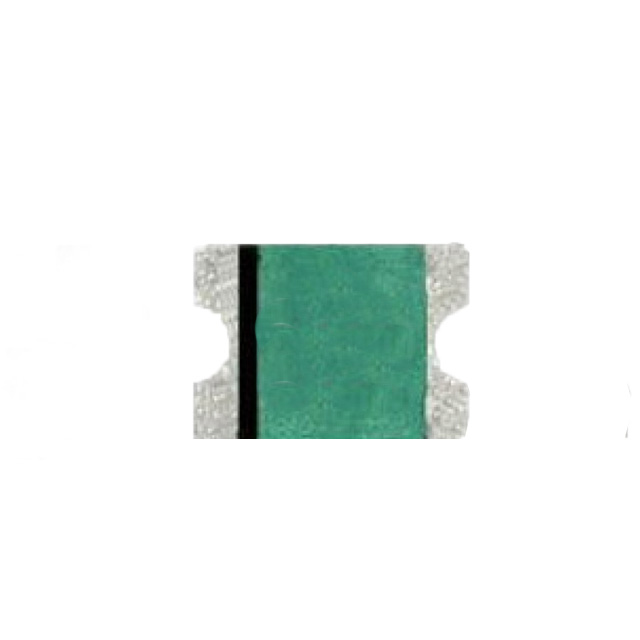

R1812 Series
Manufacturer: OptiFuse
Beta
⌘K
PTC RESET FUSE 24V 1.1A 1812
| Part | Package / Case | Time to Trip | Voltage - Max [Max] | Mounting Type | Current - Max [Max] | Resistance - Initial (Ri) (Min) [Min] | Current - Hold (Ih) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Resistance - Post Trip (R1) (Max) [Max] | Type | Current - Trip (It) | Thickness (Max) [Max] | Thickness (Max) [Max] | Approval Agency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OptiFuse | 1812 (4532 Metric) Concave | 500 ms | 24 V | Surface Mount | 100 A | 60 mOhms | 1.1 A | 85 °C | -40 C | 200 mOhms | Polymeric | 2.2 A | 1.3 mm | 0.051 in | cULus TUV | 0.179 in | 3.24 mm | 0.128 " | 4.55 mm |
