GRPB062 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 12POS 1.27MM

Part	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Shape	Insulation Material	Style	Fastening Type	Number of Positions Loaded	Termination	Shrouding	Number of Rows [custom]	Connector Type	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Type	Material Flammability Rating	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Post	Insulation Height	Insulation Height	Features

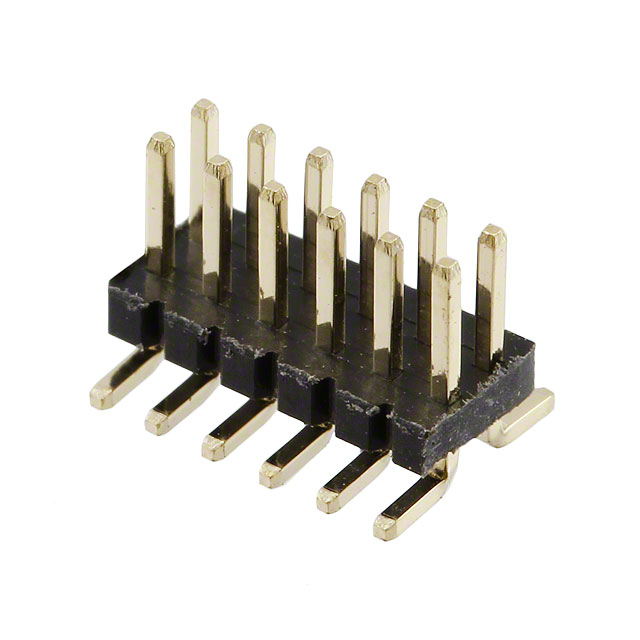

Sullins Connector Solutions GRPB062VWQS-RC	Flash	-40 C	105 ░C	Flash	3 mm	0.118 in	Gold	1 mm	0.039 in	Square	Nylon 9T Polyamide (PA9T)	Board to Board Cable	Push-Pull	All	Solder	Unshrouded	2	Header	Surface Mount	1.27 mm	0.05 in	Male Pin	UL94 V-0	12	0.05 in	1.27 mm	Brass	Gold
Sullins Connector Solutions GRPB062VWVN-RC	Flash	-40 C	105 ░C	Flash	3 mm	0.118 in	Gold	1 mm	0.039 in	Square	Nylon 9T Polyamide (PA9T)	Board to Board Cable	Push-Pull	All	Solder	Unshrouded	2	Header	Through Hole	1.27 mm	0.05 in	Male Pin	UL94 V-0	12	0.05 in	1.27 mm	Brass	Gold	0.091 "	2.3 mm	0.248 in	6.3 mm

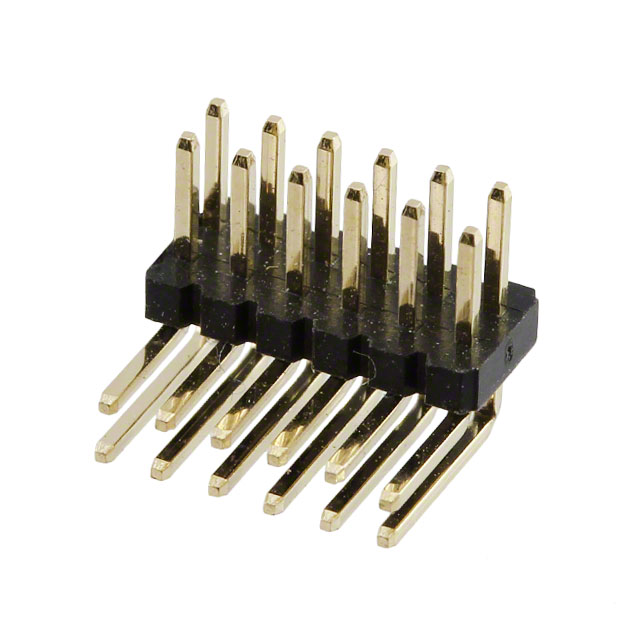

Sullins Connector Solutions GRPB062MWCN-RC	Flash	-40 C	105 ░C	Flash	3 mm	0.118 in	Gold			Square	Nylon 9T Polyamide (PA9T)	Board to Board Cable	Push-Pull	All	Solder	Unshrouded	2	Header	Right Angle Through Hole	1.27 mm	0.05 in	Male Pin	UL94 V-0	12	0.05 in	1.27 mm	Brass	Gold		2.5 mm			0.098 in	0.134 in	3.4 mm

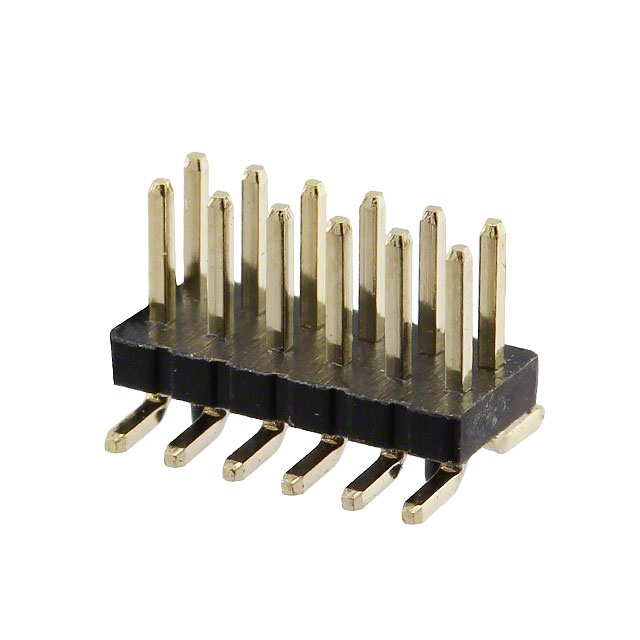

Sullins Connector Solutions GRPB062VWQP-RC	Flash	-40 C	105 ░C	Flash	3 mm	0.118 in	Gold	1 mm	0.039 in	Square	Nylon 9T Polyamide (PA9T)	Board to Board Cable	Push-Pull	All	Solder	Unshrouded	2	Header	Surface Mount	1.27 mm	0.05 in	Male Pin	UL94 V-0	12	0.05 in	1.27 mm	Brass	Gold								Board Guide
