LRA211 Series

Catalog

SWITCH ROCKER SPST 16A 125V

Part	Electrical Life	Circuit	Approval Agency	Current Rating (Amps)	Termination Style	Switch Function	Actuator Type	Actuator Marking	Illumination Voltage (Nominal)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - AC	Color - Actuator/Cap	Illumination Type, Color	Operating Temperature [Max]	Mounting Type	Illumination Type, Color [custom]	Illumination Type, Color [custom]
Carling Technologies LRA211-RA-B/125N	100000 Cycles	SPST	CSA UL VDE	16 A	Quick Connect - 0.250" (6.3mm)	On-Off	Concave (Curved) - Illuminated	No Marking	125 VAC	13.97 mm	28.58 mm	125 V	Amber	Neon Amber	85 °C	Panel Mount Snap-In
Carling Technologies LRA211-CR-B/125N	100000 Cycles	SPST	CSA UL VDE	16 A	Quick Connect - 0.250" (6.3mm)	On-Off	Concave (Curved) - Illuminated	No Marking	125 VAC	13.97 mm	28.58 mm	125 V	Red	Neon Red	85 °C	Panel Mount Snap-In
Carling Technologies LRA211-RA-B/125N/O-I	100000 Cycles	SPST	CSA UL VDE	16 A	Quick Connect - 0.250" (6.3mm)	On-Off	Concave (Curved) - Illuminated	O I	125 VAC	13.97 mm	28.58 mm	125 V	Amber	Neon Amber	85 °C	Panel Mount Snap-In
Carling Technologies LRA211-RS-W/125N	100000 Cycles	SPST	CSA UL VDE	16 A	Quick Connect - 0.250" (6.3mm)	On-Off	Concave (Curved) - Illuminated	No Marking	125 VAC	13.97 mm	28.58 mm	125 V	Red	Neon Red	85 °C	Panel Mount Snap-In
Carling Technologies LRA211-RS-1/125N	100000 Cycles	SPST	CSA UL VDE	16 A	Quick Connect - 0.250" (6.3mm)	On-Off	Concave (Curved) - Illuminated	No Marking	125 VAC	13.97 mm	28.58 mm	125 V	Red	Neon Red	85 °C	Panel Mount Snap-In

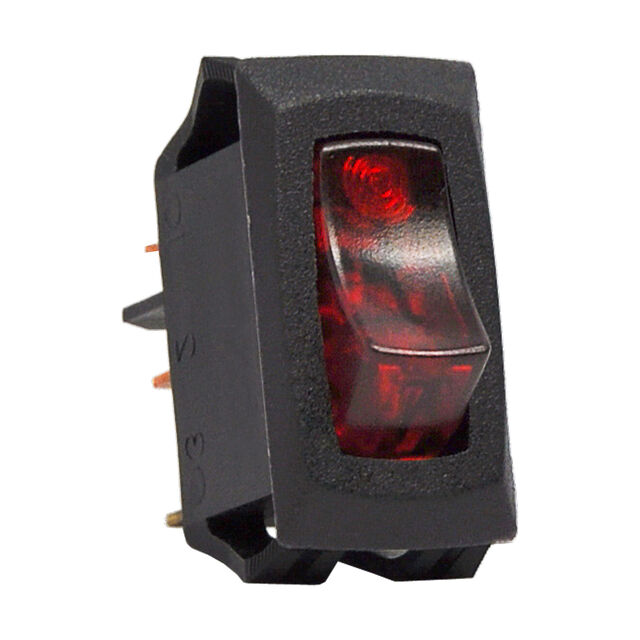

Carling Technologies LRA211-CA-B/125N	100000 Cycles	SPST	CSA UL VDE	16 A	Quick Connect - 0.250" (6.3mm)	On-Off	Concave (Curved) - Illuminated	No Marking	125 VAC	13.97 mm	28.58 mm	125 V	Amber	Neon Amber	85 °C	Panel Mount Snap-In
Carling Technologies LRA211-RC-B/125N	100000 Cycles	SPST	CSA UL VDE	16 A	Quick Connect - 0.250" (6.3mm)	On-Off	Concave (Curved) - Illuminated	No Marking	125 VAC	13.97 mm	28.58 mm	125 V	White	Neon White	85 °C	Panel Mount Snap-In
Carling Technologies LRA211-CG-B/125N/O-I	100000 Cycles	SPST	CSA UL VDE	16 A	Quick Connect - 0.250" (6.3mm)	On-Off	Concave (Curved) - Illuminated	O I	125 VAC	13.97 mm	28.58 mm	125 V	Green		85 °C	Panel Mount Snap-In	Neon	Green
Carling Technologies LRA211-CR-1/125N	100000 Cycles	SPST	CSA UL VDE	16 A	Quick Connect - 0.250" (6.3mm)	On-Off	Concave (Curved) - Illuminated	No Marking	125 VAC	13.97 mm	28.58 mm	125 V	Red	Neon Red	85 °C	Panel Mount Snap-In
Carling Technologies LRA211-CR-W/125N	100000 Cycles	SPST	CSA UL VDE	16 A	Quick Connect - 0.250" (6.3mm)	On-Off	Concave (Curved) - Illuminated	No Marking	125 VAC	13.97 mm	28.58 mm	125 V	Red	Neon Red	85 °C	Panel Mount Snap-In
