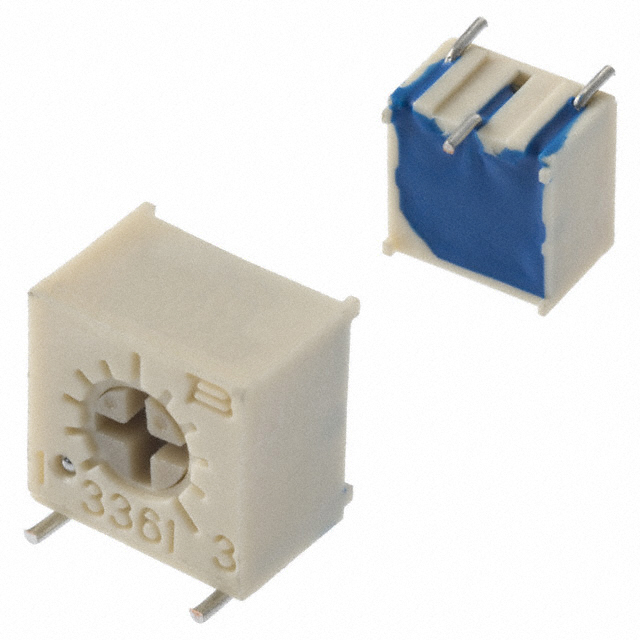

3361S Series

Catalog

TRIMMER 2K OHM 0.5W GW SIDE ADJ

Part	Resistance	Adjustment Type	Power (Watts)	Power (Watts)	Tolerance	Termination Style	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Mounting Type	Resistive Material	Number of Turns
Bourns Inc. 3361S-1-202G	2 kOhms	Side Adjustment	0.5 W	0.5 W	10 %	Gull Wing	7.37 mm	Face	6.71 mm	0.264 in	0.29 in	100 ppm/°C	Surface Mount	Cermet	1
Bourns Inc. 3361S-1-102G	1000 Ohms	Side Adjustment	0.5 W	0.5 W	10 %	Gull Wing	7.37 mm	Face	6.71 mm	0.264 in	0.29 in	100 ppm/°C	Surface Mount	Cermet	1
Bourns Inc. 3361S-1-205GLF	2 MOhms	Side Adjustment	0.5 W	0.5 W	10 %	Gull Wing	7.37 mm	Face	6.71 mm	0.264 in	0.29 in	100 ppm/°C	Surface Mount	Cermet	1
Bourns Inc. 3361S-1-103GLF	10000 Ohms	Side Adjustment	0.5 W	0.5 W	10 %	Gull Wing	7.37 mm	Face	6.71 mm	0.264 in	0.29 in	100 ppm/°C	Surface Mount	Cermet	1
Bourns Inc. 3361S-1-200G	20 Ohms	Side Adjustment	0.5 W	0.5 W	10 %	Gull Wing	7.37 mm	Face	6.71 mm	0.264 in	0.29 in	100 ppm/°C	Surface Mount	Cermet	1
Bourns Inc. 3361S-1-100G	10 Ohms	Side Adjustment	0.5 W	0.5 W	10 %	Gull Wing	7.37 mm	Face	6.71 mm	0.264 in	0.29 in	100 ppm/°C	Surface Mount	Cermet	1
Bourns Inc. 3361S-1-254GLF	250000 Ohms	Side Adjustment	0.5 W	0.5 W	10 %	Gull Wing	7.37 mm	Face	6.71 mm	0.264 in	0.29 in	100 ppm/°C	Surface Mount	Cermet	1
Bourns Inc. 3361S-1-105GLF	1 MOhms	Side Adjustment	0.5 W	0.5 W	10 %	Gull Wing	7.37 mm	Face	6.71 mm	0.264 in	0.29 in	100 ppm/°C	Surface Mount	Cermet	1
Bourns Inc. 3361S-1-500G	50 Ohms	Side Adjustment	0.5 W	0.5 W	10 %	Gull Wing	7.37 mm	Face	6.71 mm	0.264 in	0.29 in	100 ppm/°C	Surface Mount	Cermet	1
Bourns Inc. 3361S-1-254G	250000 Ohms	Side Adjustment	0.5 W	0.5 W	10 %	Gull Wing	7.37 mm	Face	6.71 mm	0.264 in	0.29 in	100 ppm/°C	Surface Mount	Cermet	1
