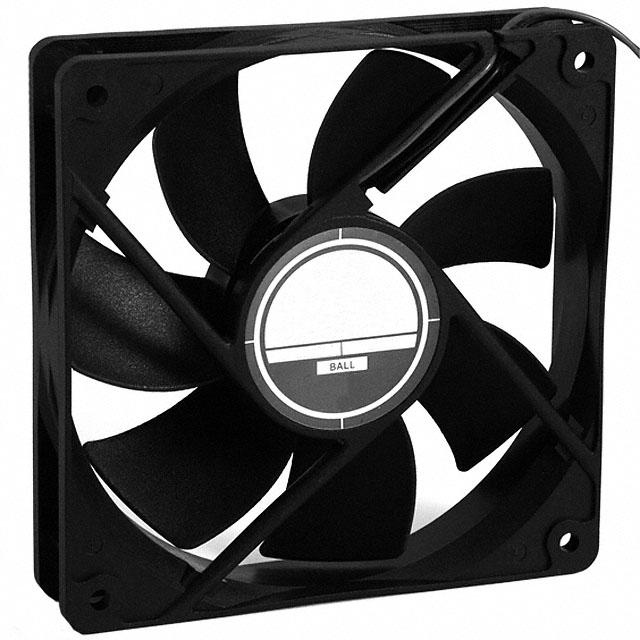

OD1225 Series

Catalog

FAN AXIAL 120X25MM 12VDC WIRE

...

Part	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Features	Operating Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	RPM	Approval Agency	Fan Type	Termination	Width [y]	Noise	Voltage - Rated	Weight [custom]	Weight [custom]	Power (Watts)	Static Pressure	Static Pressure	Ingress Protection
ORION FANS OD1225-12LB5	0.2 A	8 V	13.8 VDC	Polybutylene Terephthalate (PBT)	60000 Hrs	120 mm	120 mm	70 CFM	1.96 m³/min	Auto Restart PWM Control	(-20 ~ 65°C)	-20 ░C	65 °C	Ball	1900 RPM	CE cURus TUV UR	Tubeaxial	3 Wire Leads	25 mm	25 dB(A)	12 VDC	154.67 g	0.341 lb
ORION FANS OD1225-12LS02A	0.2 A			Polybutylene Terephthalate (PBT)		120 mm	120 mm	70 CFM	1.96 m³/min	Auto Restart Locked Rotor Sensor		-10 °C	70 °C	Sleeve	1900 RPM	cURus TUV	Tubeaxial	3 Wire Leads	25 mm	25 dB(A)	12 VDC	154.67 g	0.341 lb
ORION FANS OD1225-12MS	0.35 A			Polybutylene Terephthalate (PBT)		120 mm	120 mm	90 CFM	2.52 m³/min	Auto Restart		-10 °C	70 °C	Sleeve	2500 RPM	cURus TUV	Tubeaxial	2 Wire Leads	25 mm	35 dB	12 VDC	154.67 g	0.341 lb	4 W	47.3 Pa	0.19 in H2O
ORION FANS OD1225-12LB	0.2 A	8 V	13.8 VDC	Polybutylene Terephthalate (PBT)	60000 Hrs	120 mm	120 mm	70 CFM	1.96 m³/min	Auto Restart	(-20 ~ 65°C)	-20 ░C	65 °C	Ball	1900 RPM	CE cURus TUV UR	Tubeaxial	2 Wire Leads	25 mm	25 dB(A)	12 VDC	154.67 g	0.341 lb
ORION FANS OD1225-12HBIP5501A	0.45 A	8 V	13.8 VDC	Polybutylene Terephthalate (PBT)	40 °C 60000 Hrs	120 mm	120 mm	120 CFM	3.36 m³/min	Auto Restart Speed Sensor (Tach)	(-20 ~ 65°C)	-20 ░C	65 °C	Ball	3100 RPM	CE cURus TUV UR	Tubeaxial	3 Wire Leads	25 mm	42 dB	12 VDC	154.67 g	0.341 lb	5.4 Watts	59.8 Pa	0.24 in H2O	IP55 - Dust Protected Water Resistant
ORION FANS OD1225-24HS	320 mA			Polybutylene Terephthalate (PBT)		120 mm	120 mm	120 CFM	3.36 m³/min	Auto Restart		-10 °C	70 °C	Sleeve	3100 RPM	cURus TUV	Tubeaxial	2 Wire Leads	25 mm	42 dB	24 VDC	154.67 g	0.341 lb	7.7 W	59.8 Pa	0.24 in H2O
ORION FANS OD1225-12HSS	0.45 A			Polybutylene Terephthalate (PBT)		120 mm	120 mm	85 CFM	2.38 m³/min	Auto Restart		-10 °C	70 °C	Sealed Sleeve	3100 RPM	cURus TUV	Tubeaxial	2 Wire Leads	25 mm	42 dB	12 VDC	154.67 g	0.341 lb	5.4 Watts	59.8 Pa	0.24 in H2O
ORION FANS OD1225-24LSS02A	100 mA			Polybutylene Terephthalate (PBT)		120 mm	120 mm	70 CFM	1.96 m³/min	Auto Restart Locked Rotor Sensor		-10 °C	70 °C	Sealed Sleeve	1900 RPM	cURus TUV	Tubeaxial	3 Wire Leads	25 mm	25 dB(A)	24 VDC	154.67 g	0.341 lb	2.4 W
ORION FANS OD1225-12HBIP55	0.45 A	8 V	13.8 VDC	Polybutylene Terephthalate (PBT)	40 °C 60000 Hrs	120 mm	120 mm	120 CFM	3.36 m³/min	Auto Restart	(-20 ~ 65°C)	-20 ░C	65 °C	Ball	3100 RPM	CE cURus TUV UR	Tubeaxial	2 Wire Leads	25 mm	42 dB	12 VDC	154.67 g	0.341 lb	5.4 Watts	59.8 Pa	0.24 in H2O	IP55 - Dust Protected Water Resistant
ORION FANS OD1225-24LSS	100 mA			Polybutylene Terephthalate (PBT)		120 mm	120 mm	70 CFM	1.96 m³/min	Auto Restart		-10 °C	70 °C	Sealed Sleeve	1900 RPM	cURus TUV	Tubeaxial	2 Wire Leads	25 mm	25 dB(A)	24 VDC	154.67 g	0.341 lb	2.4 W
