UT072 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSG FMALE 35POS PNL MT

Part	Mounting Feature	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Insert Material	Connector Type	Contact Size	Number of Positions	Note	Fastening Type	Mounting Type	Type	Shell Material	Contact Shape	Housing Color	Contact Type	Shell Finish	Shielding	Ingress Protection Description	Ingress Protection IP Rating	Orientation

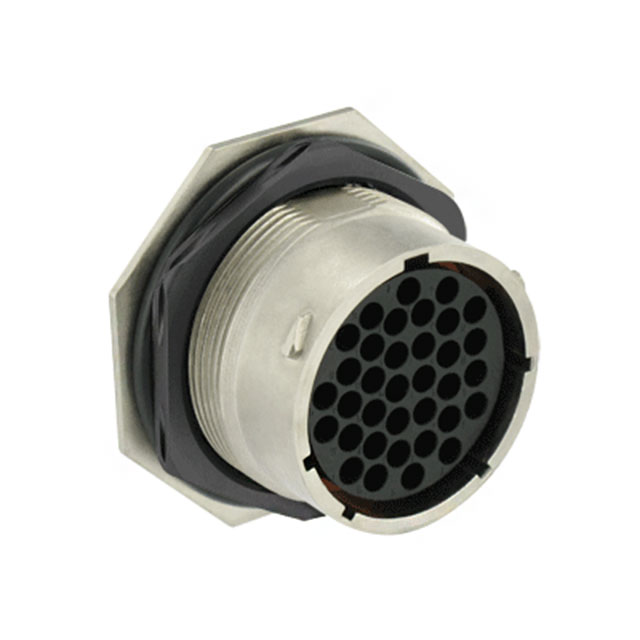

Amphenol Aerospace Operations UT072235SH601	Bulkhead Front Side Nut	-40 °C	105 °C	UL94 V-0	22	35	Glass Filled Thermoplastic	Receptacle Housing	16 S	35	Contacts Not Included	Bayonet Lock	Panel Mount	For Female Sockets	Halogen Free Zinc Alloy	Circular	Silver	Crimp Solder	Nickel	Shielded	Dust Tight Water Resistant Waterproof	IP68 IP69K	N (Normal)

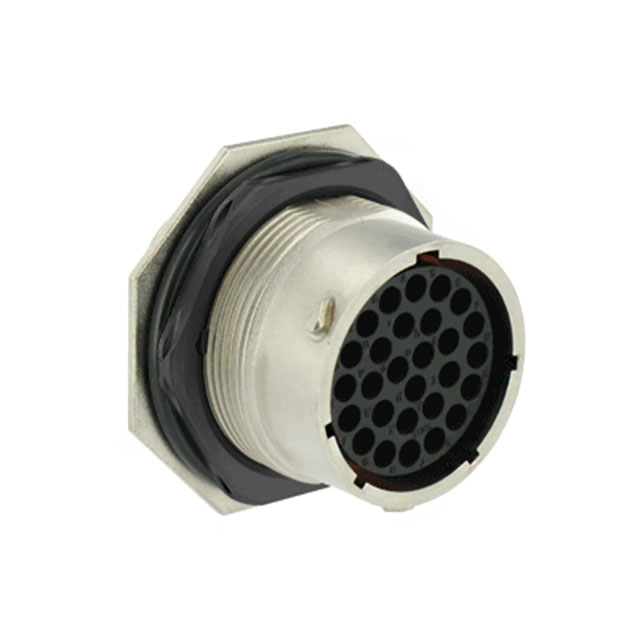

Amphenol Aerospace Operations UT072028SH601	Bulkhead Front Side Nut	-40 °C	105 °C	UL94 V-0	20	28	Glass Filled Thermoplastic	Receptacle Housing	16 S	28	Contacts Not Included	Bayonet Lock	Panel Mount	For Female Sockets	Halogen Free Zinc Alloy	Circular	Silver	Crimp Solder	Nickel	Shielded	Dust Tight Water Resistant Waterproof	IP68 IP69K	N (Normal)

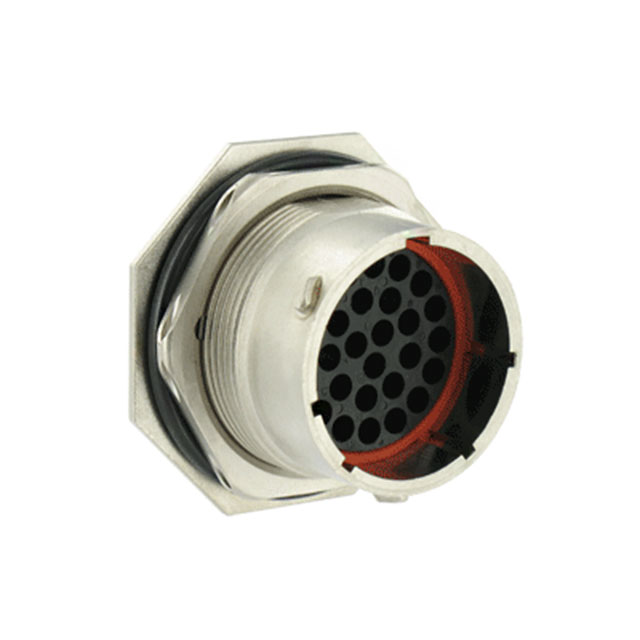

Amphenol Aerospace Operations UT072028PH6	Bulkhead Front Side Nut	-40 °C	105 °C	UL94 V-0	20	28	Glass Filled Thermoplastic	Receptacle Housing	16 S	28	Contacts Not Included	Bayonet Lock	Panel Mount	For Male Pins	Halogen Free Zinc Alloy	Circular	Silver	Crimp Solder	Nickel	Shielded	Dust Tight Water Resistant Waterproof	IP68 IP69K	N (Normal)

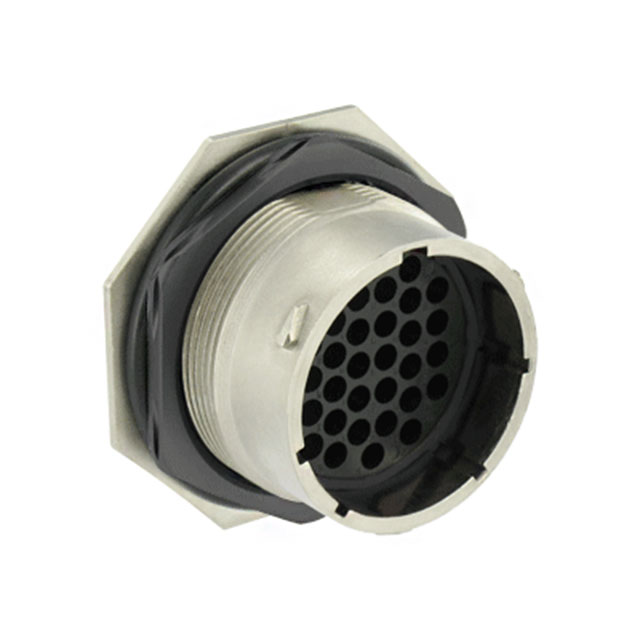

Amphenol Aerospace Operations UT072235PH01	Bulkhead Front Side Nut	-40 °C	105 °C	UL94 V-0	22	35	Glass Filled Thermoplastic	Receptacle Housing	16 S	35	Contacts Not Included	Bayonet Lock	Panel Mount	For Male Pins	Halogen Free Zinc Alloy	Circular	Silver	Crimp Solder	Nickel	Shielded	Dust Tight Waterproof	IP67	N (Normal)
Amphenol Aerospace Operations UT072235SH01	Bulkhead Front Side Nut	-40 °C	105 °C	UL94 V-0	22	35	Glass Filled Thermoplastic	Receptacle Housing	16 S	35	Contacts Not Included	Bayonet Lock	Panel Mount	For Female Sockets	Halogen Free Zinc Alloy	Circular	Silver	Crimp Solder	Nickel	Shielded	Dust Tight Waterproof	IP67	N (Normal)

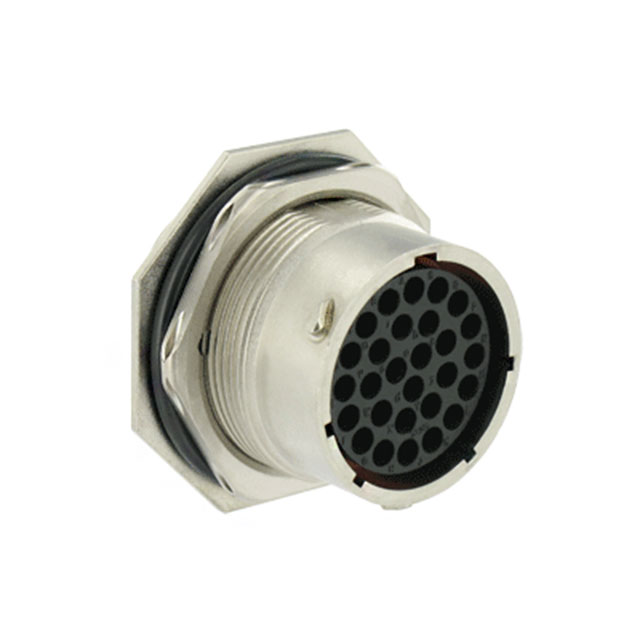

Amphenol Aerospace Operations UT072028SH6	Bulkhead Front Side Nut	-40 °C	105 °C	UL94 V-0	20	28	Glass Filled Thermoplastic	Receptacle Housing	16 S	28	Contacts Not Included	Bayonet Lock	Panel Mount	For Female Sockets	Halogen Free Zinc Alloy	Circular	Silver	Crimp Solder	Nickel	Shielded	Dust Tight Water Resistant Waterproof	IP68 IP69K	N (Normal)

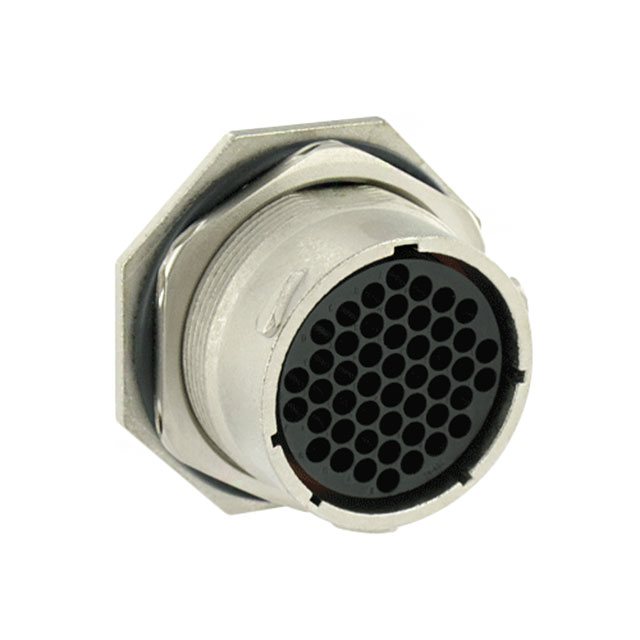

Amphenol Aerospace Operations UT072448SH6	Bulkhead Front Side Nut	-40 °C	105 °C	UL94 V-0	24	48	Glass Filled Thermoplastic	Receptacle Housing	16 S	48	Contacts Not Included	Bayonet Lock	Panel Mount	For Female Sockets	Halogen Free Zinc Alloy	Circular	Silver	Crimp Solder	Nickel	Shielded	Dust Tight Water Resistant Waterproof	IP68 IP69K	N (Normal)

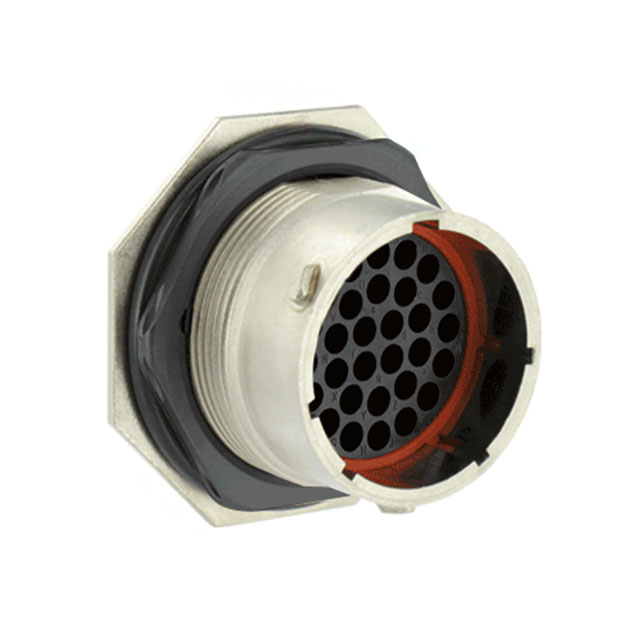

Amphenol Aerospace Operations UT072030PH601	Bulkhead Front Side Nut	-40 °C	105 °C	UL94 V-0	20	30	Glass Filled Thermoplastic	Receptacle Housing	16 S	30	Contacts Not Included	Bayonet Lock	Panel Mount	For Male Pins	Halogen Free Zinc Alloy	Circular	Silver	Crimp Solder	Nickel	Shielded	Dust Tight Water Resistant Waterproof	IP68 IP69K	N (Normal)

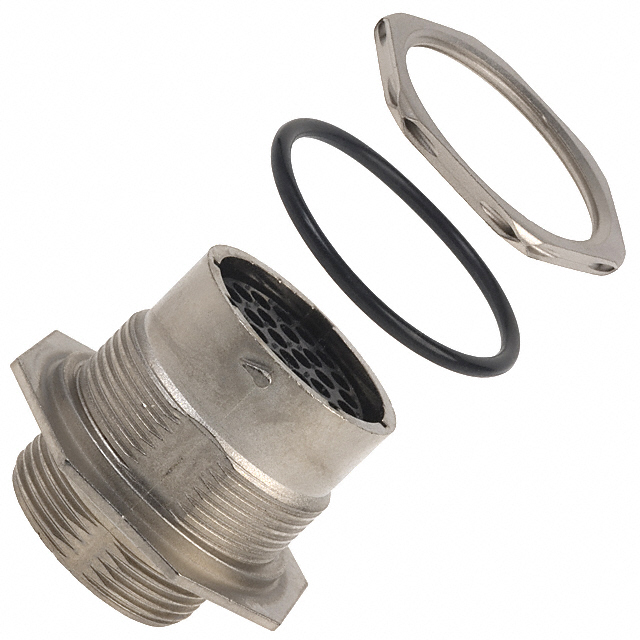

Amphenol Aerospace Operations UT072028SH	Bulkhead Front Side Nut	-40 °C	105 °C	UL94 V-0	20	28	Glass Filled Thermoplastic	Receptacle Housing	16 S	28	Contacts Not Included	Bayonet Lock	Panel Mount	For Female Sockets	Halogen Free Zinc Alloy	Circular	Silver	Crimp Solder	Nickel	Shielded	Dust Tight Waterproof	IP67	N (Normal)

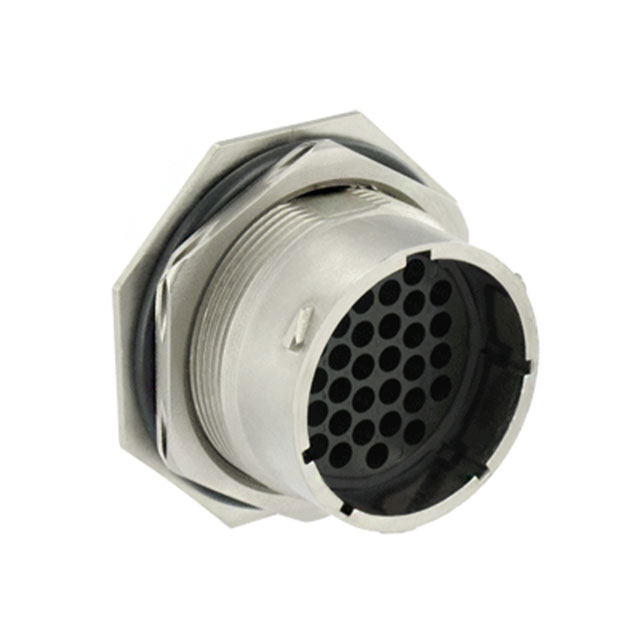

Amphenol Aerospace Operations UT072235PH	Bulkhead Front Side Nut	-40 °C	105 °C	UL94 V-0	22	35	Glass Filled Thermoplastic	Receptacle Housing	16 S	35	Contacts Not Included	Bayonet Lock	Panel Mount	For Male Pins	Halogen Free Zinc Alloy	Circular	Silver	Crimp Solder	Nickel	Shielded	Dust Tight Waterproof	IP67	N (Normal)
