LP5990 Series

Catalog

KIT EVALUATION FOR LP5990 2.8V

Part	Regulator Type	Supplied Contents	Utilized IC / Part	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Channels per IC	Current - Output	Board Type	Current - Quiescent (Iq)	Supplier Device Package	PSRR	Output Configuration	Mounting Type	Number of Regulators	Voltage - Input (Max) [Max]	Output Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Voltage Dropout (Max) [Max]	Protection Features	Voltage - Output (Min/Fixed)

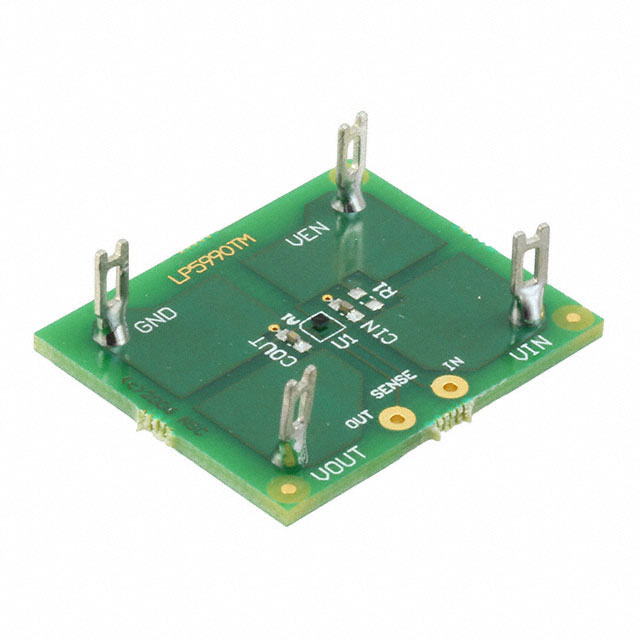

Texas Instruments LP5990TM-2.8EV	Positive Fixed	Board(s)	LP5990	2.8 V	2.2 V	5.5 V	1 - Single	200 mA	Fully Populated
Texas Instruments LP5990TMX-3.0/NOPB								200 mA		75 µA	4-DSBGA	55 dB	Positive	Surface Mount	1	5.5 V	1.81 mOhm	4-WFBGA DSBGA	85 °C	-40 °C	Enable	0.25 V	Over Current Over Temperature Short Circuit
Texas Instruments LP5990TMX-1.2/NOPB								200 mA		75 µA	4-DSBGA	55 dB	Positive	Surface Mount	1	5.5 V	1.81 mOhm	4-WFBGA DSBGA	85 °C	-40 °C	Enable	0.25 V	Over Current Over Temperature Short Circuit	1.2 V
Texas Instruments LP5990TMX-3.3/NOPB								200 mA		75 µA	4-DSBGA	55 dB	Positive	Surface Mount	1	5.5 V	1.81 mOhm	4-WFBGA DSBGA	85 °C	-40 °C	Enable	0.25 V	Over Current Over Temperature Short Circuit	3.3 V
Texas Instruments LP5990TM-3.3/NOPB								200 mA		75 µA	4-DSBGA	55 dB	Positive	Surface Mount	1	5.5 V	1.81 mOhm	4-WFBGA DSBGA	85 °C	-40 °C	Enable	0.25 V	Over Current Over Temperature Short Circuit	3.3 V
Texas Instruments LP5990TM-3.6/NOPB								200 mA		75 µA	4-DSBGA	55 dB	Positive	Surface Mount	1	5.5 V	1.81 mOhm	4-WFBGA DSBGA	85 °C	-40 °C	Enable	0.25 V	Over Current Over Temperature Short Circuit	3.6 V

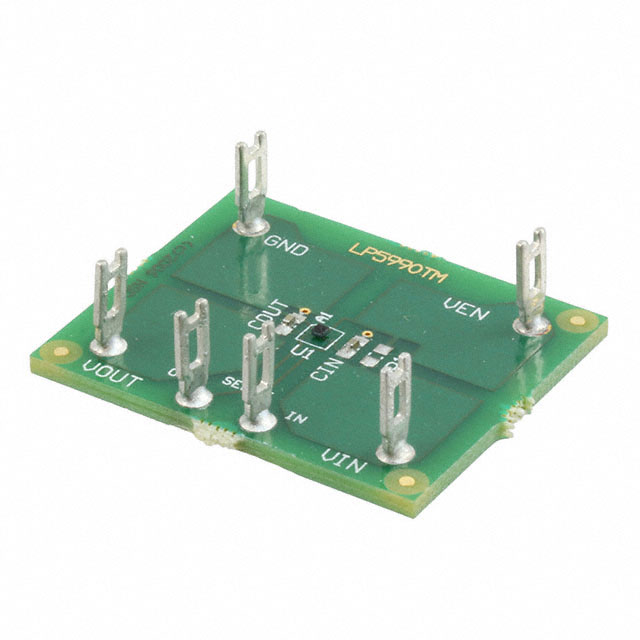

Texas Instruments LP5990TM-1.8EV	Positive Fixed	Board(s)	LP5990	1.8 V	2.2 V	5.5 V	1 - Single	200 mA	Fully Populated
Texas Instruments LP5990TMX-3.6/NOPB								200 mA		75 µA	4-DSBGA	55 dB	Positive	Surface Mount	1	5.5 V	1.81 mOhm	4-WFBGA DSBGA	85 °C	-40 °C	Enable	0.25 V	Over Current Over Temperature Short Circuit	3.6 V
Texas Instruments LP5990TMX-2.8/NOPB								200 mA		75 µA	4-DSBGA	55 dB	Positive	Surface Mount	1	5.5 V	1.81 mOhm	4-WFBGA DSBGA	85 °C	-40 °C	Enable	0.25 V	Over Current Over Temperature Short Circuit	2.8 V
