LE CW E3 Series

Catalog

LED MOD OSTAR STARBOARD

Part	Viewing Angle	Size / Dimension [diameter]	Configuration	Current - Max [Max]	Lens Type	Voltage - Forward (Vf) (Typ)	Temperature - Test	Type	Height [z]	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Color	CCT (K)	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature

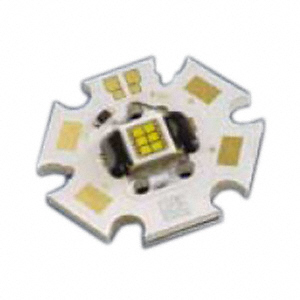

ams-OSRAM USA INC. LE CW E3A-MYPY-SRTU	120 °	19.9 mm	Starboard	1 A	Flat	20.8 V	25 °C	LED Module	2.53 mm	2.11 mm	2.11 mm

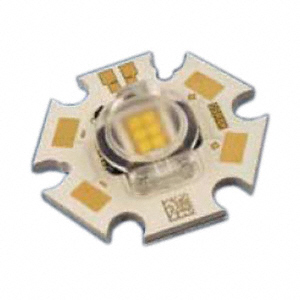

ams-OSRAM USA INC. LE CW E3B-NYPZ-QRRU	130 °	19.9 mm	Starboard	1 A	Flat	20.8 V	25 °C	LED Module	5.25 mm			Warm White	3500 K	80	710 lm	330 lm	36 lm/W	2 mm
ams-OSRAM USA INC. LE CW E3A-MXPX-URVU	120 °	19.9 mm	Starboard	1 A	Flat	20.8 V	25 °C	LED Module	2.53 mm	2.11 mm	2.11 mm
ams-OSRAM USA INC. LE CW E3B-NYPZ-SRTU	130 °	19.9 mm	Starboard	1 A	Flat	20.8 V	25 °C	LED Module	5.25 mm			Warm White	3000 K	80	710 lm	330 lm	36 lm/W	2 mm
ams-OSRAM USA INC. LE CW E3B-NXPY-URVU	130 °	19.9 mm	Starboard	1 A	Flat	20.8 V	25 °C	LED Module	5.25 mm			Warm White	2700 K	80			31 lm/W	2 mm	445 lm
ams-OSRAM USA INC. LE CW E3A-MZPY-ORPU	120 °	19.9 mm	Starboard	1 A	Flat	20.8 V	25 °C	LED Module	2.53 mm	2.11 mm	2.11 mm
ams-OSRAM USA INC. LE CW E3A-MZPY-QRRU	120 °	19.9 mm	Starboard	1 A	Flat	20.8 V	25 °C	LED Module	2.53 mm	2.11 mm	2.11 mm
ams-OSRAM USA INC. LE CW E3B-NZQX-MRNU	130 °	19.9 mm	Starboard	1 A	Flat	20.8 V	25 °C	LED Module	5.25 mm			Neutral White		80	820 lm	390 lm	42 lm/W	2 mm	605 lm
