GRPB012 Series

Catalog

CONN HEADER R/A 2POS

Part	Contact Finish Thickness - Post	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Post	Termination	Insulation Material	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Shape	Style	Contact Material	Connector Type	Contact Type	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Height [z]	Insulation Height [z]

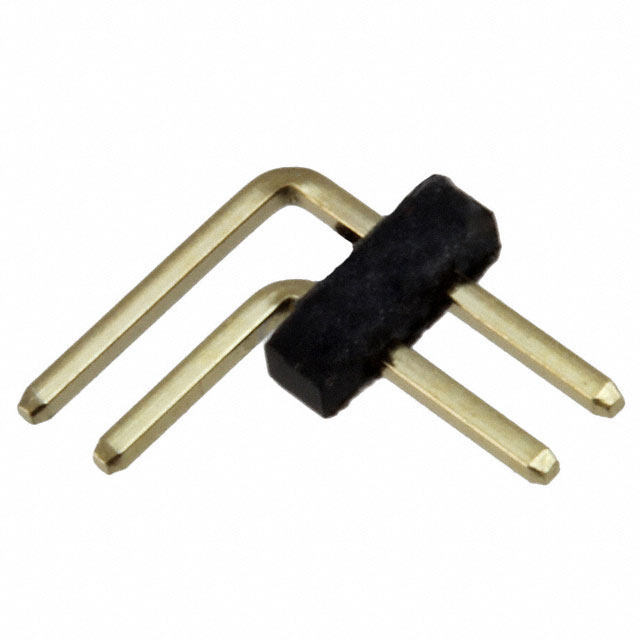

Sullins Connector Solutions GRPB012MWCN-RC	Flash	2	2.5 mm	0.098 in	2	UL94 V-0	All	Gold	Solder	Nylon 9T Polyamide (PA9T)	3 mm	0.118 in	0.134 in	3.4 mm	Square	Board to Board Cable	Brass	Header	Male Pin	Unshrouded	-40 C	105 ░C	Right Angle Through Hole	Gold	Flash	Push-Pull	0.05 in	1.27 mm

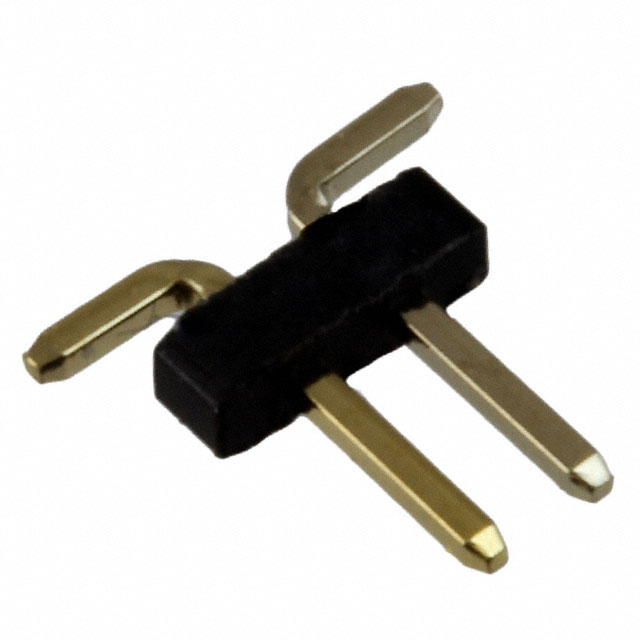

Sullins Connector Solutions GRPB012VWQS-RC	Flash	2			2	UL94 V-0	All	Gold	Solder	Nylon 9T Polyamide (PA9T)	3 mm	0.118 in			Square	Board to Board Cable	Brass	Header	Male Pin	Unshrouded	-40 C	105 ░C	Surface Mount	Gold	Flash	Push-Pull	0.05 in	1.27 mm	1 mm	0.039 in
