86840 Series

Catalog

CONN HEADER R/A 64POS 2.54MM

Part	Connector Type	Number of Rows	Shrouding	Contact Material	Number of Positions Loaded	Mounting Type	Contact Shape	Termination	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Fastening Type	Number of Positions	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Finish - Post	Contact Type	Contact Finish - Mating	Number of Positions

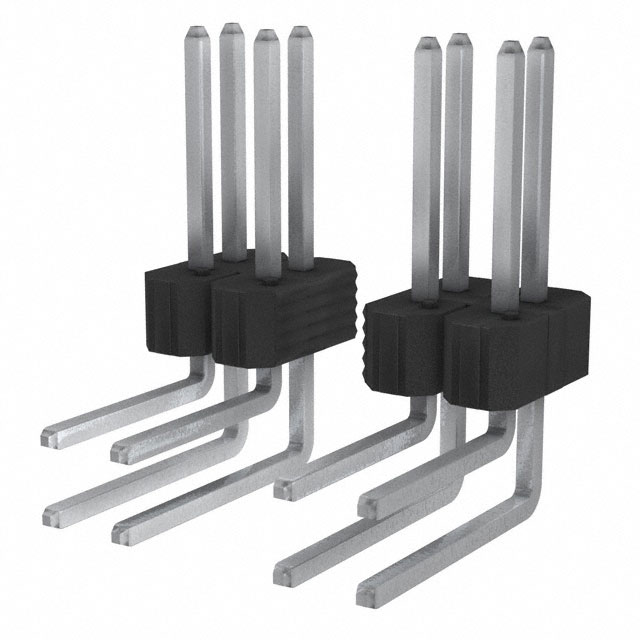

Amphenol ICC (FCI) 86840-464HLF	Header	2	Unshrouded	Phosphor Bronze	All	Through Hole Right Angle	Square	Solder	0.318 "	8.08 mm	0.23 in	5.84 mm	Push-Pull	64	Black	0.1 in	2.54 mm	2.54 çm	100 çin	UL94 V-0	110 VDC	5 A	2.54 mm	0.1 in	4.83 mm	0.19 in	Tin	Male Pin
Amphenol ICC (FCI) 86840-414HLF	Header	2	Unshrouded	Phosphor Bronze	All	Through Hole Right Angle	Square	Solder	0.318 "	8.08 mm	0.23 in	5.84 mm	Push-Pull	14	Black	0.1 in	2.54 mm	2.54 çm	100 çin	UL94 V-0	110 VDC	5 A	2.54 mm	0.1 in	4.83 mm	0.19 in	Tin	Male Pin

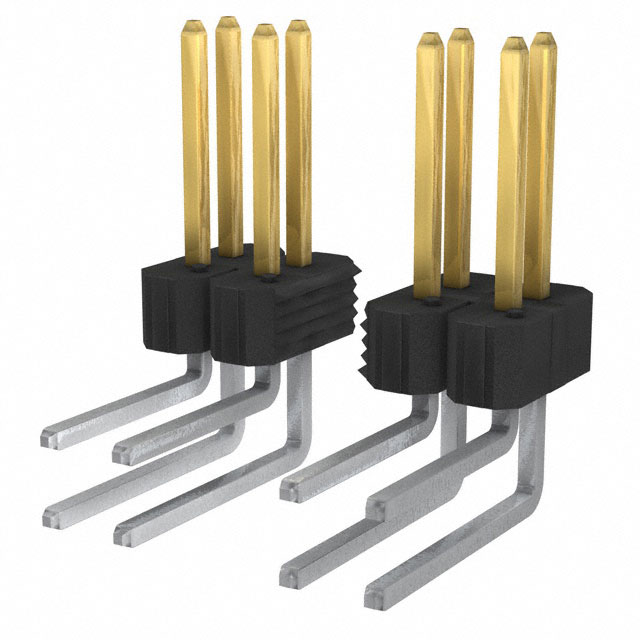

Amphenol ICC (FCI) 86840-162HLF	Header	2	Unshrouded	Phosphor Bronze	All	Through Hole Right Angle	Square	Solder	0.318 "	8.08 mm	0.23 in	5.84 mm	Push-Pull	62	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	UL94 V-0	110 VDC	5 A	2.54 mm	0.1 in	4.83 mm	0.19 in		Male Pin	Gold or Gold GXT™
Amphenol ICC (FCI) 86840-128HLF	Header	2	Unshrouded	Phosphor Bronze	All	Through Hole Right Angle	Square	Solder	0.318 "	8.08 mm	0.23 in	5.84 mm	Push-Pull	28	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	UL94 V-0	110 VDC	5 A	2.54 mm	0.1 in	4.83 mm	0.19 in		Male Pin	Gold or Gold GXT™
Amphenol ICC (FCI) 86840-158HLF	Header	2	Unshrouded	Phosphor Bronze	All	Through Hole Right Angle	Square	Solder	0.318 "	8.08 mm	0.23 in	5.84 mm	Push-Pull	58	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	UL94 V-0	110 VDC	5 A	2.54 mm	0.1 in	4.83 mm	0.19 in		Male Pin	Gold or Gold GXT™
Amphenol ICC (FCI) 86840-416HLF	Header	2	Unshrouded	Phosphor Bronze	All	Through Hole Right Angle	Square	Solder	0.318 "	8.08 mm	0.23 in	5.84 mm	Push-Pull		Black	0.1 in	2.54 mm	2.54 çm	100 çin	UL94 V-0	110 VDC	5 A	2.54 mm	0.1 in	4.83 mm	0.19 in	Tin	Male Pin		16
Amphenol ICC (FCI) 86840-136HLF	Header	2	Unshrouded	Phosphor Bronze	All	Through Hole Right Angle	Square	Solder	0.318 "	8.08 mm	0.23 in	5.84 mm	Push-Pull	36	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	UL94 V-0	110 VDC	5 A	2.54 mm	0.1 in	4.83 mm	0.19 in		Male Pin	Gold or Gold GXT™
Amphenol ICC (FCI) 86840-452HLF	Header	2	Unshrouded	Phosphor Bronze	All	Through Hole Right Angle	Square	Solder	0.318 "	8.08 mm	0.23 in	5.84 mm	Push-Pull	52	Black	0.1 in	2.54 mm	2.54 çm	100 çin	UL94 V-0	110 VDC	5 A	2.54 mm	0.1 in	4.83 mm	0.19 in	Tin	Male Pin
Amphenol ICC (FCI) 86840-132HLF	Header	2	Unshrouded	Phosphor Bronze	All	Through Hole Right Angle	Square	Solder	0.318 "	8.08 mm	0.23 in	5.84 mm	Push-Pull		Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	UL94 V-0	110 VDC	5 A	2.54 mm	0.1 in	4.83 mm	0.19 in		Male Pin	Gold or Gold GXT™
Amphenol ICC (FCI) 86840-150HLF	Header	2	Unshrouded	Phosphor Bronze	All	Through Hole Right Angle	Square	Solder	0.318 "	8.08 mm	0.23 in	5.84 mm	Push-Pull	50	Black	0.1 in	2.54 mm	0.76 Ám	30 Áin	UL94 V-0	110 VDC	5 A	2.54 mm	0.1 in	4.83 mm	0.19 in		Male Pin	Gold or Gold GXT™
