TPS54335-2A Series

4.5V to 28V Input, 3A, Synchronous, Step-Down Converter with Eco-mode in alternative DRC package

Catalog

4.5V to 28V Input, 3A, Synchronous, Step-Down Converter with Eco-mode in alternative DRC package

Part	Supplier Device Package	Voltage - Output (Max)	Output Configuration	Mounting Type	Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Number of Outputs	Frequency - Switching [Min]	Frequency - Switching [Max]	Output Type	Package / Case	Current - Output	Topology	Voltage - Output (Max) [Max]	Package / Case [y]	Package / Case [x]	Outputs and Type	Outputs and Type	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Main Purpose	Supplied Contents	Frequency - Switching	Utilized IC / Part	Board Type
Texas Instruments TPS54335-2ADRCR	10-VSON (3x3)	24 V	Positive	Surface Mount	Step-Down	150 °C	-40 °C	4.5 V	0.8 V	28 V	1	50 kHz	1.5 MHz	Adjustable	10-VFDFN Exposed Pad	3 A	Buck
Texas Instruments TPS54335DDAR	8-SO PowerPad		Positive	Surface Mount	Step-Down	85 °C	-40 °C	4.5 V	0.8 V	28 V	1	50 kHz	1.5 MHz	Adjustable	8-PowerSOIC	3 A	Buck	25 V	3.9 mm	0.154 in

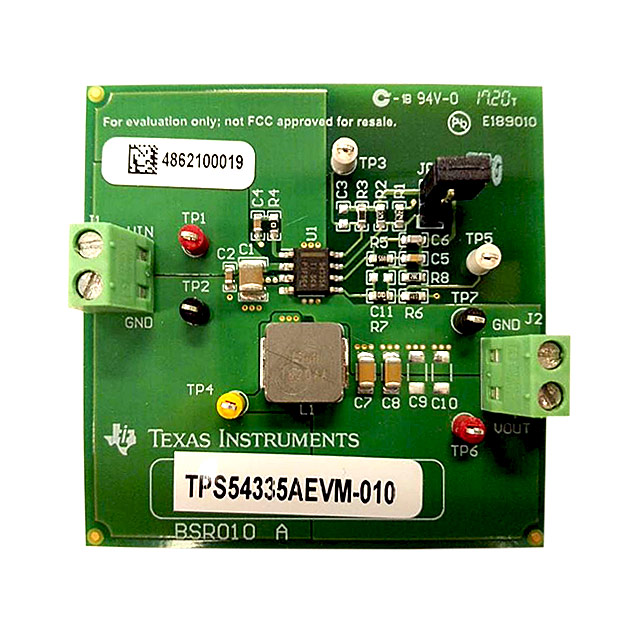

Texas Instruments TPS54335AEVM-010																3 A					Non-Isolated	1	Buck	28 V	8 V	5 V	DC/DC Step Down	Board(s)	340 kHz	TPS54335A	Fully Populated

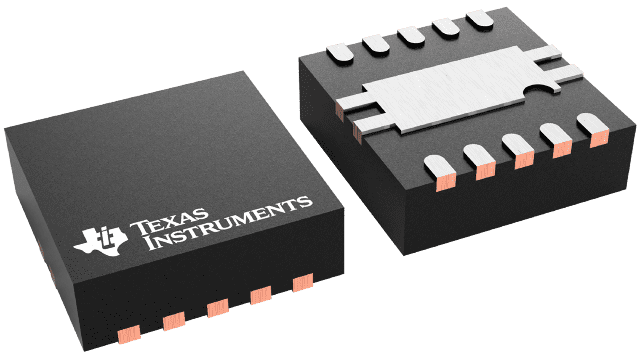

Texas Instruments TPS54335DRCR	10-VSON (3x3)		Positive	Surface Mount	Step-Down	85 °C	-40 °C	4.5 V	0.8 V	28 V	1	50 kHz	1.5 MHz	Adjustable	10-VFDFN Exposed Pad	3 A	Buck	25 V
Texas Instruments TPS54335-1ADRCR	10-VSON (3x3)	24 V	Positive	Surface Mount	Step-Down	85 °C	-40 °C	4.5 V	0.8 V	28 V	1	50 kHz	1.5 MHz	Adjustable	10-VFDFN Exposed Pad	3 A	Buck
Texas Instruments TPS54335ADRCT	10-VSON (3x3)	24 V	Positive	Surface Mount	Step-Down	150 °C	-40 °C	4.5 V	0.8 V	28 V	1	50 kHz	1.5 MHz	Adjustable	10-VFDFN Exposed Pad	3 A	Buck
Texas Instruments TPS54335ADRCR	10-VSON (3x3)	24 V	Positive	Surface Mount	Step-Down	150 °C	-40 °C	4.5 V	0.8 V	28 V	1	50 kHz	1.5 MHz	Adjustable	10-VFDFN Exposed Pad	3 A	Buck
Texas Instruments TPS54335-1ADRCT	10-VSON (3x3)	24 V	Positive	Surface Mount	Step-Down	85 °C	-40 °C	4.5 V	0.8 V	28 V	1	50 kHz	1.5 MHz	Adjustable	10-VFDFN Exposed Pad	3 A	Buck
Texas Instruments TPS54335-2ADRCT	10-VSON (3x3)	24 V	Positive	Surface Mount	Step-Down	150 °C	-40 °C	4.5 V	0.8 V	28 V	1	50 kHz	1.5 MHz	Adjustable	10-VFDFN Exposed Pad	2 A	Buck
Texas Instruments TPS54335ADDA	8-SO PowerPad	24 V	Positive	Surface Mount	Step-Down	150 °C	-40 °C	4.5 V	0.8 V	28 V	1	50 kHz	1.5 MHz	Adjustable	8-PowerSOIC	3 A	Buck		3.9 mm	0.154 in

Catalog

4.5V to 28V Input, 3A, Synchronous, Step-Down Converter with Eco-mode in alternative DRC package

Key Features

• Synchronous 128-mΩ and 84-mΩ MOSFETs for3-A Continuous Output CurrentTPS54335A: Internal 2-ms Soft-Start,50-kHz to 1.5-MHz Adjustable FrequencyTPS54336A: Adjustable Soft-Start,Fixed 340-kHz FrequencyLow 2-µA Shutdown, Quiescent Current0.8-V Voltage Reference with ±0.8%AccuracyCurrent Mode ControlMonotonic Startup into Pre-Biased OutputsPulse Skipping for Light-Load EfficiencyHiccup Mode Overcurrent ProtectionThermal Shutdown (TSD) andOvervoltage Transition Protection8-Pin SO PowerPAD and 10-Pin VSON PackagesSynchronous 128-mΩ and 84-mΩ MOSFETs for3-A Continuous Output CurrentTPS54335A: Internal 2-ms Soft-Start,50-kHz to 1.5-MHz Adjustable FrequencyTPS54336A: Adjustable Soft-Start,Fixed 340-kHz FrequencyLow 2-µA Shutdown, Quiescent Current0.8-V Voltage Reference with ±0.8%AccuracyCurrent Mode ControlMonotonic Startup into Pre-Biased OutputsPulse Skipping for Light-Load EfficiencyHiccup Mode Overcurrent ProtectionThermal Shutdown (TSD) andOvervoltage Transition Protection8-Pin SO PowerPAD and 10-Pin VSON Packages

Description

The TPS5433xA family of devices are synchronous converters with an input-voltage range of 4.5 to 28 V. These devices include an integrated low-side switching FET that eliminates the need for an external diode which reduces component count. Efficiency is maximized through the integrated 128-mΩ and 84-mΩ MOSFETs, low IQand pulse skipping at light loads. Using the enable pin, the shutdown supply current is reduced to 2 μA. This step-down (buck) converter provides accurate regulation for a variety of loads with a well-regulated voltage reference that is 1.5% over temperature. Cycle-by-cycle current limiting on the high-side MOSFET protects the TPS5433xA family of devices in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. A low-side sinking current-limit turns off the low-side MOSFET to prevent excessive reverse current. Hiccup protection is triggered if the overcurrent condition continues for longer than the preset time. Thermal shutdown disables the device when the die temperature exceeds the threshold and enables the device again after the built-in thermal hiccup time. The TPS5433xA family of devices are synchronous converters with an input-voltage range of 4.5 to 28 V. These devices include an integrated low-side switching FET that eliminates the need for an external diode which reduces component count. Efficiency is maximized through the integrated 128-mΩ and 84-mΩ MOSFETs, low IQand pulse skipping at light loads. Using the enable pin, the shutdown supply current is reduced to 2 μA. This step-down (buck) converter provides accurate regulation for a variety of loads with a well-regulated voltage reference that is 1.5% over temperature. Cycle-by-cycle current limiting on the high-side MOSFET protects the TPS5433xA family of devices in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. A low-side sinking current-limit turns off the low-side MOSFET to prevent excessive reverse current. Hiccup protection is triggered if the overcurrent condition continues for longer than the preset time. Thermal shutdown disables the device when the die temperature exceeds the threshold and enables the device again after the built-in thermal hiccup time.
