M22-634 Series

Catalog

CONN, RCPT, 8POS, 2ROW, 2MM ROHS COMPLIANT: YES

Part	Contact Shape	Applications	Contact Material	Insulation Material	Contact Finish Thickness - Mating	Voltage Rating	Termination	Connector Type	Contact Type	Insulation Height	Insulation Height	Insulation Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Material Flammability Rating	Number of Rows [custom]	Current Rating (Amps)	Contact Finish - Post	Number of Positions	Fastening Type	Pitch - Mating	Pitch - Mating

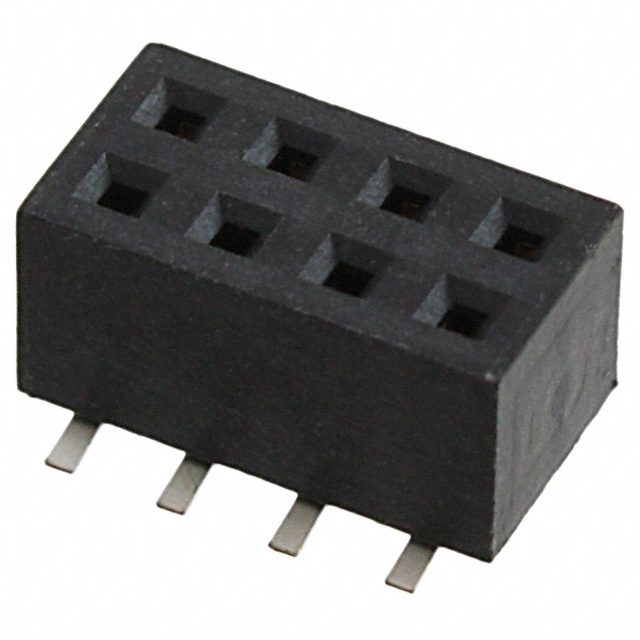

Harwin Inc. M22-6340442	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	500 VAC	Solder	Receptacle Bottom or Top Entry	Female Socket	4.3 mm	0.169 "	Black	Surface Mount	-40 C	105 ░C	All	2 mm	0.079 in	Gold	UL94 V-0	2	2 A	Tin	8	Push-Pull	0.079 "	2 mm
Harwin Inc. M22-6340342	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	500 VAC	Solder	Receptacle Bottom or Top Entry	Female Socket	4.3 mm	0.169 "	Black	Surface Mount	-40 C	105 ░C	All	2 mm	0.079 in	Gold	UL94 V-0	2	2 A	Tin	6	Push-Pull	0.079 "	2 mm
Harwin Inc. M22-6340342R	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	500 VAC	Solder	Receptacle Bottom or Top Entry	Female Socket	4.3 mm	0.169 "	Black	Surface Mount	-40 C	105 ░C	All	2 mm	0.079 in	Gold	UL94 V-0	2	2 A	Tin	6	Push-Pull	0.079 "	2 mm

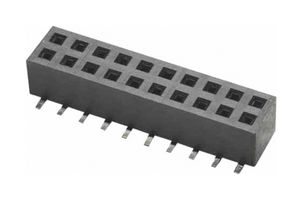

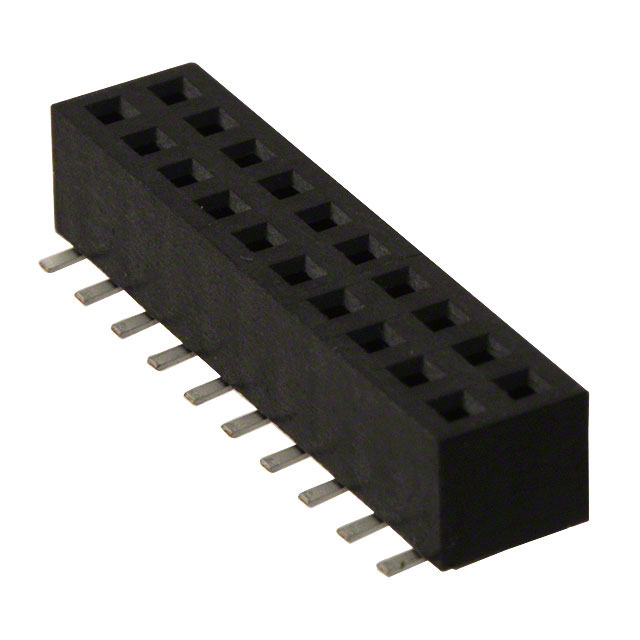

Harwin Inc. M22-6341042	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	500 VAC	Solder	Receptacle Bottom or Top Entry	Female Socket	4.3 mm	0.169 "	Black	Surface Mount	-40 C	105 ░C	All	2 mm	0.079 in	Gold	UL94 V-0	2	2 A	Tin	20	Push-Pull	0.079 "	2 mm
Harwin Inc. M22-6340542R	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	500 VAC	Solder	Receptacle Bottom or Top Entry	Female Socket	4.3 mm	0.169 "	Black	Surface Mount	-40 C	105 ░C	All	2 mm	0.079 in	Gold	UL94 V-0	2	2 A	Tin	10	Push-Pull	0.079 "	2 mm

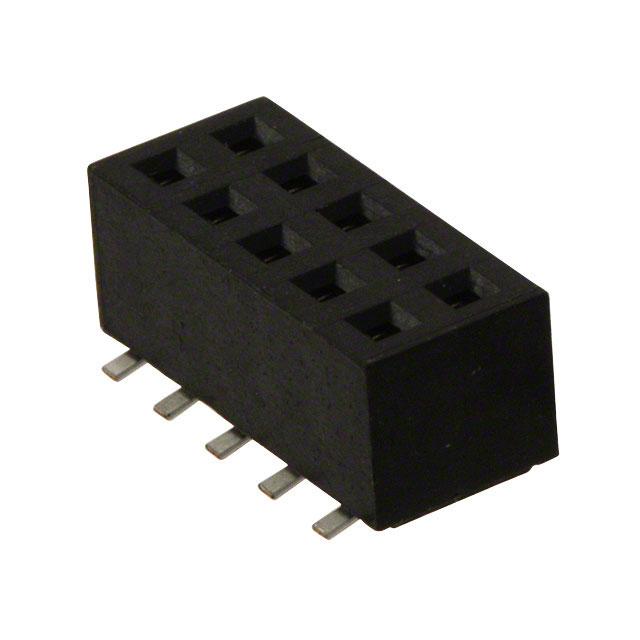

Harwin Inc. M22-6340542	Square	General Purpose Industrial Telecommunications	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	500 VAC	Solder	Receptacle Bottom or Top Entry	Female Socket	4.3 mm	0.169 "	Black	Surface Mount	-40 C	105 ░C	All	2 mm	0.079 in	Gold	UL94 V-0	2	2 A	Tin	10	Push-Pull	0.079 "	2 mm
