EXS82 Series

Catalog

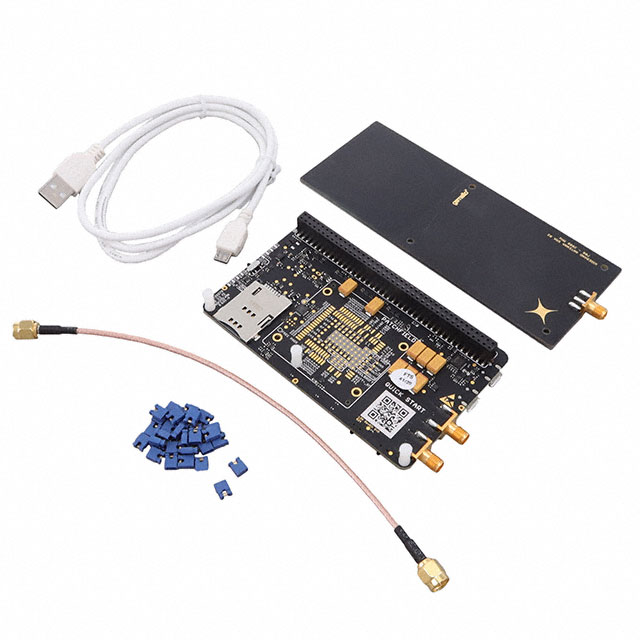

LPWAN DEV KIT WITH EXS82 MODULE

Part	Supplied Contents	Type	Contents	Frequency	Frequency	Mounting Type	Package / Case	Antenna Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Power - Output	Operating Temperature (Max)	Operating Temperature (Min)	Utilized IC / Part	RF Family/Standard	Protocol	Current - Receiving	Data Rate	Serial Interfaces
Telit Cinterion DEVKIT EXS82-W LPWAN	Board(s)	Cellular	Board	1.7GHz 1.8GHz 1.9GHz 2.1GHz 700MHz 800MHz 850MHz 900MHz AWS	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz
Telit Cinterion EXS82-W REL.1.2 VZ				1.8GHz 1.9GHz 850MHz 900MHz	1.8 GHz 1.9 GHz 850 MHz 900 MHz	Surface Mount	Module	Antenna Not Included	2.6 V	4.8 V	20 dBm	90 °C	-40 °C	EXS82	Cellular Navigation	BeiDou Galileo GLONASS GNSS GPRS GPS LTE	770 µA	1.1 Mbps	I2C PWM SPI USB
Telit Cinterion EXS82-W REL.1.1				1.8GHz 1.9GHz 850MHz 900MHz	1.8 GHz 1.9 GHz 850 MHz 900 MHz	Surface Mount	Module	Antenna Not Included	2.6 V	4.8 V	20 dBm	90 °C	-40 °C	EXS82	Cellular Navigation	BeiDou Galileo GLONASS GNSS GPRS GPS LTE	770 µA	1.1 Mbps	I2C PWM SPI USB
Telit Cinterion EXS82-W REL.1.2				1.8GHz 1.9GHz 850MHz 900MHz	1.8 GHz 1.9 GHz 850 MHz 900 MHz	Surface Mount	Module	Antenna Not Included	2.6 V	4.8 V	20 dBm	90 °C	-40 °C	EXS82	Cellular Navigation	BeiDou Galileo GLONASS GNSS GPRS GPS LTE	770 µA	1.1 Mbps	I2C PWM SPI USB
